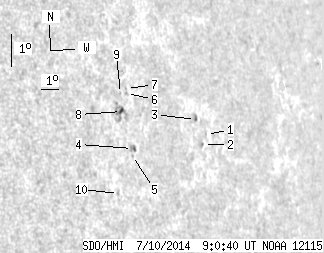

SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 26.89 | 1.66 | 23.15 | 8.01 | 251.69 | 55.02 | 277.09 | 0.8195 | 236.2 | 284.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.87 | 7.43 | 255.60 | 58.93 | 276.35 | 0.8566 | -524.0 | -376.5 | |
| 0.00 | 0.73 | 0.00 | 0.69 | 7.13 | 255.35 | 58.68 | 276.01 | 0.8544 | -447.0 | -443.9 | |
| 0.45 | 2.00 | 0.43 | 1.88 | 7.92 | 255.05 | 58.38 | 276.93 | 0.8517 | -433.8 | -389.2 | |
| 0.00 | 3.45 | 0.00 | 2.95 | 7.23 | 251.37 | 54.70 | 276.14 | 0.8165 | 824.0 | 576.4 | |
| 0.00 | 0.82 | 0.00 | 0.70 | 7.02 | 251.33 | 54.66 | 275.88 | 0.8161 | 520.0 | 433.4 | |
| 0.00 | 1.18 | 0.00 | 1.01 | 8.92 | 251.39 | 54.72 | 278.22 | 0.8170 | 513.0 | 421.1 | |
| 0.00 | 0.45 | 0.00 | 0.39 | 9.08 | 251.43 | 54.76 | 278.40 | 0.8174 | 364.0 | 281.2 | |
| 1.45 | 15.17 | 1.23 | 12.83 | 8.39 | 251.01 | 54.34 | 277.57 | 0.8130 | 653.2 | 345.2 | |
| 0.00 | 0.73 | 0.00 | 0.62 | 8.94 | 251.08 | 54.41 | 278.25 | 0.8138 | 529.0 | 483.5 | |
| 0.00 | 1.45 | 0.00 | 1.21 | 5.91 | 250.41 | 53.74 | 274.50 | 0.8068 | 556.0 | 389.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
