SDO HMI 2014-07-10 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.80 | 104.66 | 32.02 | 179.99 | -11.89 | 267.95 | 71.83 | 256.32 | 0.9580 | -30.0 | -81.2 | |
|
previous
or next observation for the same group /

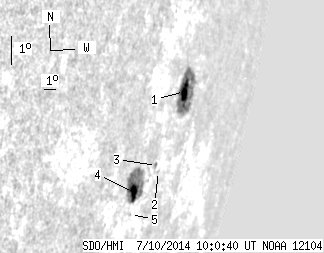

back to the solar disc SDO HMI 2014-07-10 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.81 | 55.78 | 17.93 | 103.04 | -10.63 | 269.26 | 73.14 | 257.81 | 0.9635 | 329.0 | 20.3 | |
| 0.00 | 0.91 | 0.00 | 1.58 | -13.07 | 268.16 | 72.04 | 255.14 | 0.9599 | 317.0 | 288.5 | |
| 0.00 | 1.73 | 0.00 | 2.93 | -12.86 | 267.81 | 71.69 | 255.31 | 0.9581 | 426.0 | 381.2 | |
| 8.99 | 45.60 | 14.09 | 71.43 | -13.60 | 266.09 | 69.97 | 254.28 | 0.9500 | -530.8 | -262.6 | |
| 0.00 | 0.64 | 0.00 | 1.01 | -14.31 | 266.30 | 70.18 | 253.58 | 0.9517 | -214.0 | -255.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
