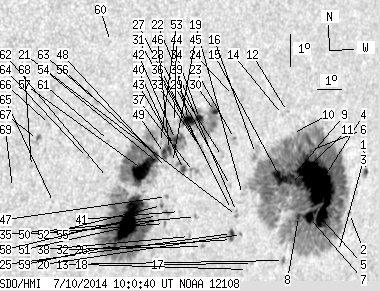

SDO HMI 2014-07-10 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 265.82 | 1467.18 | 190.23 | 1050.86 | -7.05 | 241.27 | 45.15 | 256.38 | 0.7247 | 119.4 | 88.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 4.18 | 1.30 | 3.32 | -6.85 | 246.52 | 50.40 | 258.07 | 0.7841 | -129.8 | 17.0 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -8.13 | 245.94 | 49.82 | 256.33 | 0.7807 | 216.0 | 25.8 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -9.29 | 245.63 | 49.51 | 254.78 | 0.7800 | -284.0 | -217.8 | |
| 109.92 | 816.50 | 83.60 | 614.07 | -7.23 | 244.30 | 48.18 | 257.04 | 0.7609 | 1119.7 | 385.7 | |
| 1.09 | -4.00 | 0.83 | -4.00 | -7.98 | 244.32 | 48.20 | 256.09 | 0.7628 | 869.2 | 999999 | |
| 0.91 | -4.00 | 0.68 | -4.00 | -6.06 | 243.83 | 47.70 | 258.45 | 0.7530 | 683.5 | 999999 | |
| 7.72 | -4.00 | 5.87 | -4.00 | -8.15 | 244.07 | 47.94 | 255.80 | 0.7604 | 1036.0 | 999999 | |
| 2.54 | -4.00 | 1.91 | -4.00 | -8.09 | 243.55 | 47.43 | 255.73 | 0.7546 | 952.5 | 999999 | |
| 1.54 | -4.00 | 1.15 | -4.00 | -6.83 | 243.10 | 46.98 | 257.26 | 0.7465 | 1085.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -5.49 | 242.95 | 46.83 | 258.99 | 0.7418 | 206.0 | 244.0 | |
| 1.09 | -4.00 | 0.81 | -4.00 | -7.04 | 243.04 | 46.92 | 256.96 | 0.7463 | 1035.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -4.80 | 242.66 | 46.54 | 259.84 | 0.7371 | -390.0 | -352.4 | |
| 0.64 | 2.45 | 0.48 | 1.84 | -9.44 | 243.09 | 46.97 | 253.84 | 0.7530 | 502.4 | 425.2 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -4.88 | 242.44 | 46.32 | 259.69 | 0.7347 | -177.0 | -160.6 | |
| 12.17 | -4.00 | 8.94 | -4.00 | -6.83 | 242.56 | 46.44 | 257.11 | 0.7404 | 1162.4 | 999999 | |
| 0.00 | 8.36 | 0.00 | 5.99 | -6.03 | 241.36 | 45.24 | 257.86 | 0.7246 | 349.0 | 450.7 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -9.47 | 241.70 | 45.58 | 253.37 | 0.7376 | 739.0 | 661.4 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -9.64 | 241.51 | 45.39 | 253.07 | 0.7359 | 635.0 | 455.2 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -7.28 | 240.94 | 44.82 | 256.05 | 0.7227 | 307.0 | 284.8 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -8.53 | 241.07 | 44.95 | 254.40 | 0.7276 | -675.0 | -541.2 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -7.92 | 240.76 | 44.64 | 255.12 | 0.7224 | -440.0 | -344.2 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -7.80 | 240.75 | 44.63 | 255.29 | 0.7219 | -401.0 | -331.8 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -5.52 | 240.40 | 44.28 | 258.30 | 0.7120 | 629.0 | 515.2 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -4.19 | 240.25 | 44.13 | 260.12 | 0.7072 | 576.0 | 446.1 | |
| 2.09 | 7.90 | 1.49 | 5.64 | -8.48 | 240.63 | 44.50 | 254.33 | 0.7224 | 848.8 | 632.9 | |
| 1.00 | -25.00 | 0.71 | -25.00 | -8.66 | 240.65 | 44.53 | 254.09 | 0.7232 | 861.8 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -7.72 | 240.52 | 44.40 | 255.32 | 0.7190 | -293.0 | -343.5 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -6.97 | 240.38 | 44.26 | 256.30 | 0.7154 | -466.0 | -405.3 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -6.05 | 239.94 | 43.82 | 257.44 | 0.7077 | 491.0 | 424.0 | |
| 2.45 | 78.58 | 1.69 | 53.81 | -4.65 | 239.52 | 43.40 | 259.29 | 0.6992 | 717.3 | 6.1 | |
| 0.00 | 2.00 | 0.00 | 1.38 | -6.18 | 239.36 | 43.24 | 257.09 | 0.7010 | 287.0 | 249.0 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -8.82 | 239.43 | 43.31 | 253.45 | 0.7094 | -452.0 | -320.3 | |
| 0.00 | 3.63 | 0.00 | 2.50 | -5.76 | 239.02 | 42.90 | 257.58 | 0.6958 | -199.0 | -160.9 | |
| 4.81 | -30.00 | 3.29 | -30.00 | -4.83 | 238.86 | 42.74 | 258.86 | 0.6915 | -557.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.45 | -7.87 | 239.00 | 42.88 | 254.62 | 0.7014 | -486.0 | -334.0 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -5.35 | 238.73 | 42.61 | 258.08 | 0.6912 | -188.0 | -258.6 | |
| 0.00 | 6.27 | 0.00 | 4.30 | -6.46 | 238.76 | 42.64 | 256.51 | 0.6944 | -176.0 | -223.7 | |
| 0.00 | 3.00 | 0.00 | 2.08 | -8.48 | 238.83 | 42.71 | 253.71 | 0.7012 | -386.0 | -339.1 | |
| 10.27 | -30.00 | 6.97 | -30.00 | -4.87 | 238.40 | 42.28 | 258.68 | 0.6860 | -834.7 | 999999 | |
| 2.63 | 7.99 | 1.80 | 5.44 | -6.38 | 238.33 | 42.21 | 256.50 | 0.6890 | -552.8 | -429.2 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -7.68 | 238.31 | 42.19 | 254.65 | 0.6925 | -338.0 | -266.8 | |
| 3.82 | 201.58 | 2.57 | 134.06 | -5.43 | 237.91 | 41.79 | 257.72 | 0.6812 | -756.7 | -504.4 | |
| 1.91 | -42.00 | 1.29 | -42.00 | -5.62 | 237.89 | 41.77 | 257.45 | 0.6814 | -684.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -4.90 | 237.83 | 41.71 | 258.46 | 0.6788 | -382.0 | -336.8 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -6.14 | 237.85 | 41.73 | 256.69 | 0.6824 | -522.0 | -431.4 | |
| 3.82 | -42.00 | 2.57 | -42.00 | -5.73 | 237.69 | 41.57 | 257.23 | 0.6793 | -747.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.17 | -7.19 | 237.71 | 41.59 | 255.14 | 0.6837 | -617.0 | -498.2 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -6.28 | 237.62 | 41.50 | 256.41 | 0.6799 | -481.0 | -391.6 | |
| 4.54 | -42.00 | 3.05 | -42.00 | -5.85 | 237.50 | 41.37 | 257.00 | 0.6771 | -840.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.23 | -8.03 | 237.73 | 41.61 | 253.96 | 0.6865 | -221.0 | -178.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -7.87 | 237.71 | 41.59 | 254.17 | 0.6857 | -366.0 | -330.7 | |
| 0.64 | 6.90 | 0.43 | 4.68 | -7.46 | 237.54 | 41.42 | 254.70 | 0.6823 | -585.3 | -384.4 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -5.50 | 237.30 | 41.18 | 257.45 | 0.6737 | -479.0 | -543.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -6.18 | 237.32 | 41.20 | 256.46 | 0.6759 | -49.0 | -125.7 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -7.76 | 237.41 | 41.29 | 254.22 | 0.6817 | -528.0 | -381.8 | |
| 2.36 | -42.00 | 1.58 | -42.00 | -5.86 | 237.13 | 41.01 | 256.86 | 0.6726 | -763.3 | 999999 | |
| 30.98 | -42.00 | 20.56 | -42.00 | -6.30 | 236.64 | 40.52 | 256.06 | 0.6677 | -1016.6 | 999999 | |
| 53.60 | 266.81 | 35.58 | 176.84 | -7.84 | 236.28 | 40.16 | 253.69 | 0.6679 | -1107.0 | -431.8 | |
| 1.64 | -58.00 | 1.08 | -58.00 | -8.62 | 235.77 | 39.65 | 252.35 | 0.6643 | -818.2 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -2.29 | 235.12 | 39.00 | 261.67 | 0.6377 | -540.0 | -470.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -5.34 | 235.20 | 39.08 | 257.01 | 0.6464 | -766.0 | -614.4 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -6.49 | 235.26 | 39.14 | 255.30 | 0.6506 | -663.0 | -577.5 | |
| 0.00 | 2.63 | 0.00 | 1.69 | -4.12 | 234.65 | 38.53 | 258.71 | 0.6358 | -621.0 | -576.9 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -5.83 | 234.41 | 38.29 | 255.99 | 0.6376 | -625.0 | -539.2 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -7.17 | 233.21 | 37.09 | 253.45 | 0.6264 | -677.0 | -494.6 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -4.75 | 232.87 | 36.74 | 257.13 | 0.6138 | -686.0 | -601.1 | |
| 0.00 | 4.09 | 0.00 | 2.55 | -5.19 | 232.44 | 36.31 | 256.26 | 0.6094 | -910.0 | -656.0 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -6.02 | 232.27 | 36.14 | 254.87 | 0.6098 | -726.0 | -651.3 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -6.64 | 231.59 | 35.47 | 253.59 | 0.6031 | -675.0 | -500.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
