SDO HMI 2014-07-10 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 19.45 | 1.88 | 17.16 | 7.81 | 252.17 | 56.05 | 276.83 | 0.8294 | 211.1 | 197.3 | |
|
previous
or next observation for the same group /

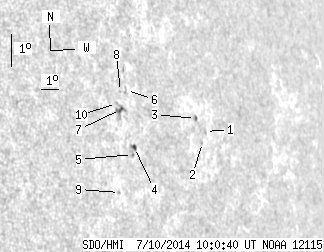

back to the solar disc SDO HMI 2014-07-10 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.76 | 7.49 | 255.60 | 59.48 | 276.42 | 0.8615 | -417.0 | -328.2 | |
| 0.00 | 0.73 | 0.00 | 0.70 | 7.16 | 255.35 | 59.23 | 276.05 | 0.8593 | -542.0 | -450.6 | |
| 0.00 | 2.00 | 0.00 | 1.91 | 7.92 | 255.10 | 58.98 | 276.93 | 0.8571 | -461.0 | -434.0 | |
| 1.00 | 3.09 | 0.87 | 2.68 | 7.23 | 251.47 | 55.35 | 276.13 | 0.8229 | 470.5 | 429.7 | |
| 0.00 | 1.73 | 0.00 | 1.49 | 7.02 | 251.32 | 55.20 | 275.88 | 0.8214 | 387.0 | 403.5 | |
| 0.00 | 0.73 | 0.00 | 0.63 | 8.99 | 251.40 | 55.28 | 278.27 | 0.8225 | 441.0 | 422.6 | |
| 1.18 | 7.72 | 1.01 | 6.61 | 8.43 | 250.95 | 54.83 | 277.60 | 0.8179 | 683.5 | 445.8 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 8.97 | 251.07 | 54.95 | 278.27 | 0.8193 | 539.0 | 476.0 | |
| 0.00 | 1.09 | 0.00 | 0.92 | 5.91 | 250.44 | 54.32 | 274.51 | 0.8127 | 474.0 | 379.1 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 8.62 | 250.78 | 54.65 | 277.84 | 0.8162 | 565.0 | 586.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
