SDO HMI 2014-07-10 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.44 | 98.64 | 30.63 | 175.52 | -11.82 | 267.99 | 72.42 | 256.47 | 0.9607 | -8.3 | -76.9 | |
|
previous
or next observation for the same group /

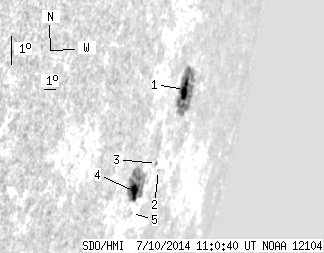

back to the solar disc SDO HMI 2014-07-10 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.17 | 54.59 | 17.31 | 104.20 | -10.60 | 269.25 | 73.68 | 257.91 | 0.9659 | 352.8 | 16.4 | |
| 0.00 | 0.27 | 0.00 | 0.49 | -13.07 | 268.14 | 72.56 | 255.21 | 0.9624 | 316.0 | 310.0 | |
| 0.00 | 1.00 | 0.00 | 1.75 | -12.83 | 267.75 | 72.17 | 255.41 | 0.9604 | 386.0 | 341.5 | |
| 8.27 | 41.69 | 13.32 | 67.29 | -13.60 | 266.10 | 70.53 | 254.36 | 0.9529 | -522.4 | -241.8 | |
| 0.00 | 1.09 | 0.00 | 1.79 | -14.32 | 266.32 | 70.75 | 253.66 | 0.9546 | -128.0 | -143.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
