SDO HMI 2014-07-10 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 255.06 | 1519.34 | 143.75 | 852.11 | -7.88 | 221.29 | 25.72 | 245.35 | 0.4748 | 780.3 | 313.7 | |
|
previous
or next observation for the same group /

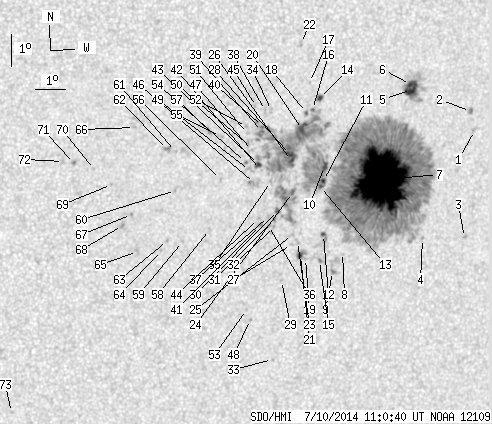

back to the solar disc SDO HMI 2014-07-10 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.37 | -6.60 | 225.03 | 29.45 | 250.52 | 0.5202 | 664.0 | 506.3 | |
| 0.00 | 3.00 | 0.00 | 1.73 | -6.01 | 224.85 | 29.28 | 251.50 | 0.5149 | 951.0 | 786.8 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -9.93 | 224.94 | 29.37 | 244.56 | 0.5370 | 781.0 | 631.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -9.91 | 223.46 | 27.89 | 243.45 | 0.5171 | -292.0 | -308.8 | |
| 11.17 | 36.24 | 6.31 | 20.48 | -5.26 | 222.76 | 27.18 | 251.64 | 0.4813 | 872.7 | 72.9 | |
| 3.27 | -5.00 | 1.84 | -5.00 | -5.10 | 222.71 | 27.14 | 251.93 | 0.4799 | 1156.4 | 999999 | |
| 204.29 | 1358.02 | 115.54 | 762.78 | -8.02 | 221.92 | 26.35 | 245.66 | 0.4843 | 1565.9 | 389.8 | |
| 0.00 | 0.55 | 0.00 | 0.31 | -10.26 | 220.72 | 25.15 | 240.39 | 0.4829 | 55.0 | 155.2 | |
| 0.45 | 10.81 | 0.26 | 6.11 | -10.85 | 220.43 | 24.85 | 239.03 | 0.4834 | -680.8 | -252.0 | |
| 4.09 | -7.00 | 2.27 | -7.00 | -7.55 | 219.91 | 24.34 | 244.85 | 0.4532 | 1104.0 | 999999 | |
| 1.82 | -7.00 | 1.01 | -7.00 | -7.99 | 219.90 | 24.33 | 243.97 | 0.4560 | 1256.4 | 999999 | |
| 1.27 | 5.36 | 0.71 | 3.01 | -9.68 | 220.02 | 24.45 | 240.80 | 0.4693 | 944.0 | 609.8 | |
| 1.27 | -7.00 | 0.71 | -7.00 | -8.17 | 219.81 | 24.24 | 243.52 | 0.4559 | 1146.0 | 999999 | |
| 2.36 | 3.82 | 1.30 | 2.10 | -5.44 | 219.64 | 24.06 | 249.02 | 0.4366 | -837.2 | -662.2 | |
| 0.36 | 2.09 | 0.20 | 1.17 | -10.49 | 219.95 | 24.38 | 239.21 | 0.4744 | -728.5 | -625.4 | |
| 0.45 | -7.00 | 0.25 | -7.00 | -5.77 | 219.42 | 23.84 | 248.12 | 0.4352 | -675.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -4.93 | 219.28 | 23.71 | 249.83 | 0.4286 | -569.0 | -424.3 | |
| 0.73 | 1.73 | 0.40 | 0.95 | -5.86 | 219.22 | 23.65 | 247.77 | 0.4328 | -831.2 | -667.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -10.41 | 219.47 | 23.90 | 238.85 | 0.4674 | -427.0 | -366.0 | |
| 6.81 | -7.00 | 3.74 | -7.00 | -6.38 | 219.11 | 23.54 | 246.55 | 0.4344 | -81.6 | 999999 | |
| 2.73 | 6.36 | 1.52 | 3.55 | -10.31 | 219.29 | 23.72 | 238.85 | 0.4643 | -748.7 | -53.4 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -3.72 | 218.94 | 23.37 | 252.29 | 0.4173 | -502.0 | -616.4 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -9.87 | 219.15 | 23.58 | 239.55 | 0.4591 | -476.0 | -475.4 | |
| 1.18 | -7.00 | 0.65 | -7.00 | -8.33 | 218.88 | 23.31 | 242.29 | 0.4441 | 1215.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -9.65 | 218.97 | 23.40 | 239.78 | 0.4549 | -632.0 | -490.8 | |
| 2.54 | -7.00 | 1.40 | -7.00 | -7.33 | 218.79 | 23.22 | 244.25 | 0.4359 | 1137.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -9.96 | 218.96 | 23.39 | 239.17 | 0.4572 | -558.0 | -455.1 | |
| 4.72 | -7.00 | 2.60 | -7.00 | -7.15 | 218.75 | 23.17 | 244.60 | 0.4341 | 1310.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -11.08 | 218.71 | 23.14 | 236.79 | 0.4628 | -608.0 | -464.6 | |
| 1.64 | 3.45 | 0.90 | 1.90 | -8.88 | 218.41 | 22.84 | 240.70 | 0.4416 | -715.1 | -508.5 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -9.16 | 218.33 | 22.76 | 240.06 | 0.4426 | -832.0 | -666.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -9.38 | 218.35 | 22.77 | 239.64 | 0.4445 | -706.0 | -564.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -13.59 | 218.64 | 23.06 | 232.28 | 0.4833 | -653.0 | -535.5 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -5.76 | 218.05 | 22.48 | 246.93 | 0.4152 | -595.0 | -560.6 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -7.97 | 218.12 | 22.55 | 242.26 | 0.4309 | -284.0 | -191.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -9.34 | 218.14 | 22.57 | 239.49 | 0.4414 | -832.0 | -714.0 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -9.06 | 218.12 | 22.55 | 240.03 | 0.4390 | -792.0 | -640.4 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -5.76 | 217.85 | 22.28 | 246.76 | 0.4122 | -783.0 | -576.0 | |
| 0.73 | -7.00 | 0.40 | -7.00 | -6.41 | 217.78 | 22.21 | 245.25 | 0.4153 | -1019.6 | 999999 | |
| 0.55 | -7.00 | 0.30 | -7.00 | -6.25 | 217.77 | 22.20 | 245.58 | 0.4142 | -976.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -9.33 | 217.87 | 22.30 | 239.20 | 0.4377 | -933.0 | -803.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.58 | 217.77 | 22.20 | 242.69 | 0.4232 | -336.0 | -411.1 | |
| 2.63 | -7.00 | 1.44 | -7.00 | -7.43 | 217.69 | 22.12 | 242.94 | 0.4211 | -732.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.11 | 217.79 | 22.22 | 239.56 | 0.4349 | -834.0 | -677.8 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -5.63 | 217.55 | 21.97 | 246.77 | 0.4070 | -647.0 | -694.0 | |
| 0.00 | 6.90 | 0.00 | 3.77 | -8.01 | 217.59 | 22.02 | 241.59 | 0.4239 | 88.0 | -88.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -6.99 | 217.47 | 21.90 | 243.66 | 0.4148 | -615.0 | -410.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -12.29 | 217.77 | 22.20 | 233.49 | 0.4611 | -773.0 | -661.2 | |
| 0.00 | 4.27 | 0.00 | 2.33 | -7.61 | 217.40 | 21.83 | 242.25 | 0.4183 | -476.0 | -510.8 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -6.80 | 217.30 | 21.73 | 243.90 | 0.4110 | -772.0 | -660.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.45 | 217.28 | 21.71 | 244.64 | 0.4085 | -754.0 | -608.9 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -6.24 | 217.24 | 21.67 | 245.09 | 0.4064 | -945.0 | -621.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -11.97 | 217.60 | 22.03 | 233.87 | 0.4562 | -834.0 | -637.8 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -7.35 | 217.26 | 21.69 | 242.64 | 0.4144 | -856.0 | -723.6 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -6.52 | 216.40 | 20.83 | 243.54 | 0.3962 | -647.0 | -604.7 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -7.86 | 216.46 | 20.89 | 240.64 | 0.4069 | -818.0 | -659.1 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -6.36 | 216.03 | 20.46 | 243.51 | 0.3898 | -1033.0 | -854.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.41 | 216.18 | 20.61 | 237.03 | 0.4157 | -811.0 | -689.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -9.77 | 215.32 | 19.75 | 235.17 | 0.4073 | -815.0 | -575.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -8.17 | 215.00 | 19.43 | 238.16 | 0.3892 | -927.0 | -754.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.95 | 214.94 | 19.37 | 240.84 | 0.3787 | -655.0 | -547.2 | |
| 0.00 | 3.45 | 0.00 | 1.84 | -6.88 | 214.68 | 19.11 | 240.66 | 0.3744 | -941.0 | -805.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -9.72 | 214.82 | 19.25 | 234.58 | 0.4004 | -844.0 | -681.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.03 | 214.64 | 19.07 | 233.69 | 0.4010 | -747.0 | -612.6 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -10.05 | 213.86 | 18.29 | 232.52 | 0.3910 | -733.0 | -494.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.18 | 213.59 | 18.01 | 240.93 | 0.3533 | -741.0 | -572.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.88 | 213.60 | 18.03 | 234.61 | 0.3767 | -930.0 | -773.2 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -9.22 | 213.33 | 17.76 | 233.46 | 0.3763 | -982.0 | -757.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.93 | 212.91 | 17.34 | 235.71 | 0.3588 | -796.0 | -535.5 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -7.45 | 212.34 | 16.77 | 235.97 | 0.3468 | -747.0 | -596.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -7.25 | 211.70 | 16.12 | 235.40 | 0.3361 | -970.0 | -894.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -7.18 | 211.34 | 15.77 | 234.98 | 0.3307 | -815.0 | -718.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -15.08 | 210.08 | 14.51 | 216.87 | 0.4048 | -780.0 | -597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
