SDO HMI 2014-07-10 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.44 | 0.00 | 9.36 | -24.08 | 196.79 | 1.22 | 184.63 | 0.4848 | 132.9 | 13.4 | |
|
previous
or next observation for the same group /

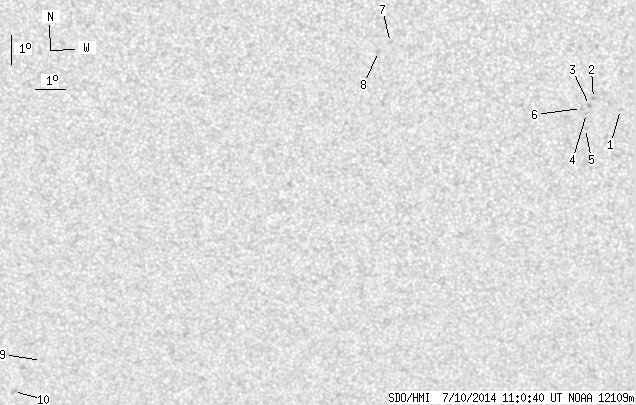

back to the solar disc SDO HMI 2014-07-10 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.96 | 204.53 | 8.96 | 198.38 | 0.4599 | 483.0 | 461.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.57 | 203.61 | 8.04 | 196.87 | 0.4499 | 761.0 | 634.8 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -21.81 | 203.49 | 7.92 | 196.47 | 0.4529 | 908.0 | 735.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -22.08 | 203.40 | 7.83 | 196.13 | 0.4565 | 601.0 | 436.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.59 | 203.40 | 7.83 | 195.79 | 0.4641 | 668.0 | 479.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.91 | 203.23 | 7.66 | 195.90 | 0.4532 | 699.0 | 457.9 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -19.65 | 196.91 | 1.34 | 183.17 | 0.4011 | -790.0 | -606.9 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -19.95 | 196.53 | 0.96 | 182.22 | 0.4056 | -626.0 | -542.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -30.83 | 184.57 | -11.00 | 163.91 | 0.5934 | -666.0 | -592.8 | |
| 0.00 | 2.91 | 0.00 | 1.82 | -32.01 | 183.40 | -12.17 | 162.99 | 0.6135 | -709.0 | -499.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
