SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.89 | 95.47 | 30.73 | 175.25 | -11.89 | 267.98 | 72.96 | 256.48 | 0.9632 | 0.3 | -97.3 | |
|
previous
or next observation for the same group /

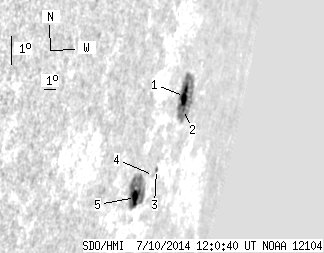

back to the solar disc SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.90 | 51.05 | 17.39 | 101.21 | -10.64 | 269.28 | 74.26 | 257.94 | 0.9684 | 323.7 | -20.9 | |
| 0.27 | -1.00 | 0.54 | -1.00 | -11.06 | 269.45 | 74.43 | 257.53 | 0.9694 | 290.0 | 999999 | |
| 0.00 | 1.73 | 0.00 | 3.12 | -12.83 | 267.71 | 72.69 | 255.48 | 0.9628 | 389.0 | 332.3 | |
| 0.00 | 0.27 | 0.00 | 0.49 | -13.01 | 267.52 | 72.50 | 255.27 | 0.9620 | 292.0 | 319.0 | |
| 7.72 | 42.42 | 12.80 | 70.43 | -13.61 | 266.13 | 71.10 | 254.45 | 0.9558 | -504.4 | -234.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
