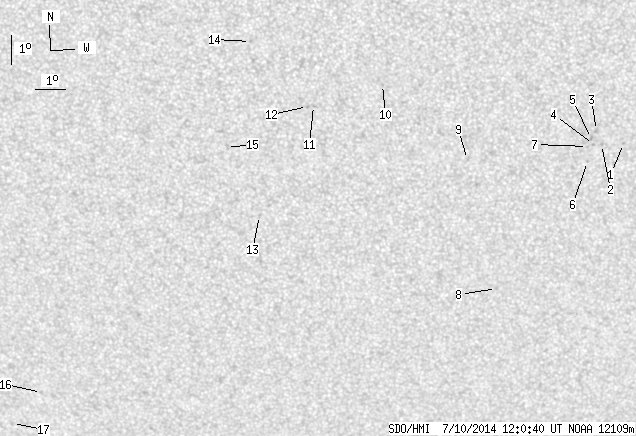

SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.71 | 0.00 | 10.55 | -23.50 | 197.11 | 2.09 | 185.32 | 0.4743 | -35.8 | 24.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.00 | 204.58 | 9.56 | 199.48 | 0.4635 | 619.0 | 415.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.02 | 203.85 | 8.82 | 198.08 | 0.4602 | 776.0 | 606.1 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -21.55 | 203.65 | 8.63 | 198.05 | 0.4523 | 774.0 | 646.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.02 | 203.58 | 8.56 | 197.57 | 0.4589 | 645.0 | 560.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.81 | 203.50 | 8.48 | 197.56 | 0.4555 | 905.0 | 700.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.59 | 203.41 | 8.39 | 196.86 | 0.4666 | 632.0 | 509.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -22.08 | 203.38 | 8.36 | 197.15 | 0.4590 | 546.0 | 515.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -26.98 | 200.58 | 5.56 | 189.56 | 0.5216 | -688.0 | -560.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.49 | 199.42 | 4.40 | 189.08 | 0.4511 | 633.0 | 563.1 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -19.95 | 196.59 | 1.57 | 183.65 | 0.4061 | -695.0 | -569.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.65 | 194.35 | -0.67 | 178.48 | 0.4166 | -734.0 | -547.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.68 | 194.15 | -0.87 | 178.05 | 0.4173 | -667.0 | -557.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -24.40 | 192.52 | -2.50 | 175.20 | 0.4769 | -730.0 | -505.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -18.52 | 192.34 | -2.69 | 173.34 | 0.3848 | -780.0 | -632.0 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -22.07 | 191.48 | -3.54 | 172.53 | 0.4426 | -475.0 | -555.7 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -30.79 | 184.56 | -10.46 | 164.64 | 0.5907 | -722.0 | -534.6 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -31.96 | 183.37 | -11.65 | 163.65 | 0.6109 | -648.0 | -536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
