SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.46 | 0.00 | 4.72 | -19.71 | 223.52 | 28.50 | 226.79 | 0.6196 | -515.9 | -428.0 | |
|
previous
or next observation for the same group /

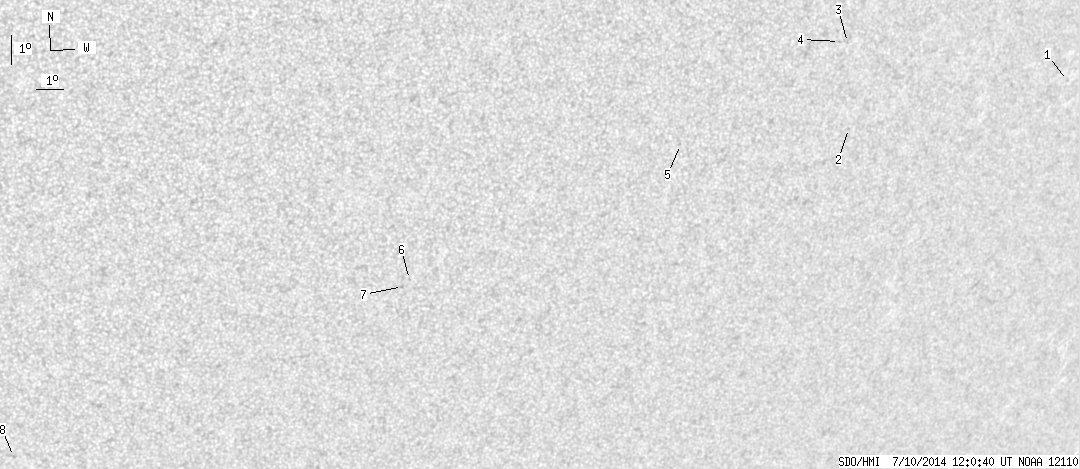

back to the solar disc SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.56 | -16.44 | 240.98 | 45.96 | 244.62 | 0.7654 | 472.0 | 427.8 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -17.57 | 231.93 | 36.91 | 238.39 | 0.6746 | -499.0 | -417.5 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -14.76 | 231.29 | 36.27 | 241.81 | 0.6513 | -577.0 | -503.0 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -14.71 | 230.97 | 35.95 | 241.67 | 0.6473 | -644.0 | -584.9 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -17.83 | 225.51 | 30.49 | 233.24 | 0.6051 | -683.0 | -490.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -22.03 | 216.45 | 21.43 | 218.07 | 0.5513 | -680.0 | -519.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -22.27 | 216.24 | 21.22 | 217.52 | 0.5519 | -737.0 | -579.1 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -27.94 | 203.34 | 8.32 | 193.65 | 0.5436 | -779.0 | -655.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
