SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.43 | 0.00 | 8.95 | 17.97 | 198.46 | 3.44 | 347.08 | 0.2600 | -185.4 | -269.4 | |
|
previous
or next observation for the same group /

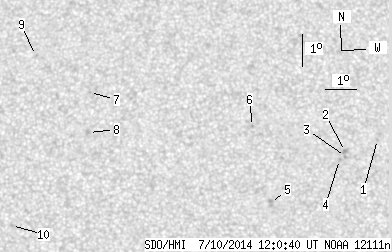

back to the solar disc SDO HMI 2014-07-10 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.42 | 18.42 | 203.27 | 8.25 | 331.64 | 0.2877 | -847.0 | -617.0 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 18.05 | 202.22 | 7.19 | 334.15 | 0.2743 | -911.0 | -747.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.89 | 202.21 | 7.19 | 333.90 | 0.2719 | -852.0 | -663.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.80 | 202.01 | 6.99 | 334.36 | 0.2690 | -866.0 | -765.2 | |
| 0.00 | 4.27 | 0.00 | 2.17 | 16.47 | 199.76 | 4.73 | 340.10 | 0.2336 | -842.0 | -671.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 18.86 | 199.24 | 4.22 | 344.96 | 0.2695 | -806.0 | -582.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 19.95 | 193.98 | -1.04 | 3.52 | 0.2790 | 781.0 | 603.8 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 18.69 | 193.96 | -1.06 | 3.93 | 0.2577 | 893.0 | 627.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 21.13 | 192.21 | -2.81 | 8.75 | 0.3018 | 793.0 | 520.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.77 | 191.53 | -3.49 | 15.84 | 0.2157 | 803.0 | 618.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
