SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.80 | 98.44 | 27.74 | 186.21 | -11.87 | 267.90 | 73.43 | 256.55 | 0.9653 | -29.2 | -77.7 | |
|
previous
or next observation for the same group /

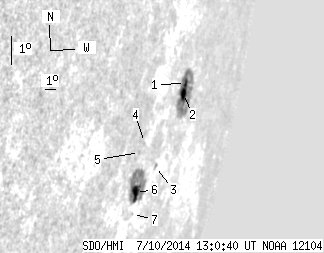

back to the solar disc SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.45 | 51.13 | 4.98 | 105.06 | -10.39 | 269.27 | 74.80 | 258.26 | 0.9706 | 262.1 | 3.4 | |
| 5.27 | -1.00 | 10.66 | -1.00 | -10.70 | 269.25 | 74.78 | 257.93 | 0.9706 | 353.6 | 999999 | |
| 0.00 | 2.27 | 0.00 | 4.23 | -12.89 | 267.64 | 73.17 | 255.48 | 0.9650 | 419.0 | 358.8 | |
| 0.00 | 0.73 | 0.00 | 1.22 | -12.02 | 265.88 | 71.41 | 256.14 | 0.9561 | -159.0 | -194.6 | |
| 0.00 | 1.54 | 0.00 | 2.54 | -12.31 | 265.58 | 71.11 | 255.79 | 0.9548 | -124.0 | -107.1 | |
| 7.08 | 42.50 | 12.10 | 72.69 | -13.61 | 266.07 | 71.60 | 254.52 | 0.9582 | -491.8 | -223.9 | |
| 0.00 | 0.27 | 0.00 | 0.47 | -14.32 | 266.31 | 71.84 | 253.82 | 0.9599 | -188.0 | -149.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
