SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 255.57 | 1561.92 | 145.41 | 884.20 | -7.89 | 221.26 | 26.79 | 246.21 | 0.4898 | 737.5 | 314.7 | |
|
previous
or next observation for the same group /

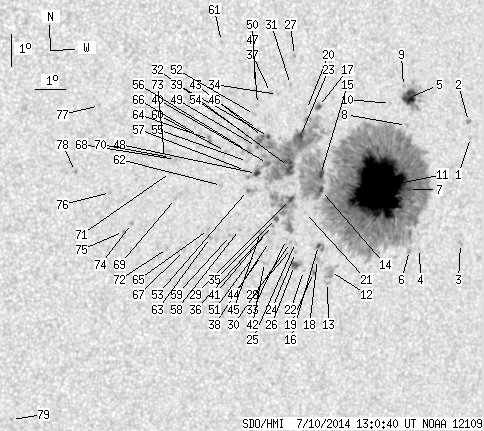

back to the solar disc SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.69 | -6.57 | 225.02 | 30.55 | 251.21 | 0.5355 | 724.0 | 586.2 | |
| 0.00 | 2.27 | 0.00 | 1.33 | -6.07 | 224.92 | 30.45 | 252.05 | 0.5318 | 916.0 | 754.8 | |
| 0.00 | 2.27 | 0.00 | 1.35 | -9.87 | 224.94 | 30.47 | 245.45 | 0.5513 | 706.0 | 646.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -9.98 | 223.49 | 29.02 | 244.22 | 0.5326 | -545.0 | -380.4 | |
| 14.17 | 35.69 | 8.08 | 20.38 | -5.26 | 222.80 | 28.33 | 252.34 | 0.4978 | 948.0 | 134.2 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -10.03 | 223.14 | 28.67 | 243.86 | 0.5283 | -358.0 | -248.7 | |
| 1.00 | 1403.99 | 0.58 | 795.76 | -8.11 | 222.94 | 28.47 | 247.10 | 0.5143 | 596.5 | 382.8 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -6.12 | 222.74 | 28.27 | 250.65 | 0.5010 | -464.0 | -487.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -4.91 | 222.57 | 28.10 | 252.88 | 0.4930 | 199.0 | 212.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -5.42 | 222.14 | 27.67 | 251.62 | 0.4892 | 787.0 | 650.8 | |
| 202.17 | -7.00 | 115.47 | -7.00 | -8.02 | 221.89 | 27.42 | 246.50 | 0.4992 | 1519.2 | 999999 | |
| 0.00 | 11.99 | 0.00 | 6.83 | -10.60 | 220.43 | 25.96 | 240.55 | 0.4962 | 58.0 | -42.3 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -10.94 | 220.36 | 25.89 | 239.87 | 0.4977 | -542.0 | -548.8 | |
| 2.00 | -7.00 | 1.12 | -7.00 | -8.05 | 219.93 | 25.46 | 244.85 | 0.4721 | 1274.6 | 999999 | |
| 4.09 | -7.00 | 2.29 | -7.00 | -7.55 | 219.86 | 25.39 | 245.77 | 0.4680 | 1064.2 | 999999 | |
| 1.09 | 5.36 | 0.62 | 3.03 | -9.77 | 219.95 | 25.48 | 241.62 | 0.4838 | 915.4 | 725.6 | |
| 1.63 | 2.82 | 0.91 | 1.56 | -5.44 | 219.68 | 25.21 | 249.90 | 0.4534 | -813.3 | -618.8 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -10.20 | 219.95 | 25.48 | 240.81 | 0.4870 | 668.0 | 411.9 | |
| 0.36 | 2.63 | 0.21 | 1.49 | -10.61 | 219.85 | 25.38 | 239.98 | 0.4885 | -674.2 | -460.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -5.52 | 219.28 | 24.81 | 249.43 | 0.4479 | -775.0 | -539.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.72 | 219.43 | 24.96 | 243.11 | 0.4695 | 736.0 | 569.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -10.54 | 219.50 | 25.03 | 239.77 | 0.4834 | -278.0 | -317.6 | |
| 5.27 | -7.00 | 2.92 | -7.00 | -6.32 | 219.11 | 24.64 | 247.63 | 0.4500 | -242.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -9.96 | 219.18 | 24.71 | 240.51 | 0.4749 | -514.0 | -424.0 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -9.65 | 219.15 | 24.68 | 241.08 | 0.4723 | -434.0 | -416.8 | |
| 3.18 | 8.17 | 1.79 | 4.61 | -10.37 | 219.18 | 24.71 | 239.76 | 0.4779 | -751.4 | -246.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -3.84 | 218.81 | 24.34 | 252.71 | 0.4325 | -915.0 | -756.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -9.83 | 219.03 | 24.56 | 240.61 | 0.4720 | -481.0 | -456.5 | |
| 2.54 | -7.00 | 1.42 | -7.00 | -8.30 | 218.89 | 24.42 | 243.43 | 0.4593 | 1133.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.64 | 218.98 | 24.51 | 240.92 | 0.4699 | -615.0 | -534.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -4.73 | 218.71 | 24.24 | 250.68 | 0.4353 | -703.0 | -588.1 | |
| 10.63 | -7.00 | 5.89 | -7.00 | -7.27 | 218.76 | 24.29 | 245.37 | 0.4507 | 1041.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -9.54 | 218.84 | 24.37 | 240.97 | 0.4673 | -519.0 | -509.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -5.03 | 218.28 | 23.81 | 249.71 | 0.4306 | -515.0 | -415.2 | |
| 1.36 | -7.00 | 0.76 | -7.00 | -8.88 | 218.45 | 23.98 | 241.87 | 0.4573 | -680.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.09 | 218.33 | 23.86 | 241.33 | 0.4571 | -699.0 | -619.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -4.96 | 218.05 | 23.58 | 249.67 | 0.4267 | -758.0 | -644.2 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -9.59 | 218.27 | 23.80 | 240.30 | 0.4599 | -563.0 | -412.3 | |
| 1.18 | -7.00 | 0.65 | -7.00 | -6.32 | 218.04 | 23.57 | 246.71 | 0.4344 | -641.2 | 999999 | |
| 1.18 | -7.00 | 0.65 | -7.00 | -7.15 | 218.05 | 23.58 | 244.96 | 0.4398 | 192.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -9.30 | 218.15 | 23.68 | 240.73 | 0.4561 | -727.0 | -689.1 | |
| 0.00 | 2.91 | 0.00 | 1.62 | -10.25 | 218.15 | 23.68 | 238.93 | 0.4633 | -529.0 | -481.8 | |
| 0.64 | -7.00 | 0.35 | -7.00 | -6.31 | 217.84 | 23.37 | 246.54 | 0.4315 | -912.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -10.02 | 218.03 | 23.56 | 239.23 | 0.4600 | -716.0 | -564.4 | |
| 0.00 | 3.00 | 0.00 | 1.66 | -9.30 | 217.94 | 23.47 | 240.53 | 0.4534 | -1002.0 | -737.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -6.09 | 217.66 | 23.19 | 246.86 | 0.4276 | -892.0 | -762.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.32 | 217.63 | 23.16 | 248.53 | 0.4225 | -761.0 | -596.6 | |
| 2.36 | -7.00 | 1.30 | -7.00 | -7.45 | 217.69 | 23.22 | 244.00 | 0.4368 | -767.4 | 999999 | |
| 0.36 | -7.00 | 0.20 | -7.00 | -6.61 | 217.65 | 23.18 | 245.72 | 0.4307 | -718.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -4.85 | 217.54 | 23.07 | 249.50 | 0.4186 | -787.0 | -558.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.95 | 217.82 | 23.35 | 239.14 | 0.4567 | -709.0 | -535.9 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -5.62 | 217.54 | 23.07 | 247.77 | 0.4230 | -807.0 | -684.0 | |
| 0.36 | 4.54 | 0.20 | 2.50 | -7.97 | 217.42 | 22.95 | 242.65 | 0.4366 | -677.2 | -121.8 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -6.26 | 217.33 | 22.86 | 246.18 | 0.4239 | -780.0 | -646.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -7.07 | 217.37 | 22.90 | 244.48 | 0.4297 | -547.0 | -495.0 | |
| 0.00 | 5.90 | 0.00 | 3.23 | -6.73 | 217.32 | 22.85 | 245.17 | 0.4267 | -629.0 | -650.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -7.35 | 217.32 | 22.85 | 243.85 | 0.4308 | -1012.0 | -844.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.18 | 217.23 | 22.76 | 240.00 | 0.4428 | -572.0 | -568.3 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -9.36 | 216.94 | 22.47 | 239.32 | 0.4403 | -795.0 | -604.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.74 | 216.62 | 22.15 | 244.45 | 0.4168 | -769.0 | -681.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -3.34 | 216.37 | 21.90 | 252.07 | 0.3931 | -668.0 | -570.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.79 | 216.54 | 22.07 | 242.11 | 0.4230 | -760.0 | -625.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.41 | 216.28 | 21.81 | 238.48 | 0.4317 | -941.0 | -710.6 | |
| 0.00 | 3.18 | 0.00 | 1.72 | -6.35 | 216.08 | 21.61 | 244.75 | 0.4063 | -932.0 | -826.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -9.16 | 216.19 | 21.72 | 238.89 | 0.4285 | -893.0 | -713.7 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -6.22 | 215.71 | 21.24 | 244.67 | 0.4001 | -776.0 | -579.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -9.79 | 215.44 | 20.97 | 236.70 | 0.4237 | -766.0 | -540.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -6.95 | 214.98 | 20.51 | 242.23 | 0.3948 | -432.0 | -473.2 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -8.16 | 215.04 | 20.57 | 239.62 | 0.4049 | -902.0 | -800.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -6.88 | 214.82 | 20.35 | 242.18 | 0.3920 | -777.0 | -680.3 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -7.35 | 214.84 | 20.37 | 241.16 | 0.3958 | -834.0 | -605.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.72 | 214.87 | 20.40 | 236.14 | 0.4155 | -811.0 | -694.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -6.87 | 214.62 | 20.15 | 241.96 | 0.3891 | -945.0 | -800.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -8.90 | 213.64 | 19.17 | 236.20 | 0.3921 | -1087.0 | -879.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.15 | 213.39 | 18.92 | 235.33 | 0.3909 | -963.0 | -793.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.92 | 212.91 | 18.44 | 237.35 | 0.3736 | -837.0 | -628.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -5.22 | 212.45 | 17.98 | 243.33 | 0.3455 | -826.0 | -669.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -7.24 | 211.75 | 17.28 | 237.25 | 0.3518 | -974.0 | -836.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -15.04 | 210.12 | 15.65 | 219.02 | 0.4154 | -799.0 | -571.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
