SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.15 | 230.58 | 21.74 | 116.20 | 5.69 | 204.56 | 10.09 | 281.38 | 0.1789 | -416.6 | -246.3 | |
|
previous
or next observation for the same group /

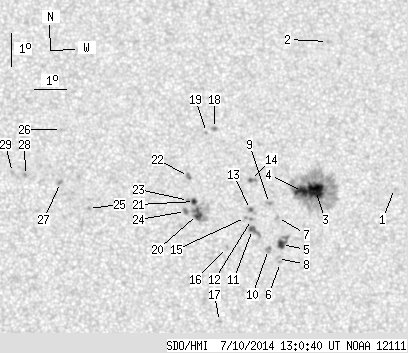

back to the solar disc SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.37 | 5.94 | 208.28 | 13.81 | 279.14 | 0.2416 | -601.0 | -527.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 10.46 | 206.32 | 11.85 | 299.96 | 0.2341 | -753.0 | -699.5 | |
| 18.71 | 142.04 | 9.46 | 71.81 | 5.91 | 205.80 | 11.33 | 280.77 | 0.1998 | -1273.0 | -392.5 | |
| 9.35 | -3.00 | 4.72 | -3.00 | 5.89 | 205.39 | 10.92 | 281.00 | 0.1929 | -1307.4 | 999999 | |
| 4.54 | 9.90 | 2.29 | 4.98 | 4.28 | 204.71 | 10.24 | 272.74 | 0.1783 | -1150.0 | -829.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.73 | 204.67 | 10.20 | 269.65 | 0.1776 | -868.0 | -685.6 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 5.11 | 204.60 | 10.13 | 277.43 | 0.1775 | -955.0 | -659.8 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 3.86 | 204.58 | 10.11 | 270.34 | 0.1760 | -958.0 | -747.5 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 5.54 | 204.36 | 9.89 | 280.05 | 0.1744 | -960.0 | -628.1 | |
| 0.00 | 3.81 | 0.00 | 1.92 | 4.14 | 204.31 | 9.84 | 271.96 | 0.1713 | -1023.0 | -896.2 | |
| 1.82 | 6.81 | 0.91 | 3.42 | 4.75 | 203.82 | 9.35 | 275.81 | 0.1635 | -1208.2 | -966.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 5.06 | 203.79 | 9.32 | 277.69 | 0.1636 | -1168.0 | -927.3 | |
| 0.64 | 4.54 | 0.32 | 2.28 | 5.36 | 203.77 | 9.30 | 279.57 | 0.1639 | -1152.4 | -839.6 | |
| 0.64 | 3.45 | 0.32 | 1.73 | 6.25 | 203.78 | 9.31 | 284.81 | 0.1672 | -1099.4 | -843.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 5.12 | 203.61 | 9.14 | 278.22 | 0.1606 | -920.0 | -653.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 4.21 | 203.04 | 8.57 | 272.67 | 0.1494 | 954.0 | 804.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 1.96 | 202.77 | 8.30 | 257.34 | 0.1486 | -841.0 | -676.3 | |
| 0.00 | 2.91 | 0.00 | 1.46 | 7.84 | 202.70 | 8.23 | 296.35 | 0.1589 | 1154.0 | 794.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 7.72 | 202.45 | 7.98 | 296.34 | 0.1541 | 846.0 | 716.1 | |
| 5.54 | 24.70 | 2.77 | 12.35 | 5.23 | 202.13 | 7.66 | 280.46 | 0.1355 | 1159.6 | 576.0 | |
| 1.91 | -20.00 | 0.95 | -20.00 | 5.62 | 202.04 | 7.57 | 283.47 | 0.1354 | 1050.4 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.50 | 6.39 | 201.86 | 7.39 | 289.26 | 0.1361 | 1134.0 | 903.7 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 5.66 | 201.85 | 7.38 | 284.02 | 0.1324 | 1097.0 | 881.0 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 5.32 | 201.76 | 7.29 | 281.67 | 0.1295 | 1190.0 | 957.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.44 | 198.77 | 4.30 | 290.38 | 0.0801 | 940.0 | 749.2 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.85 | 197.97 | 3.50 | 319.12 | 0.0927 | 869.0 | 607.0 | |
| 0.00 | 2.63 | 0.00 | 1.31 | 6.23 | 197.92 | 3.45 | 304.80 | 0.0732 | 1084.0 | 853.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 6.45 | 196.85 | 2.38 | 317.72 | 0.0616 | 1070.0 | 909.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.55 | 196.45 | 1.98 | 323.83 | 0.0584 | 778.0 | 607.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
