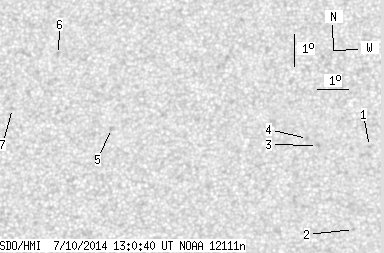

SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.35 | 0.00 | 4.82 | 18.71 | 196.84 | 2.37 | 350.56 | 0.2715 | -186.6 | -87.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.28 | 18.08 | 202.25 | 7.78 | 332.41 | 0.2791 | -854.0 | -755.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.49 | 201.63 | 7.16 | 329.28 | 0.2362 | -734.0 | -524.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 18.13 | 200.57 | 6.10 | 337.74 | 0.2679 | -899.0 | -737.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 18.35 | 200.26 | 5.79 | 339.09 | 0.2694 | -714.0 | -549.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.69 | 193.96 | -0.51 | 1.90 | 0.2573 | 896.0 | 710.2 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 21.04 | 192.22 | -2.25 | 7.07 | 0.2990 | 389.0 | 455.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 19.32 | 190.76 | -3.71 | 12.91 | 0.2748 | 610.0 | 506.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
