SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.14 | 212.52 | 32.73 | 167.39 | -19.67 | 148.58 | -45.89 | 119.36 | 0.7776 | 365.9 | 48.6 | |
|
previous
or next observation for the same group /

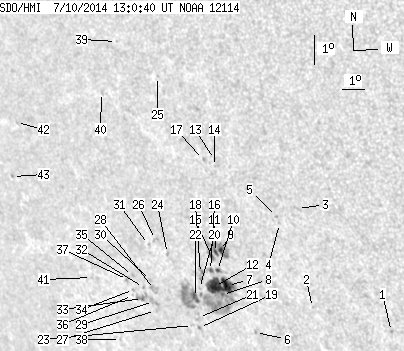

back to the solar disc SDO HMI 2014-07-10 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.63 | -21.12 | 156.52 | -37.95 | 125.49 | 0.7069 | 695.0 | 649.1 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -20.46 | 153.38 | -41.09 | 122.76 | 0.7346 | 568.0 | 477.7 | |
| 0.00 | 2.54 | 0.00 | 1.79 | -17.19 | 153.71 | -40.76 | 118.85 | 0.7143 | 592.0 | 485.0 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -17.72 | 152.80 | -41.67 | 119.03 | 0.7266 | 607.0 | 510.0 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -17.49 | 152.74 | -41.73 | 118.71 | 0.7262 | 693.0 | 553.6 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -21.43 | 150.50 | -43.97 | 122.37 | 0.7674 | 527.0 | 422.6 | |
| 12.44 | 85.55 | 9.57 | 66.61 | -19.90 | 149.79 | -44.68 | 120.19 | 0.7671 | 846.1 | 71.3 | |
| 1.18 | -7.00 | 0.92 | -7.00 | -20.22 | 149.44 | -45.03 | 120.39 | 0.7719 | 512.5 | 999999 | |
| 1.91 | 28.97 | 1.45 | 22.10 | -18.74 | 149.88 | -44.59 | 118.83 | 0.7612 | 954.8 | 446.6 | |
| 1.00 | 2.91 | 0.77 | 2.24 | -19.42 | 149.50 | -44.97 | 119.47 | 0.7678 | 770.0 | 719.6 | |
| 1.63 | -9.00 | 1.25 | -9.00 | -18.82 | 149.62 | -44.85 | 118.80 | 0.7640 | 663.9 | 999999 | |
| 16.98 | -7.00 | 13.21 | -7.00 | -19.96 | 149.17 | -45.30 | 119.96 | 0.7734 | 574.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -15.75 | 150.52 | -43.95 | 115.42 | 0.7418 | 513.0 | 489.4 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -15.98 | 150.46 | -44.01 | 115.68 | 0.7434 | 429.0 | 390.8 | |
| 1.00 | -9.00 | 0.77 | -9.00 | -18.93 | 149.40 | -45.07 | 118.83 | 0.7667 | 368.9 | 999999 | |
| 1.09 | 3.18 | 0.84 | 2.46 | -19.43 | 149.18 | -45.29 | 119.33 | 0.7710 | 610.6 | 466.4 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -15.77 | 150.03 | -44.44 | 115.23 | 0.7471 | 553.0 | 503.1 | |
| 0.00 | 5.81 | 0.00 | 4.55 | -19.56 | 148.67 | -45.80 | 119.24 | 0.7765 | 472.0 | 432.8 | |
| 0.00 | 1.63 | 0.00 | 1.32 | -21.39 | 147.90 | -46.57 | 121.04 | 0.7915 | 334.0 | 381.2 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -20.07 | 148.43 | -46.04 | 119.73 | 0.7809 | 400.0 | 329.9 | |
| 0.00 | 3.27 | 0.00 | 2.63 | -21.05 | 147.99 | -46.48 | 120.69 | 0.7892 | 27.0 | 139.6 | |
| 4.09 | 30.97 | 3.26 | 24.81 | -20.38 | 148.12 | -46.35 | 119.96 | 0.7851 | 488.1 | -150.5 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -21.34 | 147.58 | -46.89 | 120.84 | 0.7941 | 382.0 | 296.3 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -18.97 | 147.33 | -47.14 | 117.93 | 0.7868 | 501.0 | 407.9 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -13.18 | 148.65 | -45.82 | 111.37 | 0.7521 | 569.0 | 478.6 | |
| 0.00 | 2.45 | 0.00 | 1.97 | -18.53 | 146.92 | -47.55 | 117.24 | 0.7890 | 676.0 | 425.9 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -20.92 | 145.96 | -48.51 | 119.63 | 0.8071 | -481.0 | -546.6 | |
| 0.00 | 5.63 | 0.00 | 4.65 | -20.21 | 146.21 | -48.26 | 118.91 | 0.8021 | -621.0 | -580.2 | |
| 0.00 | 4.63 | 0.00 | 3.86 | -20.62 | 145.99 | -48.48 | 119.29 | 0.8057 | -676.0 | -608.7 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -19.92 | 146.14 | -48.33 | 118.54 | 0.8017 | -679.0 | -581.6 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -18.71 | 146.52 | -47.95 | 117.28 | 0.7936 | 291.0 | 247.5 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -20.17 | 145.69 | -48.78 | 118.65 | 0.8067 | -706.0 | -627.2 | |
| 0.82 | 7.45 | 0.69 | 6.26 | -20.55 | 145.48 | -48.99 | 118.99 | 0.8100 | -606.9 | -534.1 | |
| 0.00 | 1.18 | 0.00 | 1.00 | -20.27 | 145.15 | -49.32 | 118.53 | 0.8119 | -672.0 | -579.2 | |
| 0.00 | 1.27 | 0.00 | 1.07 | -19.80 | 145.30 | -49.17 | 118.05 | 0.8089 | -781.0 | -726.1 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -20.47 | 145.01 | -49.46 | 118.71 | 0.8139 | -358.0 | -344.3 | |
| 0.00 | 2.72 | 0.00 | 2.30 | -19.94 | 144.99 | -49.48 | 118.09 | 0.8122 | -636.0 | -614.6 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -22.02 | 143.67 | -50.80 | 119.92 | 0.8311 | -492.0 | -456.0 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -12.16 | 147.02 | -47.45 | 109.47 | 0.7661 | 499.0 | 443.0 | |
| 0.00 | 1.54 | 0.00 | 1.22 | -13.83 | 145.88 | -48.59 | 111.15 | 0.7831 | 513.0 | 339.2 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -19.98 | 143.13 | -51.34 | 117.40 | 0.8287 | -483.0 | -375.4 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -15.04 | 141.23 | -53.24 | 111.05 | 0.8312 | -377.0 | -257.1 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -16.83 | 140.31 | -54.16 | 112.82 | 0.8440 | 235.0 | 253.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
