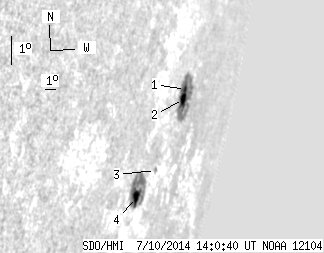

SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.34 | 89.72 | 29.87 | 175.42 | -11.98 | 267.92 | 74.00 | 256.52 | 0.9678 | -33.7 | -98.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 45.04 | 4.61 | 96.38 | -10.43 | 269.34 | 75.42 | 258.29 | 0.9731 | 168.1 | -21.3 | |
| 5.99 | -1.00 | 12.62 | -1.00 | -10.75 | 269.32 | 75.40 | 257.96 | 0.9731 | 264.5 | 999999 | |
| 0.00 | 2.18 | 0.00 | 4.19 | -12.86 | 267.60 | 73.68 | 255.58 | 0.9672 | 402.0 | 317.8 | |
| 7.17 | 42.50 | 12.64 | 74.85 | -13.62 | 266.12 | 72.21 | 254.60 | 0.9611 | -439.6 | -223.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
