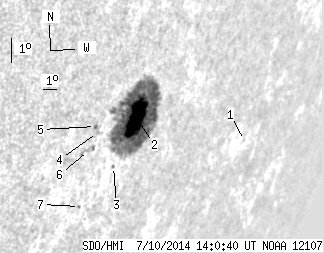

SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.41 | 258.61 | 44.60 | 284.99 | -19.19 | 253.90 | 59.99 | 246.25 | 0.8952 | 683.7 | 165.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.44 | -20.50 | 263.29 | 69.37 | 247.03 | 0.9535 | 239.0 | 247.7 | |
| 40.05 | 248.27 | 44.23 | 274.01 | -19.15 | 253.96 | 60.05 | 246.31 | 0.8956 | 760.9 | 165.5 | |
| 0.00 | 1.18 | 0.00 | 1.30 | -20.74 | 253.46 | 59.54 | 244.46 | 0.8953 | 269.0 | 200.1 | |
| 0.00 | 1.36 | 0.00 | 1.41 | -19.51 | 251.71 | 57.79 | 245.29 | 0.8799 | 398.0 | 437.3 | |
| 0.36 | 1.36 | 0.37 | 1.40 | -19.29 | 251.47 | 57.55 | 245.45 | 0.8776 | -75.5 | 3.3 | |
| 0.00 | 4.81 | 0.00 | 4.97 | -20.09 | 251.49 | 57.58 | 244.59 | 0.8796 | 413.0 | 205.3 | |
| 0.00 | 1.36 | 0.00 | 1.46 | -21.99 | 252.11 | 58.19 | 242.72 | 0.8885 | -276.0 | -174.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
