SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 272.05 | 1429.74 | 203.11 | 1069.17 | -7.12 | 241.35 | 47.43 | 256.94 | 0.7510 | 179.0 | 86.1 | |
|
previous
or next observation for the same group /

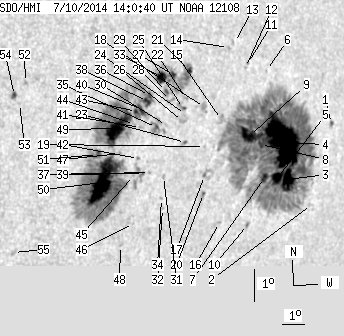

back to the solar disc SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.82 | 2.45 | 0.68 | 2.05 | -6.64 | 246.60 | 52.68 | 258.84 | 0.8074 | -268.2 | -98.2 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -9.12 | 246.03 | 52.11 | 255.68 | 0.8064 | 315.0 | 257.3 | |
| 18.25 | 814.47 | 14.71 | 641.28 | -8.27 | 244.67 | 50.76 | 256.39 | 0.7908 | 613.3 | 345.1 | |
| 91.35 | -3.00 | 72.61 | -3.00 | -7.10 | 244.29 | 50.37 | 257.75 | 0.7843 | 1130.7 | 999999 | |
| 9.90 | -3.00 | 7.88 | -3.00 | -8.18 | 244.17 | 50.25 | 256.37 | 0.7853 | 977.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -4.82 | 243.19 | 49.28 | 260.42 | 0.7681 | -195.0 | -60.5 | |
| 5.45 | -3.00 | 4.28 | -3.00 | -8.14 | 243.54 | 49.62 | 256.25 | 0.7786 | 926.0 | 999999 | |
| 2.72 | -3.00 | 2.12 | -3.00 | -7.10 | 243.19 | 49.27 | 257.48 | 0.7725 | 1028.4 | 999999 | |
| 19.89 | -3.00 | 15.27 | -3.00 | -6.79 | 242.63 | 48.71 | 257.74 | 0.7658 | 1069.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.63 | -9.58 | 242.99 | 49.07 | 254.29 | 0.7762 | 548.0 | 413.9 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -4.55 | 242.28 | 48.37 | 260.57 | 0.7575 | -367.0 | -350.8 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -4.67 | 242.20 | 48.28 | 260.39 | 0.7568 | -398.0 | -292.0 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -3.87 | 241.63 | 47.71 | 261.33 | 0.7489 | 381.0 | 434.8 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -4.01 | 241.37 | 47.45 | 261.09 | 0.7461 | 570.0 | 480.1 | |
| 0.00 | 6.27 | 0.00 | 4.67 | -6.23 | 241.26 | 47.35 | 258.14 | 0.7494 | 646.0 | 472.2 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -9.45 | 241.66 | 47.74 | 254.07 | 0.7615 | 701.0 | 628.2 | |
| 0.36 | 7.36 | 0.27 | 5.48 | -7.94 | 240.72 | 46.80 | 255.75 | 0.7472 | -419.2 | 32.8 | |
| 0.00 | 6.27 | 0.00 | 4.59 | -5.82 | 240.45 | 46.53 | 258.48 | 0.7392 | 834.0 | 583.4 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -7.03 | 240.59 | 46.68 | 256.91 | 0.7436 | -229.0 | -195.5 | |
| 0.64 | 2.00 | 0.47 | 1.49 | -8.50 | 240.76 | 46.84 | 255.03 | 0.7491 | 766.4 | 682.3 | |
| 2.54 | 67.47 | 1.83 | 48.01 | -4.64 | 239.67 | 45.76 | 259.88 | 0.7276 | 618.6 | 7.7 | |
| 0.00 | 1.73 | 0.00 | 1.24 | -5.50 | 239.62 | 45.70 | 258.70 | 0.7288 | -229.0 | -153.8 | |
| 0.64 | 3.00 | 0.46 | 2.17 | -6.86 | 239.73 | 45.81 | 256.89 | 0.7332 | 668.4 | 602.3 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -5.99 | 239.63 | 45.71 | 258.03 | 0.7300 | 333.0 | 321.0 | |
| 0.91 | 3.90 | 0.65 | 2.81 | -5.80 | 239.52 | 45.60 | 258.26 | 0.7283 | -128.3 | -128.8 | |
| 0.00 | 3.36 | 0.00 | 2.42 | -6.20 | 239.52 | 45.60 | 257.72 | 0.7292 | 536.0 | 506.2 | |
| 3.45 | -21.00 | 2.45 | -21.00 | -4.72 | 238.94 | 45.02 | 259.59 | 0.7191 | -553.5 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.20 | -5.52 | 238.92 | 45.00 | 258.48 | 0.7206 | -299.0 | -295.4 | |
| 1.36 | -21.00 | 0.97 | -21.00 | -5.24 | 238.72 | 44.80 | 258.83 | 0.7176 | -547.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -6.29 | 238.83 | 44.91 | 257.41 | 0.7213 | 207.0 | 192.9 | |
| 0.00 | 1.73 | 0.00 | 1.24 | -7.87 | 238.89 | 44.97 | 255.29 | 0.7261 | -373.0 | -283.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -8.88 | 238.99 | 45.08 | 253.98 | 0.7301 | -318.0 | -231.1 | |
| 8.72 | -21.00 | 6.14 | -21.00 | -4.79 | 238.47 | 44.55 | 259.37 | 0.7136 | -825.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -8.56 | 238.90 | 44.98 | 254.37 | 0.7282 | -370.0 | -308.8 | |
| 1.27 | 13.80 | 0.90 | 9.78 | -6.33 | 238.40 | 44.48 | 257.24 | 0.7163 | -478.5 | -232.0 | |
| 1.63 | 188.25 | 1.15 | 129.67 | -5.32 | 238.00 | 44.08 | 258.52 | 0.7091 | -637.2 | -516.7 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -7.72 | 238.26 | 44.34 | 255.30 | 0.7184 | -406.0 | -297.0 | |
| 4.45 | -36.00 | 3.11 | -36.00 | -5.51 | 237.93 | 44.01 | 258.25 | 0.7087 | -707.3 | 999999 | |
| 0.45 | 12.62 | 0.32 | 8.89 | -7.74 | 238.01 | 44.09 | 255.19 | 0.7154 | -360.8 | -328.3 | |
| 4.27 | -36.00 | 2.98 | -36.00 | -5.74 | 237.69 | 43.78 | 257.85 | 0.7064 | -726.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.33 | -6.30 | 237.71 | 43.79 | 257.08 | 0.7080 | -521.0 | -352.0 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -7.26 | 237.73 | 43.81 | 255.76 | 0.7108 | -589.0 | -415.8 | |
| 1.91 | -36.00 | 1.33 | -36.00 | -5.79 | 237.49 | 43.57 | 257.72 | 0.7041 | -865.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -6.19 | 237.44 | 43.52 | 257.15 | 0.7045 | -366.0 | -298.7 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -7.78 | 237.58 | 43.67 | 255.00 | 0.7105 | -451.0 | -374.3 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -9.29 | 237.80 | 43.88 | 253.02 | 0.7176 | -332.0 | -276.9 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -7.07 | 236.94 | 43.03 | 255.78 | 0.7008 | -252.0 | -228.3 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -9.95 | 237.35 | 43.43 | 251.96 | 0.7145 | -532.0 | -410.9 | |
| 37.41 | -36.00 | 25.74 | -36.00 | -6.28 | 236.73 | 42.82 | 256.82 | 0.6961 | -943.7 | 999999 | |
| 48.58 | 258.44 | 33.39 | 177.45 | -7.94 | 236.29 | 42.38 | 254.35 | 0.6955 | -1098.5 | -393.0 | |
| 3.45 | -50.00 | 2.35 | -50.00 | -7.05 | 235.98 | 42.06 | 255.49 | 0.6891 | -929.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.23 | -4.69 | 232.86 | 38.95 | 257.95 | 0.6428 | -607.0 | -541.5 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -5.32 | 232.67 | 38.75 | 256.92 | 0.6421 | -704.0 | -483.9 | |
| 1.63 | 3.54 | 1.05 | 2.27 | -5.07 | 232.46 | 38.54 | 257.24 | 0.6386 | -855.3 | -643.0 | |
| 0.00 | 2.91 | 0.00 | 1.92 | -9.97 | 232.93 | 39.02 | 250.12 | 0.6616 | -664.0 | -439.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
