SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.96 | 222.48 | 19.19 | 112.40 | 5.82 | 204.72 | 10.80 | 281.29 | 0.1912 | -360.2 | -213.1 | |
|
previous
or next observation for the same group /

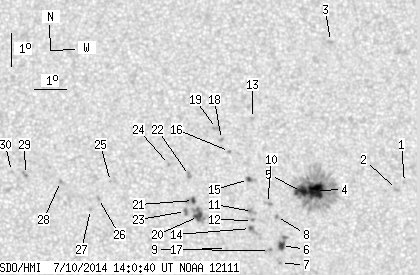

back to the solar disc SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.65 | 6.10 | 208.62 | 14.70 | 279.30 | 0.2568 | -794.0 | -614.9 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 5.89 | 208.36 | 14.44 | 278.62 | 0.2520 | -924.0 | -664.5 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 10.45 | 206.43 | 12.51 | 298.64 | 0.2438 | -875.0 | -765.6 | |
| 18.16 | 144.66 | 9.20 | 73.29 | 5.90 | 205.81 | 11.89 | 280.27 | 0.2092 | -1262.3 | -378.3 | |
| 8.99 | -4.00 | 4.55 | -4.00 | 5.88 | 205.37 | 11.45 | 280.50 | 0.2018 | -1291.9 | 999999 | |
| 3.54 | 8.45 | 1.79 | 4.26 | 4.24 | 204.72 | 10.80 | 272.42 | 0.1878 | -1180.0 | -824.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 3.70 | 204.68 | 10.76 | 269.49 | 0.1871 | -875.0 | -745.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 5.13 | 204.57 | 10.66 | 277.22 | 0.1865 | -973.0 | -761.8 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 4.10 | 204.34 | 10.42 | 271.67 | 0.1813 | -1039.0 | -852.4 | |
| 0.00 | 2.91 | 0.00 | 1.46 | 5.53 | 204.30 | 10.38 | 279.57 | 0.1828 | -673.0 | -574.9 | |
| 0.00 | 3.63 | 0.00 | 1.83 | 5.29 | 203.83 | 9.91 | 278.62 | 0.1742 | -976.0 | -907.8 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 5.02 | 203.83 | 9.91 | 277.05 | 0.1735 | -1065.0 | -852.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.13 | 203.89 | 9.98 | 293.75 | 0.1882 | -855.0 | -623.2 | |
| 0.82 | 4.54 | 0.41 | 2.28 | 4.77 | 203.76 | 9.84 | 275.68 | 0.1720 | -1183.3 | -994.5 | |
| 1.09 | 3.81 | 0.55 | 1.92 | 6.27 | 203.73 | 9.81 | 284.25 | 0.1755 | -1028.8 | -755.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 7.13 | 203.15 | 9.23 | 289.98 | 0.1702 | 875.0 | 622.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 4.17 | 203.01 | 9.09 | 272.30 | 0.1584 | 897.0 | 698.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.50 | 202.91 | 8.99 | 292.53 | 0.1686 | 1065.0 | 828.1 | |
| 0.00 | 3.18 | 0.00 | 1.60 | 7.84 | 202.76 | 8.85 | 294.72 | 0.1685 | 1035.0 | 727.1 | |
| 4.09 | 14.08 | 2.05 | 7.05 | 5.16 | 202.16 | 8.24 | 279.30 | 0.1453 | 1131.2 | 860.7 | |
| 1.27 | 5.09 | 0.64 | 2.55 | 5.65 | 202.01 | 8.09 | 282.82 | 0.1443 | 1149.0 | 954.3 | |
| 0.00 | 3.18 | 0.00 | 1.59 | 6.41 | 201.90 | 7.98 | 288.13 | 0.1458 | 906.0 | 853.2 | |
| 0.00 | 2.91 | 0.00 | 1.45 | 5.32 | 201.76 | 7.84 | 280.85 | 0.1389 | 1132.0 | 908.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.75 | 201.28 | 7.37 | 291.84 | 0.1378 | 919.0 | 767.7 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 6.25 | 199.46 | 5.54 | 293.66 | 0.1052 | 805.0 | 612.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 5.74 | 199.08 | 5.16 | 290.23 | 0.0959 | 880.0 | 721.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 5.40 | 198.83 | 4.91 | 287.66 | 0.0899 | 897.0 | 648.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.26 | 197.92 | 4.00 | 301.24 | 0.0815 | 1061.0 | 900.0 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 6.48 | 196.85 | 2.93 | 312.07 | 0.0687 | 1032.0 | 929.2 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.57 | 196.42 | 2.50 | 317.59 | 0.0645 | 774.0 | 605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
