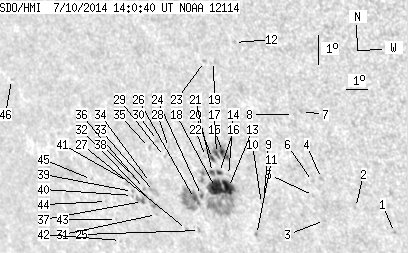

SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.77 | 207.32 | 31.31 | 161.50 | -19.82 | 148.68 | -45.24 | 119.84 | 0.7718 | 356.0 | 51.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.63 | -21.10 | 156.55 | -37.37 | 125.85 | 0.7008 | 756.0 | 645.4 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -20.32 | 155.16 | -38.75 | 123.99 | 0.7102 | 141.0 | 256.5 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -20.82 | 153.70 | -40.22 | 123.71 | 0.7279 | 656.0 | 452.4 | |
| 0.00 | 1.91 | 0.00 | 1.35 | -19.41 | 154.01 | -39.91 | 122.15 | 0.7170 | 423.0 | 426.5 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -20.00 | 153.49 | -40.43 | 122.58 | 0.7255 | 403.0 | 454.1 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -19.53 | 153.59 | -40.33 | 122.05 | 0.7219 | 243.0 | 224.6 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -17.23 | 153.78 | -40.14 | 119.24 | 0.7079 | 624.0 | 582.1 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -17.34 | 153.42 | -40.50 | 119.18 | 0.7124 | 571.0 | 523.0 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -20.37 | 151.19 | -42.73 | 121.75 | 0.7503 | 424.0 | 484.9 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -20.37 | 151.10 | -42.82 | 121.71 | 0.7512 | 577.0 | 513.0 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -21.44 | 150.49 | -43.43 | 122.66 | 0.7623 | 574.0 | 486.3 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -15.10 | 151.49 | -42.43 | 115.30 | 0.7227 | 562.0 | 377.5 | |
| 11.35 | 79.91 | 8.65 | 61.55 | -19.91 | 149.78 | -44.14 | 120.46 | 0.7619 | 872.8 | 103.0 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -19.50 | 149.92 | -44.00 | 120.05 | 0.7587 | 818.0 | 717.6 | |
| 1.91 | 23.70 | 1.44 | 17.92 | -18.71 | 149.92 | -44.00 | 119.08 | 0.7551 | 935.1 | 463.6 | |
| 1.54 | 12.53 | 1.18 | 9.65 | -19.42 | 149.54 | -44.37 | 119.76 | 0.7620 | 795.5 | 463.3 | |
| 2.27 | -15.00 | 1.72 | -15.00 | -18.79 | 149.62 | -44.30 | 119.04 | 0.7584 | 679.7 | 999999 | |
| 16.53 | -13.00 | 12.73 | -13.00 | -19.94 | 149.18 | -44.74 | 120.20 | 0.7679 | 594.8 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -15.76 | 150.41 | -43.51 | 115.64 | 0.7372 | 530.0 | 541.6 | |
| 1.63 | -15.00 | 1.24 | -15.00 | -18.97 | 149.38 | -44.54 | 119.13 | 0.7616 | 403.9 | 999999 | |
| 1.63 | -16.00 | 1.25 | -16.00 | -19.44 | 149.22 | -44.70 | 119.62 | 0.7653 | 598.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -18.92 | 149.08 | -44.84 | 118.93 | 0.7643 | -129.0 | -72.2 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -15.78 | 150.01 | -43.91 | 115.48 | 0.7416 | 555.0 | 482.2 | |
| 0.82 | 3.45 | 0.64 | 2.70 | -20.24 | 148.42 | -45.50 | 120.19 | 0.7765 | 505.1 | 372.0 | |
| 0.00 | 1.82 | 0.00 | 1.45 | -21.43 | 147.85 | -46.07 | 121.33 | 0.7870 | 368.0 | 389.2 | |
| 2.36 | 29.51 | 1.86 | 23.39 | -20.36 | 148.05 | -45.87 | 120.16 | 0.7805 | 525.4 | -104.9 | |
| 0.00 | 2.09 | 0.00 | 1.69 | -21.43 | 147.23 | -46.68 | 121.04 | 0.7927 | 261.0 | 181.3 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -18.70 | 147.44 | -46.47 | 117.91 | 0.7794 | 535.0 | 431.4 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -19.01 | 147.14 | -46.77 | 118.15 | 0.7836 | 348.0 | 327.3 | |
| 0.00 | 1.63 | 0.00 | 1.30 | -18.49 | 147.00 | -46.92 | 117.47 | 0.7829 | 370.0 | 378.8 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -20.99 | 145.96 | -47.95 | 119.96 | 0.8024 | -512.0 | -448.2 | |
| 0.00 | 6.63 | 0.00 | 5.46 | -20.66 | 146.01 | -47.91 | 119.59 | 0.8007 | -672.0 | -541.2 | |
| 0.00 | 5.81 | 0.00 | 4.75 | -20.22 | 146.19 | -47.72 | 119.15 | 0.7972 | -670.0 | -595.0 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -19.92 | 146.12 | -47.80 | 118.78 | 0.7968 | -640.0 | -603.1 | |
| 0.00 | 1.73 | 0.00 | 1.38 | -18.75 | 146.53 | -47.39 | 117.57 | 0.7884 | 286.0 | 224.6 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -20.14 | 145.74 | -48.18 | 118.87 | 0.8011 | -536.0 | -584.4 | |
| 0.73 | 5.09 | 0.60 | 4.23 | -20.59 | 145.45 | -48.47 | 119.26 | 0.8054 | -534.2 | -501.7 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -19.76 | 145.35 | -48.56 | 118.26 | 0.8032 | -787.0 | -714.8 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -20.27 | 145.09 | -48.83 | 118.75 | 0.8075 | -640.0 | -603.4 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -20.41 | 145.03 | -48.88 | 118.88 | 0.8085 | -357.0 | -305.8 | |
| 0.00 | 3.63 | 0.00 | 3.03 | -19.95 | 144.98 | -48.94 | 118.32 | 0.8073 | -479.0 | -564.1 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -21.98 | 143.70 | -50.22 | 120.12 | 0.8260 | -490.0 | -425.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -21.27 | 143.84 | -50.08 | 119.37 | 0.8223 | -465.0 | -435.3 | |
| 0.00 | 0.64 | 0.00 | 0.55 | -20.69 | 143.60 | -50.32 | 118.61 | 0.8223 | -402.0 | -393.3 | |
| 0.00 | 1.18 | 0.00 | 1.03 | -19.98 | 143.15 | -50.77 | 117.62 | 0.8238 | -459.0 | -342.5 | |
| 0.00 | 0.91 | 0.00 | 0.82 | -16.86 | 140.28 | -53.64 | 113.03 | 0.8395 | 375.0 | 291.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
