SDO HMI 2014-07-10 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.89 | 89.26 | 30.14 | 182.02 | -11.84 | 267.89 | 74.53 | 256.73 | 0.9699 | 34.3 | -116.6 | |
|
previous
or next observation for the same group /

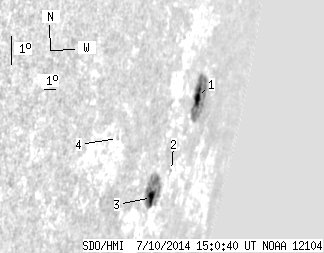

back to the solar disc SDO HMI 2014-07-10 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.35 | 48.31 | 18.24 | 107.92 | -10.65 | 269.18 | 75.82 | 258.11 | 0.9747 | 305.9 | -49.4 | |
| 0.00 | 0.36 | 0.00 | 0.73 | -12.87 | 267.74 | 74.38 | 255.66 | 0.9701 | 332.0 | 313.2 | |
| 6.54 | 39.41 | 11.90 | 71.70 | -13.62 | 266.09 | 72.73 | 254.67 | 0.9635 | -414.8 | -229.3 | |
| 0.00 | 1.18 | 0.00 | 1.67 | -11.46 | 261.51 | 68.14 | 256.24 | 0.9380 | 126.0 | 121.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
