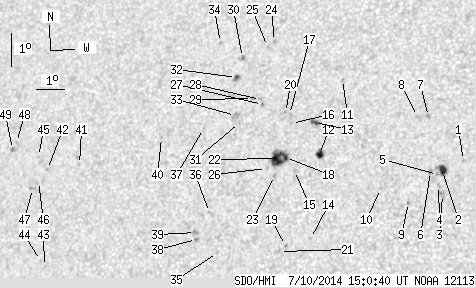

SDO HMI 2014-07-10 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.69 | 104.35 | 14.99 | 59.45 | 8.38 | 164.21 | -29.15 | 79.59 | 0.4910 | -246.4 | -144.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | 8.39 | 170.71 | -22.65 | 77.55 | 0.3919 | -824.0 | -619.6 | |
| 4.72 | 7.08 | 2.55 | 3.83 | 8.07 | 170.03 | -23.34 | 78.64 | 0.4018 | -1029.8 | -739.5 | |
| 0.00 | 4.36 | 0.00 | 2.35 | 7.34 | 170.07 | -23.30 | 80.44 | 0.3994 | -743.0 | -613.2 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 7.61 | 169.92 | -23.44 | 79.81 | 0.4024 | -631.0 | -604.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 7.94 | 169.87 | -23.50 | 79.01 | 0.4040 | -729.0 | -651.6 | |
| 0.00 | 2.54 | 0.00 | 1.38 | 8.03 | 169.63 | -23.74 | 78.89 | 0.4079 | -729.0 | -618.0 | |
| 0.00 | 2.18 | 0.00 | 1.19 | 9.71 | 169.44 | -23.92 | 74.94 | 0.4156 | -918.0 | -702.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 9.70 | 169.07 | -24.29 | 75.14 | 0.4213 | -690.0 | -535.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 7.06 | 168.94 | -24.42 | 81.43 | 0.4167 | -627.0 | -449.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 7.47 | 167.97 | -25.40 | 80.74 | 0.4326 | -726.0 | -556.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 10.76 | 166.40 | -26.96 | 74.05 | 0.4651 | -711.0 | -610.1 | |
| 3.90 | 5.18 | 2.19 | 2.90 | 8.44 | 165.80 | -27.56 | 79.18 | 0.4679 | -834.3 | -644.5 | |
| 2.09 | 4.63 | 1.17 | 2.60 | 9.42 | 165.55 | -27.82 | 77.21 | 0.4740 | 959.4 | 656.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 5.87 | 165.66 | -27.71 | 84.72 | 0.4664 | -716.0 | -614.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 7.93 | 164.97 | -28.40 | 80.49 | 0.4795 | -757.0 | -604.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 9.36 | 164.75 | -28.62 | 77.60 | 0.4858 | -340.0 | -204.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 9.63 | 164.65 | -28.71 | 77.07 | 0.4879 | 713.0 | 616.0 | |
| 3.18 | 21.70 | 1.80 | 12.31 | 8.32 | 164.62 | -28.74 | 79.77 | 0.4854 | -1067.3 | -664.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 5.63 | 164.80 | -28.57 | 85.31 | 0.4794 | -658.0 | -548.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 9.69 | 164.50 | -28.86 | 77.00 | 0.4902 | 861.0 | 715.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 5.44 | 164.60 | -28.77 | 85.72 | 0.4823 | -872.0 | -661.5 | |
| 11.71 | -18.00 | 6.65 | -18.00 | 8.28 | 164.34 | -29.02 | 79.92 | 0.4896 | -957.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 7.75 | 164.28 | -29.09 | 81.00 | 0.4896 | -776.0 | -574.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 11.85 | 163.88 | -29.48 | 72.96 | 0.5057 | 732.0 | 614.5 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 11.69 | 163.65 | -29.71 | 73.37 | 0.5085 | 713.0 | 599.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 7.96 | 163.98 | -29.38 | 80.65 | 0.4944 | -516.0 | -295.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 9.91 | 163.67 | -29.70 | 76.84 | 0.5032 | 883.0 | 736.7 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 10.06 | 163.58 | -29.78 | 76.58 | 0.5048 | 751.0 | 585.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 10.08 | 163.29 | -30.07 | 76.63 | 0.5091 | 889.0 | 700.9 | |
| 0.00 | 2.00 | 0.00 | 1.16 | 11.33 | 162.80 | -30.57 | 74.41 | 0.5197 | 885.0 | 743.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 9.33 | 162.90 | -30.46 | 78.20 | 0.5131 | -459.0 | -475.5 | |
| 1.09 | 3.00 | 0.63 | 1.74 | 10.71 | 162.65 | -30.71 | 75.64 | 0.5201 | 917.5 | 774.3 | |
| 0.00 | 4.45 | 0.00 | 2.57 | 9.54 | 162.74 | -30.63 | 77.84 | 0.5160 | -638.0 | -606.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 11.76 | 161.94 | -31.42 | 73.92 | 0.5332 | 542.0 | 383.1 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 5.34 | 162.41 | -30.95 | 86.05 | 0.5153 | -497.0 | -337.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 6.55 | 162.05 | -31.31 | 83.74 | 0.5215 | -770.0 | -609.4 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 9.11 | 161.62 | -31.74 | 78.96 | 0.5313 | 654.0 | 516.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 5.71 | 161.64 | -31.73 | 85.38 | 0.5270 | -783.0 | -636.8 | |
| 0.00 | 3.18 | 0.00 | 1.85 | 5.92 | 161.59 | -31.78 | 84.98 | 0.5279 | -787.0 | -637.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 8.78 | 160.11 | -33.25 | 79.89 | 0.5525 | -619.0 | -533.0 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 7.84 | 157.13 | -36.24 | 82.00 | 0.5935 | 470.0 | 452.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 7.64 | 155.92 | -37.45 | 82.47 | 0.6101 | 828.0 | 718.7 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 4.68 | 156.04 | -37.32 | 87.34 | 0.6072 | 711.0 | 635.8 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 4.86 | 155.87 | -37.49 | 87.05 | 0.6094 | 622.0 | 491.5 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 8.02 | 155.52 | -37.84 | 81.89 | 0.6158 | 649.0 | 534.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 7.26 | 155.60 | -37.76 | 83.12 | 0.6141 | 240.0 | 300.9 | |
| 0.00 | 2.18 | 0.00 | 1.37 | 7.04 | 155.39 | -37.97 | 83.50 | 0.6168 | 796.0 | 657.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 8.42 | 154.62 | -38.75 | 81.36 | 0.6285 | 622.0 | 513.2 | |
| 0.00 | 2.00 | 0.00 | 1.27 | 8.20 | 154.48 | -38.88 | 81.73 | 0.6301 | 707.0 | 647.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
