SDO HMI 2014-07-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.59 | 253.94 | 46.39 | 288.92 | -19.25 | 253.80 | 60.99 | 246.45 | 0.9024 | 669.7 | 177.3 | |
|
previous
or next observation for the same group /

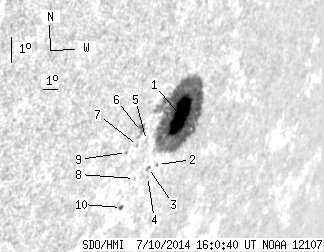

back to the solar disc SDO HMI 2014-07-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.77 | 237.14 | 45.49 | 270.66 | -19.18 | 253.92 | 61.11 | 246.56 | 0.9031 | 759.0 | 173.2 | |
| 0.00 | 1.18 | 0.00 | 1.35 | -20.76 | 253.42 | 60.61 | 244.73 | 0.9027 | 133.0 | 138.1 | |
| 0.00 | 1.91 | 0.00 | 2.14 | -20.83 | 252.86 | 60.05 | 244.51 | 0.8990 | 528.0 | 438.6 | |
| 0.00 | 0.82 | 0.00 | 0.92 | -21.13 | 253.00 | 60.19 | 244.21 | 0.9006 | 445.0 | 375.7 | |
| 0.00 | 1.54 | 0.00 | 1.68 | -19.89 | 252.13 | 59.32 | 245.31 | 0.8920 | 230.0 | 219.8 | |
| 0.00 | 6.81 | 0.00 | 7.26 | -19.56 | 251.62 | 58.81 | 245.52 | 0.8875 | 411.0 | 296.5 | |
| 0.00 | 1.00 | 0.00 | 1.07 | -20.02 | 251.64 | 58.83 | 245.03 | 0.8887 | 437.0 | 380.5 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -21.15 | 252.16 | 59.35 | 243.96 | 0.8948 | 188.0 | 267.7 | |
| 0.00 | 1.27 | 0.00 | 1.34 | -20.22 | 251.07 | 58.26 | 244.65 | 0.8850 | -231.0 | -200.9 | |
| 0.82 | 2.00 | 0.90 | 2.20 | -22.11 | 251.96 | 59.15 | 242.87 | 0.8955 | -269.9 | -154.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
