SDO HMI 2014-07-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.64 | 0.00 | 3.70 | -21.80 | 202.49 | 9.68 | 199.49 | 0.4642 | 486.3 | 424.5 | |
|
previous
or next observation for the same group /

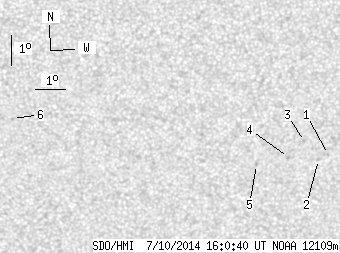

back to the solar disc SDO HMI 2014-07-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.95 | 204.77 | 11.96 | 203.88 | 0.4767 | 717.0 | 559.6 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -22.12 | 204.45 | 11.64 | 203.16 | 0.4770 | 675.0 | 544.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.50 | 203.93 | 11.12 | 202.79 | 0.4652 | 703.0 | 622.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.03 | 203.44 | 10.63 | 201.42 | 0.4699 | 810.0 | 714.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.26 | 202.38 | 9.57 | 199.30 | 0.4674 | 727.0 | 603.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -20.64 | 194.29 | 1.48 | 183.33 | 0.4171 | -714.0 | -615.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
