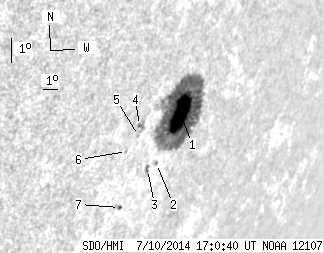

SDO HMI 2014-07-10 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.31 | 247.76 | 46.89 | 287.39 | -19.24 | 253.78 | 61.53 | 246.60 | 0.9061 | 664.5 | 164.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.95 | 231.86 | 45.38 | 269.88 | -19.18 | 253.91 | 61.66 | 246.70 | 0.9068 | 732.9 | 159.8 | |
| 0.00 | 0.82 | 0.00 | 0.95 | -20.79 | 253.35 | 61.10 | 244.83 | 0.9061 | 151.0 | 152.2 | |
| 0.00 | 3.36 | 0.00 | 3.84 | -20.96 | 252.86 | 60.61 | 244.51 | 0.9031 | 571.0 | 491.8 | |
| 0.54 | 7.63 | 0.59 | 8.24 | -19.41 | 251.35 | 59.10 | 245.76 | 0.8894 | -10.2 | 206.2 | |
| 0.00 | 1.18 | 0.00 | 1.28 | -19.75 | 251.49 | 59.24 | 245.44 | 0.8911 | 418.0 | 338.2 | |
| 0.00 | 0.91 | 0.00 | 0.97 | -20.25 | 251.04 | 58.78 | 244.76 | 0.8888 | -332.0 | -209.3 | |
| 0.82 | 2.00 | 0.92 | 2.23 | -22.16 | 251.84 | 59.58 | 242.94 | 0.8986 | -265.4 | -189.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
