SDO HMI 2014-07-10 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 269.65 | 1369.01 | 208.22 | 1059.21 | -7.06 | 241.45 | 49.20 | 257.47 | 0.7703 | 173.3 | 90.4 | |
|
previous
or next observation for the same group /

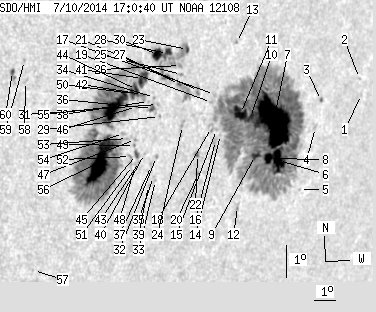

back to the solar disc SDO HMI 2014-07-10 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.25 | -6.51 | 248.80 | 56.55 | 259.74 | 0.8445 | 405.0 | 253.5 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -6.00 | 248.61 | 56.35 | 260.30 | 0.8420 | 380.0 | 360.4 | |
| 0.64 | 1.36 | 0.55 | 1.18 | -6.57 | 246.63 | 54.38 | 259.26 | 0.8241 | -344.1 | -294.5 | |
| 0.00 | 1.82 | 0.00 | 1.58 | -7.40 | 246.45 | 54.20 | 258.23 | 0.8237 | -230.0 | -237.6 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -9.30 | 245.99 | 53.74 | 255.85 | 0.8228 | 159.0 | 129.1 | |
| 18.25 | 781.18 | 15.28 | 637.99 | -8.32 | 244.71 | 52.45 | 256.72 | 0.8082 | 638.5 | 347.4 | |
| 97.77 | -6.00 | 80.59 | -6.00 | -7.09 | 244.24 | 51.99 | 258.13 | 0.8011 | 1087.3 | 999999 | |
| 7.08 | -6.00 | 5.85 | -6.00 | -8.23 | 244.19 | 51.93 | 256.71 | 0.8028 | 1016.0 | 999999 | |
| 4.36 | -6.00 | 3.55 | -6.00 | -8.10 | 243.51 | 51.26 | 256.71 | 0.7957 | 934.9 | 999999 | |
| 4.54 | -6.00 | 3.64 | -6.00 | -6.90 | 243.07 | 50.82 | 258.10 | 0.7887 | 973.4 | 999999 | |
| 13.53 | -6.00 | 10.72 | -6.00 | -6.75 | 242.57 | 50.31 | 258.17 | 0.7830 | 1064.0 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.91 | -9.66 | 242.93 | 50.67 | 254.63 | 0.7931 | 472.0 | 355.9 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -4.53 | 242.11 | 49.86 | 260.89 | 0.7740 | -440.0 | -388.1 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -7.35 | 241.70 | 49.44 | 257.20 | 0.7749 | 471.0 | 404.6 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -7.19 | 241.48 | 49.23 | 257.36 | 0.7723 | 488.0 | 452.3 | |
| 0.00 | 3.36 | 0.00 | 2.61 | -7.53 | 241.48 | 49.23 | 256.92 | 0.7730 | 484.0 | 459.7 | |
| 0.00 | 2.45 | 0.00 | 1.89 | -6.09 | 241.24 | 48.99 | 258.70 | 0.7674 | 275.0 | 273.8 | |
| 0.00 | 3.99 | 0.00 | 3.08 | -7.11 | 241.23 | 48.98 | 257.39 | 0.7694 | 374.0 | 304.1 | |
| 0.00 | 1.54 | 0.00 | 1.19 | -6.33 | 241.13 | 48.87 | 258.37 | 0.7666 | 436.0 | 379.6 | |
| 0.00 | 1.63 | 0.00 | 1.26 | -8.52 | 240.84 | 48.59 | 255.49 | 0.7684 | 818.0 | 722.6 | |
| 0.00 | 4.81 | 0.00 | 3.64 | -5.93 | 240.48 | 48.22 | 258.74 | 0.7586 | 781.0 | 661.2 | |
| 0.91 | 2.36 | 0.70 | 1.81 | -7.92 | 240.70 | 48.45 | 256.22 | 0.7654 | -455.3 | -360.5 | |
| 1.54 | 54.74 | 1.15 | 40.18 | -4.63 | 239.84 | 47.58 | 260.29 | 0.7488 | 644.3 | -54.8 | |
| 0.00 | 4.54 | 0.00 | 3.41 | -6.98 | 239.87 | 47.62 | 257.22 | 0.7541 | 531.0 | 422.4 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -5.39 | 239.64 | 47.38 | 259.24 | 0.7480 | -288.0 | -218.3 | |
| 0.00 | 2.00 | 0.00 | 1.48 | -5.11 | 239.57 | 47.31 | 259.60 | 0.7466 | 317.0 | 268.2 | |
| 0.91 | 13.80 | 0.67 | 10.33 | -5.70 | 239.58 | 47.32 | 258.83 | 0.7480 | -278.3 | 375.5 | |
| 5.36 | -23.00 | 3.92 | -23.00 | -4.71 | 238.94 | 46.69 | 259.99 | 0.7387 | -497.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -6.64 | 238.79 | 46.53 | 257.37 | 0.7410 | -154.0 | -185.3 | |
| 8.62 | -23.00 | 6.26 | -23.00 | -4.72 | 238.50 | 46.24 | 259.88 | 0.7335 | -791.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -6.27 | 238.65 | 46.40 | 257.84 | 0.7386 | 151.0 | 138.9 | |
| 0.00 | 1.82 | 0.00 | 1.34 | -7.89 | 238.82 | 46.56 | 255.74 | 0.7444 | -345.0 | -247.1 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -8.64 | 238.89 | 46.63 | 254.77 | 0.7472 | -357.0 | -260.0 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -6.04 | 238.49 | 46.24 | 258.09 | 0.7363 | -321.0 | -259.1 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -8.51 | 238.78 | 46.52 | 254.91 | 0.7456 | -342.0 | -290.5 | |
| 1.91 | 3.45 | 1.39 | 2.52 | -6.38 | 238.44 | 46.19 | 257.63 | 0.7365 | -474.8 | -357.2 | |
| 0.00 | 1.72 | 0.00 | 1.27 | -8.16 | 238.63 | 46.38 | 255.33 | 0.7430 | -272.0 | -185.5 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -6.15 | 238.24 | 45.98 | 257.88 | 0.7336 | -439.0 | -420.2 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -8.78 | 238.60 | 46.34 | 254.50 | 0.7443 | -180.0 | -207.3 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -7.77 | 238.26 | 46.01 | 255.74 | 0.7378 | -255.0 | -276.5 | |
| 10.17 | 439.11 | 7.32 | 310.61 | -5.43 | 237.90 | 45.64 | 258.77 | 0.7280 | -598.5 | -446.0 | |
| 0.64 | -41.00 | 0.46 | -41.00 | -5.92 | 237.95 | 45.69 | 258.11 | 0.7297 | -447.7 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -8.00 | 238.08 | 45.82 | 255.36 | 0.7363 | -244.0 | -191.6 | |
| 4.45 | -41.00 | 3.19 | -41.00 | -5.75 | 237.67 | 45.41 | 258.27 | 0.7260 | -705.3 | 999999 | |
| 1.82 | 3.54 | 1.32 | 2.57 | -7.78 | 237.91 | 45.66 | 255.61 | 0.7338 | -382.0 | -206.4 | |
| 0.00 | 1.72 | 0.00 | 1.24 | -6.28 | 237.72 | 45.47 | 257.57 | 0.7279 | -487.0 | -413.9 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -7.31 | 237.80 | 45.55 | 256.21 | 0.7314 | -523.0 | -348.1 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -8.09 | 237.91 | 45.66 | 255.20 | 0.7346 | -352.0 | -276.9 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -7.49 | 237.78 | 45.53 | 255.96 | 0.7316 | -432.0 | -326.4 | |
| 4.36 | -41.00 | 3.12 | -41.00 | -5.87 | 237.51 | 45.25 | 258.07 | 0.7243 | -760.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -8.11 | 237.78 | 45.53 | 255.13 | 0.7332 | -456.0 | -409.6 | |
| 0.00 | 2.09 | 0.00 | 1.51 | -7.83 | 237.65 | 45.40 | 255.47 | 0.7310 | -515.0 | -316.0 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -7.26 | 237.45 | 45.19 | 256.17 | 0.7271 | -192.0 | -137.1 | |
| 0.00 | 2.09 | 0.00 | 1.49 | -7.09 | 237.25 | 45.00 | 256.34 | 0.7244 | 235.0 | 37.8 | |
| 31.32 | -41.00 | 22.17 | -41.00 | -6.23 | 236.76 | 44.51 | 257.37 | 0.7164 | -965.9 | 999999 | |
| 50.47 | -41.00 | 35.71 | -41.00 | -7.92 | 236.36 | 44.11 | 254.94 | 0.7162 | -1039.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -11.22 | 234.04 | 41.78 | 249.57 | 0.6997 | -594.0 | -544.0 | |
| 0.00 | 1.82 | 0.00 | 1.20 | -5.28 | 232.96 | 40.70 | 257.60 | 0.6671 | -497.0 | -370.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -4.63 | 232.87 | 40.61 | 258.53 | 0.6643 | -651.0 | -568.1 | |
| 1.00 | 5.27 | 0.66 | 3.46 | -4.95 | 232.41 | 40.15 | 257.92 | 0.6592 | -836.5 | -695.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
