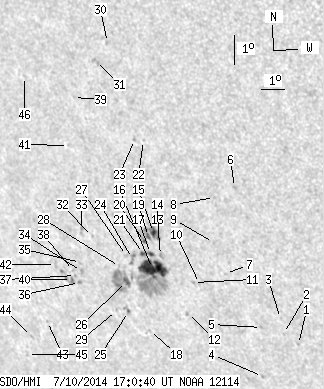

SDO HMI 2014-07-10 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.23 | 206.81 | 31.51 | 156.12 | -19.74 | 148.77 | -43.48 | 120.60 | 0.7546 | 411.9 | 106.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.44 | -22.23 | 154.92 | -37.33 | 127.27 | 0.7077 | 542.0 | 401.4 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -21.88 | 154.41 | -37.85 | 126.50 | 0.7106 | 312.0 | 339.2 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -21.38 | 154.44 | -37.82 | 125.90 | 0.7071 | 500.0 | 416.3 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -23.40 | 153.01 | -39.25 | 127.42 | 0.7334 | 506.0 | 402.2 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -21.72 | 153.54 | -38.72 | 125.74 | 0.7182 | 627.0 | 554.7 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -17.08 | 153.74 | -38.52 | 119.99 | 0.6896 | 646.0 | 557.7 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -19.96 | 152.57 | -39.68 | 122.97 | 0.7177 | 469.0 | 444.9 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -17.45 | 152.82 | -39.43 | 119.93 | 0.7015 | 532.0 | 499.9 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -18.94 | 152.37 | -39.89 | 121.58 | 0.7143 | 467.0 | 285.0 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -20.35 | 151.34 | -40.92 | 122.73 | 0.7323 | 509.0 | 449.0 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -20.32 | 151.09 | -41.17 | 122.56 | 0.7347 | 667.0 | 580.8 | |
| 0.00 | 1.82 | 0.00 | 1.35 | -21.39 | 150.46 | -41.79 | 123.50 | 0.7464 | 581.0 | 448.4 | |
| 0.00 | 1.82 | 0.00 | 1.34 | -19.48 | 149.92 | -42.33 | 120.89 | 0.7421 | 816.0 | 636.5 | |
| 0.82 | 15.52 | 0.60 | 11.39 | -18.92 | 150.02 | -42.24 | 120.24 | 0.7384 | 868.1 | 656.0 | |
| 2.18 | -14.00 | 1.60 | -14.00 | -18.73 | 149.86 | -42.40 | 119.92 | 0.7391 | 974.0 | 999999 | |
| 29.60 | 87.97 | 22.05 | 65.90 | -19.94 | 149.42 | -42.84 | 121.17 | 0.7493 | 740.8 | 109.6 | |
| 1.63 | 6.81 | 1.21 | 5.06 | -19.44 | 149.50 | -42.76 | 120.61 | 0.7461 | 822.1 | 568.6 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -22.05 | 148.51 | -43.74 | 123.22 | 0.7684 | -535.0 | -480.3 | |
| 1.27 | -14.00 | 0.94 | -14.00 | -18.87 | 149.59 | -42.66 | 119.96 | 0.7424 | 677.1 | 999999 | |
| 0.73 | 3.45 | 0.54 | 2.56 | -19.05 | 149.36 | -42.90 | 120.06 | 0.7456 | 505.4 | 255.8 | |
| 1.82 | -17.00 | 1.35 | -17.00 | -19.45 | 149.18 | -43.07 | 120.46 | 0.7493 | 602.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -15.71 | 150.28 | -41.97 | 116.32 | 0.7206 | 633.0 | 479.8 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -15.70 | 149.90 | -42.35 | 116.12 | 0.7246 | 607.0 | 480.9 | |
| 0.00 | 4.81 | 0.00 | 3.62 | -19.64 | 148.63 | -43.63 | 120.41 | 0.7557 | 547.0 | 508.0 | |
| 0.64 | 3.72 | 0.49 | 2.89 | -21.45 | 147.78 | -44.47 | 122.14 | 0.7723 | 423.4 | 414.2 | |
| 3.00 | 29.78 | 2.29 | 22.90 | -20.43 | 148.07 | -44.18 | 121.08 | 0.7648 | 516.7 | -68.7 | |
| 0.00 | 1.91 | 0.00 | 1.44 | -19.55 | 148.39 | -43.87 | 120.18 | 0.7577 | 88.0 | 97.8 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -19.94 | 147.93 | -44.32 | 120.42 | 0.7639 | 289.0 | 243.9 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -21.44 | 147.23 | -45.03 | 121.85 | 0.7774 | 337.0 | 274.1 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -12.62 | 149.47 | -42.79 | 111.89 | 0.7167 | 200.0 | 296.3 | |
| 0.00 | 3.72 | 0.00 | 2.67 | -13.25 | 148.81 | -43.44 | 112.44 | 0.7264 | 535.0 | 513.4 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -18.99 | 147.04 | -45.22 | 118.84 | 0.7685 | 448.0 | 353.4 | |
| 0.00 | 2.54 | 0.00 | 1.97 | -18.82 | 146.59 | -45.66 | 118.43 | 0.7721 | 325.0 | 248.9 | |
| 0.00 | 2.27 | 0.00 | 1.80 | -20.20 | 146.08 | -46.18 | 119.83 | 0.7828 | -766.0 | -665.3 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -19.90 | 146.15 | -46.11 | 119.51 | 0.7809 | -323.0 | -407.4 | |
| 0.00 | 1.63 | 0.00 | 1.30 | -20.58 | 145.84 | -46.42 | 120.17 | 0.7866 | -660.0 | -543.7 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -20.35 | 145.74 | -46.52 | 119.85 | 0.7866 | -640.0 | -646.8 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -20.18 | 145.71 | -46.55 | 119.65 | 0.7862 | -790.0 | -717.3 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -14.46 | 147.56 | -44.70 | 113.46 | 0.7448 | 386.0 | 254.9 | |
| 0.54 | 7.72 | 0.44 | 6.22 | -20.49 | 145.49 | -46.77 | 119.91 | 0.7895 | -622.7 | -552.5 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -16.04 | 146.90 | -45.36 | 115.16 | 0.7578 | 279.0 | 222.3 | |
| 0.00 | 3.18 | 0.00 | 2.57 | -20.02 | 144.91 | -47.34 | 119.10 | 0.7930 | -521.0 | -489.3 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -21.99 | 143.67 | -48.58 | 120.83 | 0.8120 | -623.0 | -502.9 | |
| 0.00 | 1.36 | 0.00 | 1.18 | -22.55 | 142.59 | -49.66 | 121.00 | 0.8234 | -512.0 | -405.6 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -23.19 | 142.06 | -50.19 | 121.49 | 0.8302 | -384.0 | -361.7 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -13.89 | 145.49 | -46.77 | 111.91 | 0.7646 | 488.0 | 383.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
