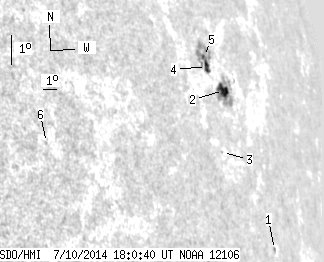

SDO HMI 2014-07-10 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.97 | 64.63 | 23.49 | 94.50 | 14.54 | 262.17 | 70.47 | 284.09 | 0.9417 | -387.1 | -149.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.81 | 9.19 | 264.65 | 72.95 | 278.42 | 0.9554 | -255.0 | -180.8 | |
| 9.89 | 32.41 | 14.80 | 48.73 | 14.26 | 262.73 | 71.04 | 283.77 | 0.9451 | -444.0 | -110.2 | |
| 0.00 | 0.54 | 0.00 | 0.77 | 12.41 | 261.39 | 69.69 | 281.81 | 0.9372 | -356.0 | -351.5 | |
| 4.54 | 29.59 | 6.49 | 42.27 | 15.08 | 261.72 | 70.02 | 284.66 | 0.9395 | -375.6 | -196.8 | |
| 1.54 | -4.00 | 2.20 | -4.00 | 15.40 | 261.68 | 69.98 | 285.00 | 0.9393 | -484.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.92 | 13.44 | 249.32 | 57.62 | 283.47 | 0.8467 | 431.0 | 383.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
