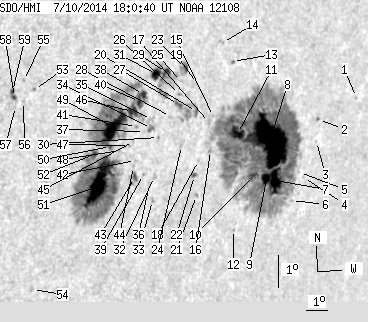

SDO HMI 2014-07-10 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 278.50 | 1346.74 | 219.34 | 1053.35 | -7.10 | 241.41 | 49.71 | 257.53 | 0.7760 | 241.4 | 65.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.84 | -5.97 | 248.66 | 56.96 | 260.44 | 0.8476 | 425.0 | 372.6 | |
| 0.00 | 1.45 | 0.00 | 1.28 | -6.54 | 246.66 | 54.96 | 259.40 | 0.8296 | -354.0 | -326.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -7.22 | 246.67 | 54.97 | 258.59 | 0.8308 | -426.0 | -382.7 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -8.31 | 246.18 | 54.48 | 257.20 | 0.8280 | 181.0 | 129.0 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -8.14 | 245.93 | 54.23 | 257.34 | 0.8254 | 133.0 | 78.5 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -9.00 | 245.69 | 53.99 | 256.27 | 0.8246 | -221.0 | -164.8 | |
| 21.33 | 771.14 | 18.09 | 637.34 | -8.32 | 244.71 | 53.01 | 256.85 | 0.8138 | 579.7 | 339.0 | |
| 116.92 | -7.00 | 97.44 | -7.00 | -7.08 | 244.19 | 52.49 | 258.24 | 0.8062 | 1041.0 | 999999 | |
| 8.35 | -7.00 | 7.00 | -7.00 | -8.23 | 244.24 | 52.54 | 256.85 | 0.8089 | 979.4 | 999999 | |
| 5.90 | -7.00 | 4.86 | -7.00 | -8.10 | 243.55 | 51.85 | 256.85 | 0.8018 | 880.8 | 999999 | |
| 14.25 | -7.00 | 11.43 | -7.00 | -6.74 | 242.54 | 50.84 | 258.30 | 0.7886 | 1064.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -9.75 | 242.88 | 51.18 | 254.66 | 0.7985 | 317.0 | 374.2 | |
| 0.36 | 1.36 | 0.29 | 1.07 | -4.49 | 242.03 | 50.33 | 261.03 | 0.7791 | -377.5 | -350.7 | |
| 0.00 | 1.91 | 0.00 | 1.48 | -3.88 | 241.50 | 49.80 | 261.71 | 0.7723 | 506.0 | 498.9 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -6.15 | 241.30 | 49.60 | 258.76 | 0.7743 | 371.0 | 322.5 | |
| 0.00 | 2.45 | 0.00 | 1.92 | -7.20 | 241.31 | 49.61 | 257.43 | 0.7764 | 62.0 | 160.1 | |
| 0.00 | 2.45 | 0.00 | 1.90 | -6.33 | 241.14 | 49.44 | 258.50 | 0.7728 | 481.0 | 431.0 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -7.49 | 240.78 | 49.08 | 256.94 | 0.7713 | -166.0 | -129.3 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -5.09 | 240.43 | 48.73 | 259.94 | 0.7626 | 722.0 | 613.9 | |
| 1.45 | 28.50 | 1.11 | 21.62 | -5.95 | 240.48 | 48.78 | 258.83 | 0.7648 | 766.8 | 422.7 | |
| 0.00 | 1.45 | 0.00 | 1.13 | -8.58 | 240.86 | 49.16 | 255.57 | 0.7747 | 735.0 | 672.1 | |
| 1.09 | 2.18 | 0.84 | 1.69 | -7.95 | 240.66 | 48.96 | 256.32 | 0.7711 | -491.4 | -351.9 | |
| 2.09 | 8.53 | 1.57 | 6.41 | -4.59 | 239.83 | 48.13 | 260.45 | 0.7549 | 431.0 | 274.3 | |
| 0.00 | 1.63 | 0.00 | 1.24 | -6.98 | 239.91 | 48.21 | 257.37 | 0.7607 | 411.0 | 468.2 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -4.99 | 239.68 | 47.98 | 259.91 | 0.7540 | 307.0 | 242.1 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -5.38 | 239.63 | 47.93 | 259.37 | 0.7542 | -337.0 | -243.0 | |
| 2.00 | -20.00 | 1.50 | -20.00 | -5.69 | 239.62 | 47.92 | 258.97 | 0.7547 | -224.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -6.05 | 239.29 | 47.59 | 258.42 | 0.7517 | 289.0 | 262.4 | |
| 4.81 | 40.49 | 3.56 | 29.92 | -4.67 | 238.97 | 47.27 | 260.16 | 0.7453 | -484.0 | -228.8 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -6.67 | 238.82 | 47.12 | 257.48 | 0.7478 | -241.0 | -198.5 | |
| 7.44 | -29.00 | 5.46 | -29.00 | -4.71 | 238.52 | 46.82 | 260.01 | 0.7402 | -819.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.83 | -7.88 | 238.80 | 47.10 | 255.90 | 0.7505 | -264.0 | -203.8 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -8.63 | 238.83 | 47.13 | 254.93 | 0.7527 | -426.0 | -326.5 | |
| 0.00 | 4.99 | 0.00 | 3.68 | -6.38 | 238.47 | 46.77 | 257.78 | 0.7431 | -402.0 | -306.0 | |
| 0.00 | 4.08 | 0.00 | 3.01 | -6.10 | 238.43 | 46.73 | 258.15 | 0.7421 | -436.0 | -297.0 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -8.09 | 238.61 | 46.91 | 255.57 | 0.7488 | -363.0 | -272.5 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -6.45 | 238.16 | 46.46 | 257.60 | 0.7398 | -421.0 | -345.7 | |
| 4.18 | 190.90 | 3.04 | 136.63 | -5.30 | 237.99 | 46.29 | 259.10 | 0.7353 | -578.5 | -502.1 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -7.79 | 238.29 | 46.59 | 255.87 | 0.7445 | -328.0 | -276.8 | |
| 5.08 | -38.00 | 3.69 | -38.00 | -5.51 | 237.84 | 46.14 | 258.78 | 0.7339 | -636.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -6.28 | 237.79 | 46.09 | 257.73 | 0.7351 | -564.0 | -440.3 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -7.34 | 237.87 | 46.17 | 256.35 | 0.7386 | -384.0 | -364.1 | |
| 2.18 | 7.26 | 1.60 | 5.33 | -7.86 | 237.90 | 46.20 | 255.66 | 0.7403 | -189.4 | -229.6 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -7.52 | 237.81 | 46.11 | 256.09 | 0.7383 | -502.0 | -392.2 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -6.74 | 237.71 | 46.01 | 257.10 | 0.7352 | -305.0 | -194.9 | |
| 9.17 | -38.00 | 6.64 | -38.00 | -5.80 | 237.56 | 45.86 | 258.31 | 0.7313 | -751.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -6.85 | 237.54 | 45.84 | 256.90 | 0.7336 | -203.0 | -216.7 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -6.99 | 237.16 | 45.46 | 256.61 | 0.7296 | -330.0 | -189.1 | |
| 33.86 | -38.00 | 24.21 | -38.00 | -6.26 | 236.77 | 45.07 | 257.49 | 0.7232 | -952.8 | 999999 | |
| 0.73 | -38.00 | 0.52 | -38.00 | -6.84 | 236.71 | 45.01 | 256.68 | 0.7239 | -629.5 | 999999 | |
| 31.41 | 240.47 | 22.42 | 171.57 | -8.06 | 236.30 | 44.60 | 254.90 | 0.7224 | -1152.1 | -437.1 | |
| 3.63 | -51.00 | 2.57 | -51.00 | -7.06 | 236.00 | 44.30 | 256.18 | 0.7160 | -983.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -4.92 | 233.31 | 41.61 | 258.39 | 0.6777 | -619.0 | -521.1 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -11.17 | 234.02 | 42.32 | 249.85 | 0.7058 | -621.0 | -482.5 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -4.62 | 232.84 | 41.14 | 258.70 | 0.6710 | -546.0 | -469.8 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -5.27 | 232.89 | 41.19 | 257.76 | 0.6733 | -625.0 | -463.3 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -5.41 | 232.57 | 40.87 | 257.46 | 0.6697 | -636.0 | -538.7 | |
| 1.18 | 5.27 | 0.78 | 3.49 | -5.13 | 232.51 | 40.81 | 257.85 | 0.6681 | -810.2 | -705.1 | |
| 1.09 | -58.00 | 0.72 | -58.00 | -4.94 | 232.41 | 40.71 | 258.10 | 0.6664 | -863.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
