SDO HMI 2014-07-10 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.99 | 0.00 | 5.92 | -19.82 | 224.57 | 32.87 | 231.15 | 0.6574 | -600.0 | -473.6 | |
|
previous
or next observation for the same group /

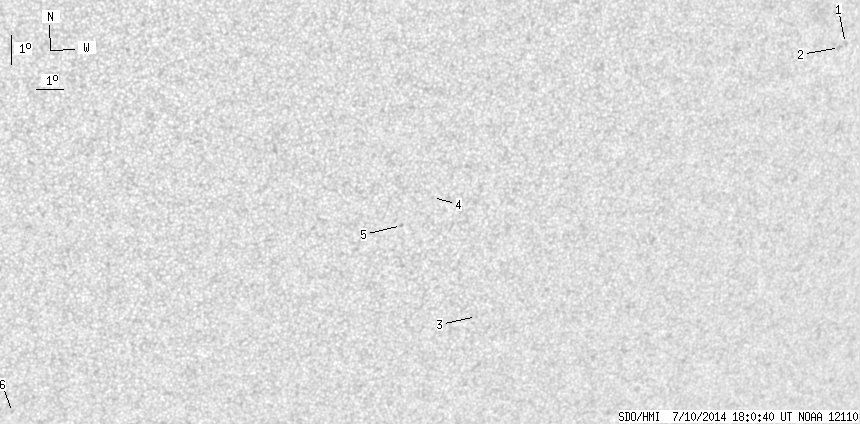

back to the solar disc SDO HMI 2014-07-10 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.47 | -16.65 | 232.48 | 40.78 | 241.84 | 0.7121 | -514.0 | -465.3 | |
| 0.00 | 2.54 | 0.00 | 1.78 | -16.77 | 232.26 | 40.56 | 241.57 | 0.7103 | -590.0 | -423.8 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -25.28 | 220.03 | 28.33 | 221.80 | 0.6460 | -497.0 | -397.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -21.13 | 217.48 | 25.78 | 224.25 | 0.5835 | -659.0 | -473.8 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -22.05 | 216.52 | 24.82 | 222.06 | 0.5831 | -690.0 | -585.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -28.25 | 203.63 | 11.93 | 198.94 | 0.5630 | -650.0 | -535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
