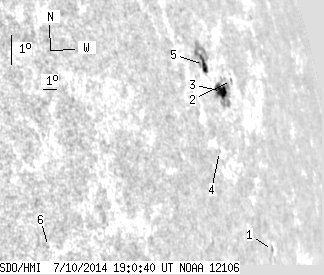

SDO HMI 2014-07-10 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.43 | 57.74 | 24.85 | 87.36 | 14.39 | 262.32 | 71.17 | 283.90 | 0.9457 | -352.5 | -141.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 3.27 | 9.15 | 264.73 | 73.58 | 278.40 | 0.9585 | -291.0 | -216.5 | |
| 0.00 | 1.45 | 0.00 | 2.39 | 14.50 | 264.01 | 72.87 | 283.99 | 0.9548 | 6.0 | -3.2 | |
| 10.62 | 29.14 | 16.33 | 45.14 | 14.23 | 262.75 | 71.60 | 283.72 | 0.9482 | -421.2 | -62.7 | |
| 0.00 | 0.27 | 0.00 | 0.39 | 12.44 | 261.31 | 70.17 | 281.84 | 0.9400 | -213.0 | -238.0 | |
| 5.81 | 24.33 | 8.52 | 35.59 | 15.15 | 261.69 | 70.54 | 284.71 | 0.9424 | -388.4 | -239.1 | |
| 0.00 | 0.64 | 0.00 | 0.58 | 10.28 | 248.29 | 57.15 | 279.74 | 0.8408 | 516.0 | 465.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
