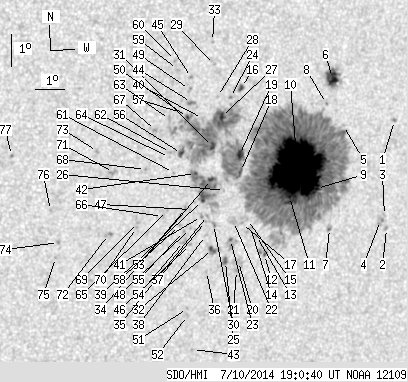

SDO HMI 2014-07-10 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 225.76 | 1454.00 | 132.78 | 850.40 | -7.93 | 221.07 | 29.92 | 248.37 | 0.5335 | 828.2 | 345.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.00 | -6.66 | 225.33 | 34.19 | 252.93 | 0.5860 | 546.0 | 467.9 | |
| 0.00 | 2.09 | 0.00 | 1.29 | -10.03 | 225.37 | 34.22 | 247.55 | 0.6014 | 640.0 | 487.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -9.62 | 225.24 | 34.10 | 248.13 | 0.5978 | 556.0 | 490.9 | |
| 0.00 | 4.45 | 0.00 | 2.74 | -9.77 | 225.11 | 33.97 | 247.82 | 0.5968 | 689.0 | 653.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.75 | 223.46 | 32.32 | 251.86 | 0.5608 | -147.0 | -150.2 | |
| 11.44 | 20.97 | 6.76 | 12.40 | -5.24 | 222.97 | 31.82 | 254.22 | 0.5478 | 905.3 | 487.1 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -9.95 | 223.25 | 32.10 | 246.40 | 0.5734 | -553.0 | -395.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.04 | 222.80 | 31.65 | 252.73 | 0.5486 | -760.0 | -656.3 | |
| 0.27 | 986.06 | 0.16 | 581.83 | -8.67 | 222.64 | 31.50 | 248.12 | 0.5587 | 678.0 | 438.7 | |
| 186.27 | -9.00 | 109.90 | -9.00 | -7.99 | 221.90 | 30.76 | 248.82 | 0.5452 | 1598.5 | 999999 | |
| 0.27 | -9.00 | 0.16 | -9.00 | -8.89 | 221.69 | 30.55 | 247.14 | 0.5470 | 1287.0 | 999999 | |
| 0.45 | 4.54 | 0.27 | 2.68 | -10.68 | 220.97 | 29.83 | 243.61 | 0.5477 | -326.2 | -97.0 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -10.07 | 220.62 | 29.48 | 244.38 | 0.5395 | 100.0 | 117.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -9.81 | 220.39 | 29.24 | 244.64 | 0.5347 | 465.0 | 331.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -9.55 | 220.26 | 29.11 | 244.99 | 0.5315 | 858.0 | 714.2 | |
| 1.72 | 3.18 | 0.99 | 1.82 | -5.44 | 219.75 | 28.60 | 252.13 | 0.5028 | -684.5 | -528.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -9.67 | 220.05 | 28.91 | 244.63 | 0.5295 | 590.0 | 548.1 | |
| 1.09 | 256.07 | 0.63 | 146.20 | -8.04 | 219.88 | 28.74 | 247.38 | 0.5177 | 1204.4 | 309.9 | |
| 6.63 | -18.00 | 3.82 | -18.00 | -7.51 | 219.81 | 28.66 | 248.30 | 0.5138 | 1022.3 | 999999 | |
| 0.00 | 8.71 | 0.00 | 5.11 | -10.87 | 220.07 | 28.92 | 242.60 | 0.5370 | 50.0 | -30.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -11.15 | 220.03 | 28.88 | 242.09 | 0.5383 | -751.0 | -621.7 | |
| 0.00 | 5.08 | 0.00 | 2.95 | -9.60 | 219.76 | 28.62 | 244.54 | 0.5252 | 647.0 | 585.4 | |
| 0.54 | 10.35 | 0.32 | 6.03 | -10.16 | 219.71 | 28.57 | 243.52 | 0.5279 | 930.3 | 457.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -5.73 | 219.38 | 28.24 | 251.34 | 0.4988 | -689.0 | -537.5 | |
| 1.27 | 3.81 | 0.74 | 2.23 | -10.85 | 219.60 | 28.46 | 242.25 | 0.5309 | -659.0 | -528.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -8.62 | 219.36 | 28.22 | 245.97 | 0.5139 | 769.0 | 620.0 | |
| 3.09 | -18.00 | 1.76 | -18.00 | -6.31 | 219.10 | 27.96 | 250.06 | 0.4976 | -230.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -5.69 | 218.93 | 27.78 | 251.14 | 0.4921 | -529.0 | -432.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -4.69 | 218.78 | 27.63 | 252.99 | 0.4853 | -663.0 | -570.2 | |
| 0.00 | 2.18 | 0.00 | 1.26 | -9.67 | 219.07 | 27.92 | 243.87 | 0.5162 | -501.0 | -396.4 | |
| 3.27 | -18.00 | 1.87 | -18.00 | -7.23 | 218.84 | 27.70 | 248.14 | 0.4988 | 1159.1 | 999999 | |
| 2.36 | 7.17 | 1.37 | 4.16 | -10.46 | 219.11 | 27.96 | 242.52 | 0.5218 | -672.1 | -295.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -3.98 | 218.68 | 27.54 | 254.36 | 0.4809 | -601.0 | -587.2 | |
| 2.09 | 59.64 | 1.20 | 34.18 | -8.26 | 218.88 | 27.74 | 246.26 | 0.5052 | 1087.8 | 431.4 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -9.38 | 218.83 | 27.69 | 244.19 | 0.5113 | -505.0 | -340.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -11.14 | 218.96 | 27.82 | 241.22 | 0.5245 | -662.0 | -486.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -9.57 | 218.78 | 27.63 | 243.82 | 0.5117 | -483.0 | -384.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -10.01 | 218.82 | 27.67 | 243.07 | 0.5150 | -575.0 | -425.9 | |
| 0.91 | -34.00 | 0.52 | -34.00 | -8.90 | 218.62 | 27.47 | 244.88 | 0.5054 | -478.8 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -6.35 | 218.44 | 27.30 | 249.54 | 0.4885 | -516.0 | -325.1 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -9.40 | 218.63 | 27.48 | 243.98 | 0.5086 | -664.0 | -555.9 | |
| 0.73 | -34.00 | 0.41 | -34.00 | -8.05 | 218.31 | 27.17 | 246.21 | 0.4961 | 708.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -13.61 | 218.75 | 27.61 | 236.96 | 0.5394 | -670.0 | -543.9 | |
| 0.00 | 3.72 | 0.00 | 2.10 | -5.84 | 218.04 | 26.89 | 250.25 | 0.4800 | -883.0 | -720.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -5.07 | 218.00 | 26.86 | 251.76 | 0.4757 | -687.0 | -629.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -10.27 | 218.32 | 27.18 | 242.18 | 0.5101 | -530.0 | -456.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -9.17 | 218.22 | 27.08 | 244.07 | 0.5017 | -752.0 | -579.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -9.77 | 218.27 | 27.13 | 243.04 | 0.5062 | -701.0 | -599.8 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -5.44 | 217.95 | 26.80 | 250.99 | 0.4767 | -495.0 | -574.0 | |
| 1.27 | -18.00 | 0.72 | -18.00 | -6.30 | 217.92 | 26.78 | 249.26 | 0.4808 | -849.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -12.29 | 218.42 | 27.28 | 238.80 | 0.5255 | -665.0 | -579.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -12.52 | 218.45 | 27.30 | 238.45 | 0.5275 | -626.0 | -521.7 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -9.14 | 218.05 | 26.90 | 243.99 | 0.4991 | -769.0 | -675.5 | |
| 0.00 | 3.36 | 0.00 | 1.93 | -10.17 | 218.07 | 26.92 | 242.15 | 0.5061 | -545.0 | -573.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -9.86 | 218.04 | 26.89 | 242.68 | 0.5036 | -690.0 | -620.8 | |
| 2.09 | -18.00 | 1.18 | -18.00 | -7.41 | 217.78 | 26.64 | 247.01 | 0.4850 | -738.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.14 | 217.68 | 26.53 | 249.41 | 0.4764 | -676.0 | -559.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -9.66 | 217.88 | 26.74 | 242.90 | 0.5002 | -665.0 | -521.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -4.81 | 217.51 | 26.37 | 251.98 | 0.4673 | -779.0 | -585.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -4.53 | 217.43 | 26.29 | 252.50 | 0.4648 | -707.0 | -581.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.00 | 217.55 | 26.40 | 245.70 | 0.4851 | -597.0 | -485.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.37 | 217.40 | 26.26 | 246.79 | 0.4793 | -759.0 | -666.6 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -6.35 | 217.31 | 26.17 | 248.73 | 0.4722 | -866.0 | -689.5 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -7.53 | 217.38 | 26.23 | 246.47 | 0.4799 | -461.0 | -456.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -9.18 | 217.43 | 26.28 | 243.39 | 0.4909 | -625.0 | -544.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -9.36 | 217.27 | 26.13 | 242.92 | 0.4900 | -758.0 | -640.5 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -6.67 | 216.85 | 25.71 | 247.73 | 0.4674 | -769.0 | -679.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -7.87 | 216.58 | 25.44 | 245.14 | 0.4708 | -785.0 | -713.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -9.52 | 216.46 | 25.32 | 241.88 | 0.4801 | -820.0 | -660.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.68 | 216.40 | 25.26 | 241.54 | 0.4804 | -662.0 | -575.2 | |
| 0.00 | 3.99 | 0.00 | 2.22 | -7.93 | 215.50 | 24.35 | 244.05 | 0.4561 | -801.0 | -718.5 | |
| 0.00 | 3.27 | 0.00 | 1.83 | -9.87 | 215.46 | 24.32 | 240.27 | 0.4691 | -779.0 | -691.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -7.26 | 214.92 | 23.78 | 244.87 | 0.4435 | -917.0 | -723.6 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -10.07 | 213.79 | 22.65 | 238.11 | 0.4484 | -956.0 | -748.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -10.54 | 213.73 | 22.58 | 237.13 | 0.4513 | -850.0 | -679.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.06 | 213.45 | 22.31 | 239.72 | 0.4359 | -911.0 | -766.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.31 | 212.06 | 20.92 | 241.84 | 0.4034 | -980.0 | -855.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
