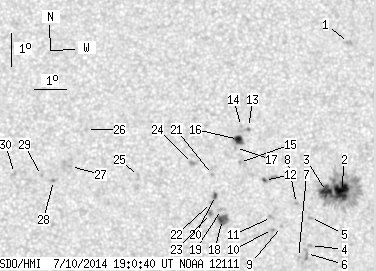

SDO HMI 2014-07-10 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.12 | 188.09 | 21.48 | 95.93 | 5.97 | 204.48 | 13.34 | 279.98 | 0.2343 | -152.1 | -215.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.81 | 0.00 | 1.97 | 10.42 | 206.33 | 15.19 | 294.28 | 0.2839 | -930.0 | -780.9 | |
| 18.97 | 117.10 | 9.72 | 60.02 | 5.87 | 205.93 | 14.79 | 278.30 | 0.2577 | -1217.1 | -417.8 | |
| 10.26 | -2.00 | 5.25 | -2.00 | 5.88 | 205.46 | 14.31 | 278.57 | 0.2498 | -1238.1 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 4.25 | 204.91 | 13.77 | 272.02 | 0.2385 | -945.0 | -711.0 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 5.10 | 204.93 | 13.79 | 275.59 | 0.2396 | -860.0 | -731.8 | |
| 0.00 | 4.63 | 0.00 | 2.36 | 4.00 | 204.78 | 13.64 | 271.00 | 0.2363 | -1005.0 | -857.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 3.89 | 204.53 | 13.38 | 270.49 | 0.2320 | -956.0 | -813.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 5.53 | 204.50 | 13.36 | 277.60 | 0.2330 | -1006.0 | -855.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 4.84 | 204.01 | 12.87 | 274.76 | 0.2237 | 789.0 | 560.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 4.75 | 203.73 | 12.59 | 274.45 | 0.2188 | -1050.0 | -830.9 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 5.12 | 203.71 | 12.56 | 276.13 | 0.2188 | -1058.0 | -825.5 | |
| 0.82 | 5.81 | 0.41 | 2.95 | 6.25 | 203.51 | 12.37 | 281.40 | 0.2182 | -1010.3 | -827.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 7.87 | 203.06 | 11.91 | 289.18 | 0.2174 | 658.0 | 689.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 7.91 | 202.84 | 11.69 | 289.65 | 0.2141 | 879.0 | 650.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 6.81 | 202.74 | 11.60 | 284.74 | 0.2074 | 754.0 | 519.1 | |
| 5.17 | 7.44 | 2.62 | 3.77 | 7.51 | 202.73 | 11.59 | 288.01 | 0.2103 | 1109.1 | 677.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.27 | 202.63 | 11.49 | 287.03 | 0.2075 | 592.0 | 458.8 | |
| 5.63 | 9.08 | 2.84 | 4.58 | 5.08 | 202.17 | 11.03 | 276.65 | 0.1927 | 1003.8 | 718.5 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 5.39 | 202.15 | 11.00 | 278.25 | 0.1929 | 826.0 | 604.4 | |
| 1.27 | 3.09 | 0.64 | 1.56 | 5.81 | 201.97 | 10.83 | 280.61 | 0.1910 | 1065.0 | 854.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 6.46 | 201.89 | 10.75 | 283.99 | 0.1918 | 978.0 | 773.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 5.60 | 201.84 | 10.70 | 279.61 | 0.1882 | 939.0 | 734.9 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 5.27 | 201.80 | 10.66 | 277.86 | 0.1868 | 1210.0 | 898.0 | |
| 0.00 | 3.00 | 0.00 | 1.51 | 6.80 | 201.27 | 10.13 | 286.59 | 0.1831 | 1033.0 | 814.2 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 6.42 | 199.59 | 8.44 | 287.19 | 0.1534 | 754.0 | 682.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 7.87 | 198.00 | 6.86 | 300.67 | 0.1382 | 764.0 | 541.2 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.75 | 197.49 | 6.35 | 294.70 | 0.1214 | 862.0 | 752.1 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 6.33 | 196.96 | 5.82 | 293.15 | 0.1101 | 1154.0 | 879.7 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 6.48 | 196.59 | 5.45 | 295.86 | 0.1053 | 905.0 | 791.5 | |
| 0.00 | 2.54 | 0.00 | 1.26 | 6.55 | 195.76 | 4.62 | 300.33 | 0.0931 | 959.0 | 739.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
