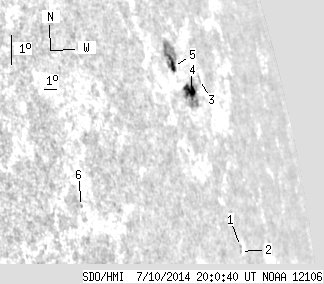

SDO HMI 2014-07-10 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.25 | 58.91 | 22.33 | 91.55 | 14.39 | 262.36 | 71.77 | 283.89 | 0.9489 | -326.7 | -137.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.94 | 9.26 | 264.81 | 74.22 | 278.53 | 0.9616 | -149.0 | -172.2 | |
| 0.00 | 0.73 | 0.00 | 1.29 | 9.11 | 264.72 | 74.14 | 278.37 | 0.9612 | -224.0 | -234.0 | |
| 0.00 | 2.36 | 0.00 | 4.00 | 14.52 | 264.04 | 73.45 | 284.01 | 0.9577 | 61.0 | -7.7 | |
| 10.71 | 27.41 | 17.00 | 43.70 | 14.22 | 262.81 | 72.22 | 283.70 | 0.9515 | -388.4 | -84.2 | |
| 3.54 | 26.23 | 5.33 | 39.49 | 15.08 | 261.77 | 71.18 | 284.62 | 0.9460 | -371.1 | -202.5 | |
| 0.00 | 1.09 | 0.00 | 1.13 | 11.28 | 252.38 | 61.79 | 280.73 | 0.8815 | 291.0 | 310.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
