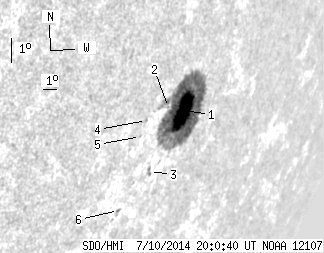

SDO HMI 2014-07-10 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.94 | 232.11 | 48.07 | 285.61 | -19.22 | 253.81 | 63.22 | 247.04 | 0.9172 | 627.2 | 179.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.94 | 224.39 | 48.07 | 276.50 | -19.17 | 253.86 | 63.27 | 247.10 | 0.9175 | 662.2 | 174.4 | |
| 0.00 | 1.18 | 0.00 | 1.39 | -19.00 | 252.68 | 62.09 | 246.99 | 0.9095 | 703.0 | 628.5 | |
| 0.00 | 3.36 | 0.00 | 4.06 | -21.12 | 252.82 | 62.23 | 244.77 | 0.9142 | 566.0 | 426.8 | |
| 0.00 | 1.18 | 0.00 | 1.34 | -19.35 | 251.41 | 60.82 | 246.30 | 0.9015 | 203.0 | 196.2 | |
| 0.00 | 0.82 | 0.00 | 0.93 | -19.87 | 251.34 | 60.75 | 245.72 | 0.9020 | 353.0 | 325.4 | |
| 0.00 | 1.18 | 0.00 | 1.39 | -22.34 | 251.57 | 60.98 | 243.14 | 0.9084 | -373.0 | -239.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
