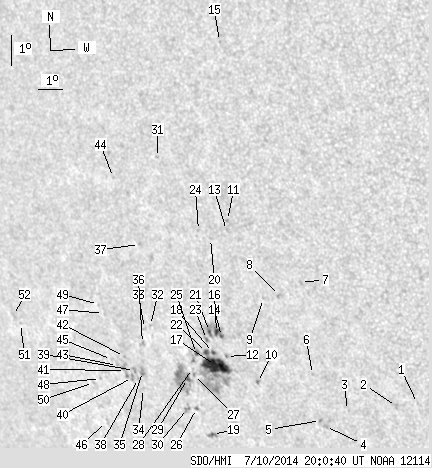

SDO HMI 2014-07-10 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.40 | 218.60 | 29.35 | 160.66 | -19.73 | 148.71 | -41.88 | 121.49 | 0.7386 | 394.1 | 100.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.48 | -20.84 | 157.43 | -33.15 | 128.59 | 0.6562 | 633.0 | 489.4 | |
| 0.00 | 2.72 | 0.00 | 1.80 | -20.97 | 156.58 | -34.01 | 128.10 | 0.6660 | 682.0 | 573.8 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -21.19 | 154.56 | -36.03 | 126.89 | 0.6881 | 511.0 | 552.2 | |
| 0.00 | 2.18 | 0.00 | 1.51 | -21.77 | 153.49 | -37.10 | 126.87 | 0.7026 | 638.0 | 506.7 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -21.57 | 153.34 | -37.25 | 126.53 | 0.7028 | 681.0 | 584.9 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -20.03 | 153.46 | -37.13 | 124.69 | 0.6919 | 576.0 | 471.9 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -17.00 | 153.75 | -36.84 | 120.93 | 0.6706 | 718.0 | 595.6 | |
| 0.00 | 2.63 | 0.00 | 1.78 | -17.46 | 152.80 | -37.79 | 120.94 | 0.6838 | 727.0 | 583.5 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -17.59 | 152.11 | -38.48 | 120.69 | 0.6920 | 532.0 | 431.1 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -20.40 | 151.07 | -39.52 | 123.63 | 0.7186 | 779.0 | 669.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -15.10 | 151.24 | -39.35 | 116.89 | 0.6887 | 622.0 | 534.8 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -19.59 | 150.01 | -40.58 | 122.00 | 0.7250 | 838.0 | 780.6 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -15.43 | 151.12 | -39.47 | 117.27 | 0.6916 | 506.0 | 374.1 | |
| 0.73 | 21.97 | 0.52 | 15.72 | -18.93 | 149.99 | -40.60 | 121.16 | 0.7217 | 888.4 | 493.0 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -9.40 | 151.93 | -38.66 | 109.25 | 0.6550 | 557.0 | 469.5 | |
| 2.36 | -14.00 | 1.69 | -14.00 | -18.80 | 149.82 | -40.77 | 120.91 | 0.7228 | 990.2 | 999999 | |
| 28.59 | 83.42 | 20.74 | 60.73 | -19.91 | 149.43 | -41.16 | 122.07 | 0.7325 | 807.5 | 155.9 | |
| 0.82 | -17.00 | 0.59 | -17.00 | -19.48 | 149.48 | -41.11 | 121.56 | 0.7298 | 944.4 | 999999 | |
| 0.73 | 4.54 | 0.55 | 3.41 | -22.26 | 148.48 | -42.11 | 124.38 | 0.7541 | -600.9 | -489.5 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -15.72 | 150.39 | -40.20 | 117.26 | 0.7012 | 630.0 | 449.8 | |
| 0.82 | -14.00 | 0.59 | -14.00 | -18.78 | 149.52 | -41.07 | 120.72 | 0.7258 | 733.2 | 999999 | |
| 2.00 | -17.00 | 1.45 | -17.00 | -19.49 | 149.18 | -41.41 | 121.41 | 0.7329 | 624.5 | 999999 | |
| 0.36 | 4.18 | 0.26 | 3.01 | -19.06 | 149.31 | -41.28 | 120.95 | 0.7293 | 576.0 | 246.7 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -15.48 | 149.95 | -40.64 | 116.71 | 0.7049 | 298.0 | 339.5 | |
| 1.54 | 5.99 | 1.13 | 4.39 | -19.55 | 148.72 | -41.87 | 121.23 | 0.7378 | 637.9 | 492.6 | |
| 0.54 | 1.45 | 0.41 | 1.09 | -21.41 | 148.09 | -42.50 | 123.14 | 0.7535 | 578.5 | 443.4 | |
| 0.00 | 1.72 | 0.00 | 1.28 | -20.26 | 148.40 | -42.19 | 121.92 | 0.7446 | 593.0 | 516.2 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -20.06 | 148.38 | -42.21 | 121.67 | 0.7438 | 477.0 | 357.8 | |
| 1.91 | 33.77 | 1.42 | 25.24 | -20.41 | 148.04 | -42.55 | 121.91 | 0.7489 | 558.8 | -13.8 | |
| 0.00 | 4.63 | 0.00 | 3.50 | -21.43 | 147.68 | -42.91 | 122.94 | 0.7575 | 632.0 | 440.8 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -13.20 | 148.75 | -41.84 | 113.09 | 0.7083 | 528.0 | 408.4 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -18.71 | 146.97 | -43.62 | 119.28 | 0.7514 | 360.0 | 345.1 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -18.82 | 146.66 | -43.93 | 119.27 | 0.7550 | 453.0 | 358.2 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -20.84 | 145.90 | -44.69 | 121.32 | 0.7717 | -662.0 | -544.1 | |
| 0.00 | 3.99 | 0.00 | 3.07 | -20.27 | 146.07 | -44.52 | 120.72 | 0.7674 | -728.0 | -677.6 | |
| 0.00 | 2.72 | 0.00 | 2.07 | -19.33 | 146.40 | -44.19 | 119.76 | 0.7599 | 443.0 | 341.9 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -16.05 | 147.28 | -43.31 | 116.12 | 0.7365 | 476.0 | 324.0 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -20.52 | 145.79 | -44.80 | 120.88 | 0.7712 | -647.0 | -513.4 | |
| 0.00 | 2.45 | 0.00 | 1.90 | -20.25 | 145.70 | -44.89 | 120.53 | 0.7708 | -807.0 | -742.3 | |
| 0.00 | 2.63 | 0.00 | 2.05 | -20.50 | 145.52 | -45.07 | 120.73 | 0.7737 | -704.0 | -553.0 | |
| 0.00 | 5.90 | 0.00 | 4.61 | -20.27 | 145.28 | -45.31 | 120.35 | 0.7750 | -474.0 | -622.6 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -19.80 | 145.41 | -45.18 | 119.85 | 0.7717 | -743.0 | -599.2 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -20.12 | 144.97 | -45.62 | 120.02 | 0.7773 | -668.0 | -560.7 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -13.93 | 146.69 | -43.90 | 113.14 | 0.7341 | 286.0 | 308.2 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -19.94 | 144.76 | -45.83 | 119.70 | 0.7785 | -517.0 | -469.5 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -22.06 | 143.65 | -46.94 | 121.66 | 0.7977 | -536.0 | -480.3 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -18.41 | 144.94 | -45.65 | 117.95 | 0.7704 | -555.0 | -567.8 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -20.61 | 143.98 | -46.61 | 120.12 | 0.7887 | -586.0 | -500.2 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -18.12 | 144.80 | -45.79 | 117.54 | 0.7705 | -525.0 | -509.2 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -20.76 | 143.58 | -47.01 | 120.12 | 0.7930 | -405.0 | -401.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -18.96 | 140.74 | -49.85 | 116.81 | 0.8122 | -516.0 | -501.7 | |
| 0.00 | 3.00 | 0.00 | 2.54 | -18.71 | 140.49 | -50.10 | 116.43 | 0.8136 | -96.0 | -171.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
