SDO HMI 2014-07-10 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.80 | 50.65 | 23.66 | 80.91 | 14.56 | 262.29 | 72.26 | 284.06 | 0.9514 | -341.2 | -113.7 | |
|
previous
or next observation for the same group /

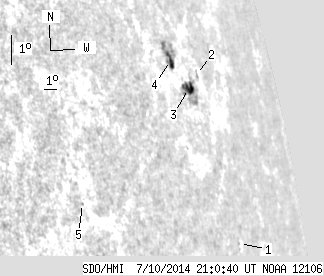

back to the solar disc SDO HMI 2014-07-10 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.84 | 9.25 | 264.95 | 74.92 | 278.53 | 0.9648 | -184.0 | -160.6 | |
| 0.00 | 2.54 | 0.00 | 4.45 | 14.59 | 264.00 | 73.96 | 284.07 | 0.9601 | 21.0 | -19.6 | |
| 8.99 | 24.69 | 14.69 | 40.55 | 14.22 | 262.78 | 72.75 | 283.70 | 0.9542 | -386.7 | -105.4 | |
| 5.81 | 22.06 | 8.97 | 34.11 | 15.18 | 261.69 | 71.66 | 284.71 | 0.9485 | -402.6 | -154.9 | |
| 0.00 | 0.91 | 0.00 | 0.96 | 11.28 | 252.36 | 62.32 | 280.71 | 0.8858 | 360.0 | 346.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
