SDO HMI 2014-07-10 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 241.00 | 1418.82 | 143.45 | 839.78 | -7.96 | 221.33 | 31.30 | 249.17 | 0.5525 | 828.4 | 338.4 | |
|
previous
or next observation for the same group /

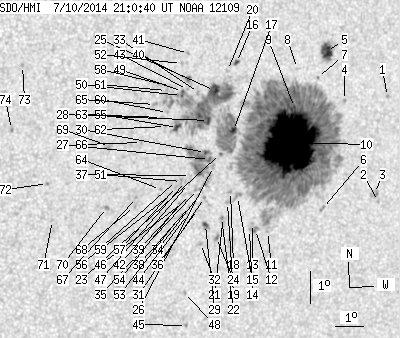

back to the solar disc SDO HMI 2014-07-10 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.62 | -6.73 | 225.35 | 35.32 | 253.33 | 0.6015 | 599.0 | 504.6 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -10.00 | 225.35 | 35.31 | 248.19 | 0.6154 | 620.0 | 532.6 | |
| 0.00 | 6.72 | 0.00 | 4.20 | -9.74 | 225.17 | 35.13 | 248.49 | 0.6118 | 702.0 | 594.1 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -6.79 | 223.75 | 33.72 | 252.48 | 0.5802 | -139.0 | -188.8 | |
| 11.35 | 18.97 | 6.79 | 11.36 | -5.24 | 222.98 | 32.95 | 254.73 | 0.5636 | 824.4 | 462.2 | |
| 0.00 | 2.81 | 0.00 | 1.72 | -10.14 | 223.26 | 33.23 | 246.78 | 0.5892 | -588.0 | -452.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -6.04 | 222.70 | 32.67 | 253.23 | 0.5628 | -691.0 | -670.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -5.73 | 221.96 | 31.92 | 253.39 | 0.5512 | 674.0 | 425.5 | |
| 0.27 | 1236.61 | 0.16 | 733.45 | -6.94 | 221.93 | 31.90 | 251.29 | 0.5559 | 1095.7 | 392.7 | |
| 205.87 | -9.00 | 122.93 | -9.00 | -8.02 | 221.87 | 31.84 | 249.41 | 0.5602 | 1532.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.78 | 221.32 | 31.28 | 244.47 | 0.5674 | -542.0 | -385.6 | |
| 0.00 | 3.00 | 0.00 | 1.79 | -10.70 | 220.87 | 30.84 | 244.29 | 0.5612 | -162.0 | -2.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.51 | 220.74 | 30.71 | 244.51 | 0.5584 | 412.0 | 380.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -10.70 | 220.66 | 30.62 | 244.15 | 0.5583 | -367.0 | -283.2 | |
| 0.00 | 4.99 | 0.00 | 2.94 | -9.64 | 220.12 | 30.08 | 245.52 | 0.5450 | 872.0 | 743.4 | |
| 1.27 | 3.00 | 0.74 | 1.73 | -5.47 | 219.76 | 29.73 | 252.71 | 0.5191 | -672.9 | -522.1 | |
| 3.18 | -9.00 | 1.85 | -9.00 | -7.57 | 219.79 | 29.76 | 248.90 | 0.5294 | 1090.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -9.47 | 219.85 | 29.81 | 245.62 | 0.5405 | 852.0 | 682.8 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -9.82 | 219.78 | 29.74 | 244.98 | 0.5415 | 414.0 | 445.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -5.70 | 219.46 | 29.43 | 252.10 | 0.5158 | -612.0 | -399.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -10.44 | 219.66 | 29.63 | 243.84 | 0.5437 | 408.0 | 370.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -10.28 | 219.61 | 29.57 | 244.07 | 0.5421 | 621.0 | 771.9 | |
| 0.36 | 1.36 | 0.21 | 0.79 | -8.27 | 219.39 | 29.35 | 247.39 | 0.5276 | 905.5 | 752.6 | |
| 0.00 | 2.63 | 0.00 | 1.55 | -10.91 | 219.50 | 29.46 | 242.94 | 0.5444 | -653.0 | -615.4 | |
| 7.99 | -9.00 | 4.60 | -9.00 | -6.30 | 219.04 | 29.00 | 250.72 | 0.5126 | -127.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -8.67 | 219.17 | 29.14 | 246.53 | 0.5268 | 841.0 | 745.2 | |
| 1.09 | 56.28 | 0.63 | 32.59 | -8.45 | 219.01 | 28.98 | 246.82 | 0.5234 | 1037.3 | 415.2 | |
| 3.09 | -9.00 | 1.78 | -9.00 | -7.23 | 218.89 | 28.85 | 248.92 | 0.5151 | 1082.1 | 999999 | |
| 1.54 | 4.54 | 0.90 | 2.66 | -10.48 | 219.06 | 29.02 | 243.31 | 0.5360 | -734.5 | -592.0 | |
| 1.00 | -27.00 | 0.58 | -27.00 | -8.22 | 218.86 | 28.82 | 247.10 | 0.5200 | 1058.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -9.63 | 218.94 | 28.91 | 244.68 | 0.5293 | -628.0 | -521.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -11.08 | 218.94 | 28.91 | 242.22 | 0.5383 | -767.0 | -678.9 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -6.35 | 218.48 | 28.45 | 250.29 | 0.5049 | -652.0 | -465.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -9.56 | 218.72 | 28.69 | 244.64 | 0.5259 | -496.0 | -400.8 | |
| 0.00 | 3.27 | 0.00 | 1.90 | -9.37 | 218.67 | 28.64 | 244.93 | 0.5241 | -524.0 | -486.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -10.00 | 218.73 | 28.69 | 243.88 | 0.5287 | -497.0 | -302.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -8.92 | 218.38 | 28.35 | 245.50 | 0.5175 | -432.0 | -512.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -9.89 | 218.44 | 28.40 | 243.83 | 0.5241 | -571.0 | -434.7 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -9.52 | 218.40 | 28.37 | 244.47 | 0.5213 | -524.0 | -448.5 | |
| 0.00 | 4.18 | 0.00 | 2.38 | -5.93 | 218.11 | 28.07 | 250.84 | 0.4975 | -919.0 | -695.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -5.13 | 218.07 | 28.03 | 252.36 | 0.4932 | -706.0 | -559.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -9.17 | 218.34 | 28.30 | 245.03 | 0.5184 | -416.0 | -436.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -6.24 | 218.09 | 28.06 | 250.24 | 0.4988 | -619.0 | -520.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -10.14 | 218.39 | 28.35 | 243.36 | 0.5251 | -532.0 | -393.1 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -13.67 | 218.76 | 28.72 | 237.84 | 0.5537 | -640.0 | -528.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -9.70 | 218.28 | 28.24 | 244.05 | 0.5208 | -543.0 | -511.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -9.11 | 218.22 | 28.19 | 245.06 | 0.5165 | -530.0 | -461.1 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -12.61 | 218.55 | 28.52 | 239.36 | 0.5436 | -734.0 | -619.5 | |
| 0.54 | -9.00 | 0.31 | -9.00 | -6.30 | 217.92 | 27.89 | 250.02 | 0.4966 | -881.5 | 999999 | |
| 0.45 | -9.00 | 0.26 | -9.00 | -6.42 | 217.89 | 27.86 | 249.77 | 0.4969 | -830.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -9.10 | 218.08 | 28.05 | 244.96 | 0.5145 | -687.0 | -612.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -5.43 | 217.84 | 27.80 | 251.64 | 0.4912 | -708.0 | -573.9 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -10.17 | 218.15 | 28.11 | 243.13 | 0.5220 | -629.0 | -555.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -9.79 | 218.07 | 28.04 | 243.73 | 0.5186 | -726.0 | -594.6 | |
| 3.00 | -9.00 | 1.71 | -9.00 | -7.41 | 217.82 | 27.78 | 247.85 | 0.5010 | -670.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -9.06 | 217.91 | 27.87 | 244.89 | 0.5119 | -765.0 | -582.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -9.25 | 217.92 | 27.89 | 244.56 | 0.5132 | -713.0 | -605.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -6.13 | 217.53 | 27.50 | 250.08 | 0.4902 | -728.0 | -626.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -9.50 | 217.73 | 27.70 | 243.98 | 0.5122 | -654.0 | -537.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -6.93 | 217.44 | 27.40 | 248.48 | 0.4931 | -459.0 | -367.4 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -6.25 | 217.36 | 27.33 | 249.74 | 0.4884 | -820.0 | -519.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -7.37 | 217.40 | 27.36 | 247.62 | 0.4949 | -664.0 | -529.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -7.08 | 217.24 | 27.21 | 248.05 | 0.4911 | -607.0 | -478.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -9.33 | 217.37 | 27.34 | 243.98 | 0.5062 | -831.0 | -701.2 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -6.67 | 216.97 | 26.94 | 248.65 | 0.4851 | -866.0 | -723.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.84 | 216.60 | 26.57 | 246.12 | 0.4865 | -751.0 | -630.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -9.55 | 216.56 | 26.52 | 242.89 | 0.4967 | -881.0 | -748.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -9.83 | 216.51 | 26.48 | 242.35 | 0.4979 | -527.0 | -498.9 | |
| 0.00 | 3.36 | 0.00 | 1.89 | -7.93 | 215.51 | 25.47 | 245.05 | 0.4718 | -815.0 | -719.1 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -9.83 | 215.55 | 25.51 | 241.47 | 0.4850 | -890.0 | -737.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -10.18 | 213.74 | 23.70 | 239.02 | 0.4633 | -844.0 | -578.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.02 | 213.48 | 23.45 | 241.00 | 0.4512 | -893.0 | -730.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -5.33 | 212.45 | 22.42 | 247.79 | 0.4119 | -819.0 | -619.1 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -7.30 | 212.18 | 22.14 | 243.17 | 0.4207 | -907.0 | -812.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
