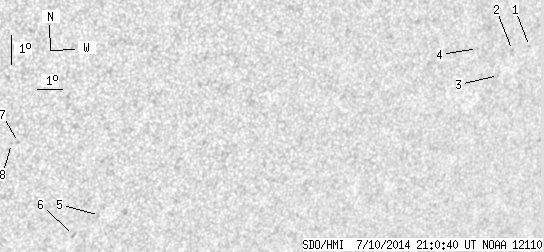

SDO HMI 2014-07-10 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.10 | 0.00 | 5.29 | -18.68 | 223.53 | 33.50 | 233.24 | 0.6480 | -549.5 | -460.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-10 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.53 | -16.46 | 233.21 | 43.18 | 243.29 | 0.7369 | -380.0 | -231.2 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -16.56 | 232.50 | 42.47 | 242.82 | 0.7298 | -485.0 | -366.9 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -17.35 | 232.11 | 42.08 | 241.62 | 0.7294 | -428.0 | -373.9 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -16.42 | 230.97 | 40.93 | 242.21 | 0.7127 | -610.0 | -503.6 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -21.37 | 217.32 | 27.29 | 225.49 | 0.6009 | -561.0 | -504.8 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -22.01 | 216.50 | 26.46 | 223.83 | 0.5987 | -606.0 | -543.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -18.83 | 213.96 | 23.92 | 225.24 | 0.5427 | -728.0 | -595.8 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -18.85 | 213.72 | 23.68 | 224.92 | 0.5404 | -598.0 | -496.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
