SDO HMI 2014-07-10 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 230.01 | 1289.42 | 188.64 | 1058.76 | -7.10 | 241.46 | 51.98 | 258.06 | 0.7998 | 121.5 | 89.4 | |
|
previous
or next observation for the same group /

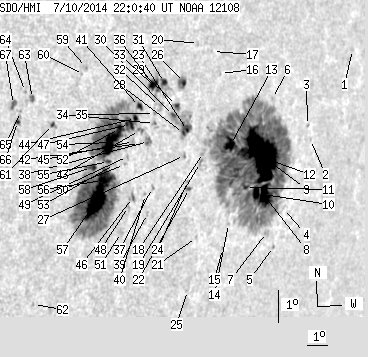

back to the solar disc SDO HMI 2014-07-10 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.53 | -4.14 | 249.00 | 59.52 | 262.94 | 0.8681 | 84.0 | 116.1 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -6.79 | 246.93 | 57.45 | 259.55 | 0.8532 | -223.0 | -250.1 | |
| 0.00 | 1.27 | 0.00 | 1.19 | -6.35 | 246.68 | 57.20 | 260.03 | 0.8503 | -225.0 | -308.9 | |
| 0.00 | 2.27 | 0.00 | 2.10 | -8.87 | 245.84 | 56.36 | 256.92 | 0.8465 | 134.0 | 91.0 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -10.04 | 245.57 | 56.09 | 255.50 | 0.8461 | -509.0 | -478.5 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -5.39 | 244.59 | 55.11 | 260.79 | 0.8294 | 203.0 | 186.9 | |
| 0.00 | 3.36 | 0.00 | 3.06 | -9.57 | 245.06 | 55.58 | 255.93 | 0.8407 | -131.0 | -92.0 | |
| 14.07 | 721.77 | 12.61 | 629.60 | -8.40 | 244.68 | 55.20 | 257.23 | 0.8351 | 538.7 | 360.6 | |
| 87.60 | -8.00 | 77.30 | -8.00 | -7.17 | 244.33 | 54.85 | 258.62 | 0.8297 | 930.7 | 999999 | |
| 6.26 | -8.00 | 5.54 | -8.00 | -8.31 | 244.23 | 54.75 | 257.24 | 0.8307 | 956.4 | 999999 | |
| 1.63 | -8.00 | 1.42 | -8.00 | -8.09 | 243.60 | 54.12 | 257.37 | 0.8242 | 897.1 | 999999 | |
| 1.63 | -8.00 | 1.40 | -8.00 | -6.92 | 243.23 | 53.75 | 258.69 | 0.8186 | 1000.7 | 999999 | |
| 12.07 | -8.00 | 10.18 | -8.00 | -6.70 | 242.57 | 53.09 | 258.82 | 0.8117 | 1014.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -9.17 | 242.93 | 53.45 | 255.92 | 0.8198 | 309.0 | 311.6 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -9.94 | 242.79 | 53.31 | 254.96 | 0.8200 | 327.0 | 305.2 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -4.46 | 241.78 | 52.30 | 261.42 | 0.8000 | -185.0 | -231.7 | |
| 0.00 | 0.64 | 0.00 | 0.52 | -3.76 | 241.31 | 51.83 | 262.21 | 0.7941 | 577.0 | 466.9 | |
| 0.00 | 3.00 | 0.00 | 2.45 | -6.87 | 241.23 | 51.75 | 258.32 | 0.7984 | 464.0 | 440.0 | |
| 0.00 | 2.54 | 0.00 | 2.08 | -7.17 | 241.13 | 51.65 | 257.93 | 0.7979 | -130.0 | -15.4 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -3.48 | 240.60 | 51.12 | 262.44 | 0.7861 | 440.0 | 370.1 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -9.52 | 241.37 | 51.89 | 255.10 | 0.8051 | 635.0 | 562.8 | |
| 0.82 | 2.27 | 0.66 | 1.84 | -7.96 | 240.71 | 51.23 | 256.86 | 0.7952 | -357.9 | -190.5 | |
| 1.63 | 40.76 | 1.31 | 32.36 | -6.14 | 240.34 | 50.86 | 259.04 | 0.7877 | 887.1 | 382.4 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -7.73 | 240.58 | 51.10 | 257.10 | 0.7933 | -343.0 | -284.7 | |
| 0.00 | 1.18 | 0.00 | 0.99 | -11.18 | 241.30 | 51.82 | 253.08 | 0.8082 | 578.0 | 452.3 | |
| 2.09 | 9.53 | 1.65 | 7.52 | -4.64 | 240.02 | 50.54 | 260.86 | 0.7817 | 537.1 | 291.3 | |
| 0.00 | 1.54 | 0.00 | 1.24 | -6.91 | 240.30 | 50.82 | 258.06 | 0.7888 | 490.0 | 482.2 | |
| 1.45 | -23.00 | 1.16 | -23.00 | -6.22 | 240.16 | 50.68 | 258.89 | 0.7859 | 787.6 | 999999 | |
| 1.45 | -23.00 | 1.14 | -23.00 | -5.34 | 239.71 | 50.23 | 259.92 | 0.7795 | -286.5 | 999999 | |
| 1.45 | -23.00 | 1.14 | -23.00 | -5.64 | 239.60 | 50.12 | 259.51 | 0.7789 | 11.8 | 999999 | |
| 3.27 | 29.68 | 2.53 | 22.90 | -4.59 | 239.06 | 49.58 | 260.73 | 0.7711 | -416.9 | -254.0 | |
| 0.00 | 5.36 | 0.00 | 4.15 | -5.32 | 238.90 | 49.42 | 259.76 | 0.7707 | -225.0 | -136.0 | |
| 1.27 | -31.00 | 0.98 | -31.00 | -4.79 | 238.75 | 49.27 | 260.41 | 0.7681 | -548.5 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.33 | -5.84 | 238.72 | 49.24 | 259.06 | 0.7697 | -342.0 | -286.2 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -5.53 | 238.68 | 49.20 | 259.45 | 0.7687 | -388.0 | -303.3 | |
| 5.81 | -31.00 | 4.45 | -31.00 | -4.63 | 238.54 | 49.06 | 260.59 | 0.7655 | -782.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.35 | -7.83 | 238.90 | 49.42 | 256.57 | 0.7758 | -269.0 | -202.9 | |
| 0.00 | 5.90 | 0.00 | 4.55 | -6.38 | 238.50 | 49.02 | 258.31 | 0.7684 | -358.0 | -325.6 | |
| 0.00 | 1.36 | 0.00 | 1.07 | -8.63 | 238.80 | 49.32 | 255.53 | 0.7766 | -344.0 | -255.3 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -8.03 | 238.60 | 49.12 | 256.23 | 0.7731 | -319.0 | -239.6 | |
| 2.81 | 398.97 | 2.14 | 296.86 | -5.27 | 237.95 | 48.47 | 259.62 | 0.7602 | -511.0 | -463.3 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -6.42 | 238.09 | 48.61 | 258.16 | 0.7639 | -191.0 | -234.0 | |
| 0.00 | 3.72 | 0.00 | 2.84 | -6.02 | 238.04 | 48.56 | 258.67 | 0.7626 | -450.0 | -389.4 | |
| 2.09 | -41.00 | 1.58 | -41.00 | -5.64 | 237.81 | 48.33 | 259.12 | 0.7592 | -538.3 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.79 | -6.35 | 237.80 | 48.32 | 258.19 | 0.7606 | -383.0 | -183.5 | |
| 0.00 | 4.63 | 0.00 | 3.56 | -8.09 | 238.00 | 48.52 | 255.99 | 0.7667 | 224.0 | -102.5 | |
| 5.90 | -41.00 | 4.45 | -41.00 | -5.81 | 237.55 | 48.07 | 258.83 | 0.7567 | -726.1 | 999999 | |
| 0.00 | 3.00 | 0.00 | 2.30 | -8.36 | 237.86 | 48.38 | 255.61 | 0.7658 | -464.0 | -275.3 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -6.80 | 237.58 | 48.10 | 257.55 | 0.7591 | -214.0 | -193.4 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -7.04 | 237.47 | 47.99 | 257.21 | 0.7585 | -243.0 | -202.9 | |
| 0.00 | 3.09 | 0.00 | 2.37 | -9.16 | 237.67 | 48.19 | 254.53 | 0.7658 | -206.0 | -163.5 | |
| 3.72 | -41.00 | 2.79 | -41.00 | -5.91 | 237.10 | 47.62 | 258.59 | 0.7519 | -781.1 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.50 | -7.02 | 237.01 | 47.53 | 257.12 | 0.7533 | -263.0 | -251.6 | |
| 26.51 | -41.00 | 19.74 | -41.00 | -6.32 | 236.74 | 47.26 | 257.96 | 0.7487 | -944.9 | 999999 | |
| 1.27 | -41.00 | 0.95 | -41.00 | -6.91 | 236.72 | 47.24 | 257.18 | 0.7498 | -732.8 | 999999 | |
| 5.81 | -41.00 | 4.33 | -41.00 | -7.49 | 236.53 | 47.05 | 256.37 | 0.7490 | -917.7 | 999999 | |
| 33.41 | -41.00 | 24.86 | -41.00 | -8.10 | 236.35 | 46.87 | 255.52 | 0.7485 | -1064.8 | 999999 | |
| 3.99 | -41.00 | 2.94 | -41.00 | -7.06 | 235.97 | 46.49 | 256.79 | 0.7417 | -931.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -3.94 | 235.44 | 45.96 | 260.83 | 0.7287 | -465.0 | -434.4 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -4.15 | 235.32 | 45.84 | 260.52 | 0.7278 | -564.0 | -578.4 | |
| 0.91 | 3.27 | 0.64 | 2.32 | -5.63 | 234.10 | 44.62 | 258.20 | 0.7164 | 610.0 | 290.5 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -11.24 | 234.09 | 44.61 | 250.65 | 0.7323 | -558.0 | -444.0 | |
| 0.00 | 3.81 | 0.00 | 2.65 | -4.78 | 233.17 | 43.69 | 259.13 | 0.7032 | -686.0 | -568.4 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -4.55 | 232.85 | 43.37 | 259.37 | 0.6988 | -680.0 | -604.3 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -5.16 | 232.69 | 43.21 | 258.47 | 0.6982 | -699.0 | -582.5 | |
| 1.09 | 4.18 | 0.75 | 2.88 | -5.47 | 232.59 | 43.11 | 258.02 | 0.6978 | -646.8 | -489.0 | |
| 0.00 | 3.72 | 0.00 | 2.55 | -4.93 | 232.38 | 42.90 | 258.71 | 0.6938 | -893.0 | -763.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
