SDO HMI 2014-07-11 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 230.60 | 1205.53 | 193.84 | 1016.49 | -7.15 | 241.52 | 53.15 | 258.24 | 0.8116 | 102.3 | 107.4 | |
|
previous
or next observation for the same group /

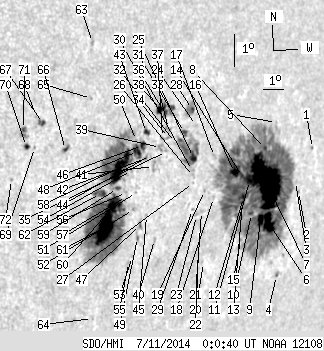

back to the solar disc SDO HMI 2014-07-11 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.97 | -6.26 | 246.78 | 58.40 | 260.33 | 0.8609 | -328.0 | -281.5 | |
| 0.00 | 1.27 | 0.00 | 1.22 | -7.55 | 246.21 | 57.84 | 258.74 | 0.8577 | 166.0 | 137.2 | |
| 0.00 | 1.63 | 0.00 | 1.55 | -7.23 | 245.97 | 57.60 | 259.07 | 0.8551 | -146.0 | -130.3 | |
| 0.45 | 1.36 | 0.43 | 1.30 | -10.13 | 245.57 | 57.19 | 255.64 | 0.8561 | -607.4 | -516.2 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -5.32 | 244.57 | 56.20 | 261.05 | 0.8397 | 256.0 | 233.3 | |
| 16.61 | 689.10 | 15.32 | 618.14 | -8.43 | 244.69 | 56.31 | 257.42 | 0.8454 | 469.5 | 354.0 | |
| 82.35 | -6.00 | 74.78 | -6.00 | -7.16 | 244.32 | 55.95 | 258.83 | 0.8400 | 852.4 | 999999 | |
| 1.54 | -6.00 | 1.39 | -6.00 | -6.10 | 244.08 | 55.71 | 260.04 | 0.8362 | 371.8 | 999999 | |
| 5.72 | -6.00 | 5.21 | -6.00 | -8.31 | 244.22 | 55.84 | 257.47 | 0.8409 | 887.6 | 999999 | |
| 1.82 | -6.00 | 1.63 | -6.00 | -8.09 | 243.68 | 55.30 | 257.61 | 0.8355 | 869.5 | 999999 | |
| 5.08 | -6.00 | 4.50 | -6.00 | -7.05 | 243.37 | 55.00 | 258.78 | 0.8309 | 1050.6 | 999999 | |
| 1.54 | -6.00 | 1.36 | -6.00 | -7.56 | 243.14 | 54.77 | 258.12 | 0.8296 | 944.7 | 999999 | |
| 1.36 | -6.00 | 1.20 | -6.00 | -7.68 | 243.11 | 54.74 | 257.97 | 0.8295 | 808.1 | 999999 | |
| 0.27 | -6.00 | 0.24 | -6.00 | -6.90 | 242.97 | 54.60 | 258.88 | 0.8268 | 878.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -8.87 | 243.25 | 54.87 | 256.59 | 0.8329 | 446.0 | 416.3 | |
| 6.17 | -6.00 | 5.35 | -6.00 | -6.75 | 242.52 | 54.15 | 258.97 | 0.8222 | 1028.9 | 999999 | |
| 0.00 | 2.45 | 0.00 | 2.06 | -6.19 | 241.39 | 53.02 | 259.42 | 0.8101 | 311.0 | 258.9 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -7.47 | 241.55 | 53.17 | 257.89 | 0.8139 | 462.0 | 468.3 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -7.22 | 241.04 | 52.67 | 258.08 | 0.8084 | -263.0 | -190.5 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -9.49 | 241.43 | 53.06 | 255.43 | 0.8166 | 572.0 | 555.0 | |
| 0.00 | 2.00 | 0.00 | 1.68 | -7.87 | 241.00 | 52.63 | 257.28 | 0.8092 | 413.0 | 392.6 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -9.06 | 241.08 | 52.71 | 255.86 | 0.8123 | -319.0 | -248.7 | |
| 0.00 | 1.36 | 0.00 | 1.14 | -7.98 | 240.77 | 52.39 | 257.09 | 0.8071 | -191.0 | -177.8 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -5.18 | 240.35 | 51.98 | 260.46 | 0.7978 | 370.0 | 334.0 | |
| 5.54 | 46.21 | 4.54 | 37.65 | -6.16 | 240.33 | 51.95 | 259.23 | 0.7992 | 859.7 | 433.5 | |
| 0.00 | 1.54 | 0.00 | 1.27 | -6.76 | 240.41 | 52.04 | 258.52 | 0.8011 | 650.0 | 601.6 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -6.94 | 240.44 | 52.07 | 258.29 | 0.8018 | 435.0 | 347.3 | |
| 1.36 | 11.53 | 1.11 | 9.33 | -4.67 | 240.10 | 51.72 | 261.04 | 0.7943 | 490.6 | 234.0 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -7.79 | 240.53 | 52.16 | 257.28 | 0.8043 | -348.0 | -271.0 | |
| 0.00 | 1.54 | 0.00 | 1.27 | -6.57 | 240.33 | 51.96 | 258.74 | 0.8000 | 322.0 | 442.6 | |
| 1.82 | -25.00 | 1.47 | -25.00 | -5.36 | 239.78 | 51.40 | 260.12 | 0.7921 | -287.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -5.65 | 239.37 | 51.00 | 259.67 | 0.7883 | 286.0 | 295.0 | |
| 0.00 | 2.63 | 0.00 | 2.09 | -5.19 | 238.98 | 50.60 | 260.16 | 0.7833 | -252.0 | -237.0 | |
| 0.00 | 1.36 | 0.00 | 1.08 | -5.47 | 239.01 | 50.63 | 259.82 | 0.7841 | 127.0 | 83.3 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -5.90 | 238.96 | 50.59 | 259.27 | 0.7844 | 145.0 | 139.5 | |
| 1.45 | 18.07 | 1.15 | 14.24 | -4.72 | 238.78 | 50.41 | 260.72 | 0.7804 | -511.8 | -406.4 | |
| 0.00 | 1.91 | 0.00 | 1.51 | -5.46 | 238.72 | 50.34 | 259.78 | 0.7810 | -427.0 | -307.2 | |
| 5.45 | -36.00 | 4.27 | -36.00 | -4.59 | 238.58 | 50.20 | 260.85 | 0.7780 | -702.8 | 999999 | |
| 0.00 | 4.09 | 0.00 | 3.23 | -5.76 | 238.66 | 50.28 | 259.38 | 0.7809 | -367.0 | -249.0 | |
| 0.00 | 1.91 | 0.00 | 1.53 | -8.62 | 238.80 | 50.42 | 255.82 | 0.7883 | -312.0 | -201.0 | |
| 0.00 | 4.45 | 0.00 | 3.50 | -6.34 | 238.39 | 50.02 | 258.59 | 0.7791 | -490.0 | -335.6 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -6.02 | 238.21 | 49.83 | 258.96 | 0.7765 | -335.0 | -326.6 | |
| 2.36 | 4.45 | 1.83 | 3.45 | -5.26 | 237.93 | 49.55 | 259.86 | 0.7721 | -514.7 | -370.4 | |
| 0.00 | 1.45 | 0.00 | 1.13 | -6.04 | 238.02 | 49.64 | 258.89 | 0.7745 | -476.0 | -390.4 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -7.85 | 238.28 | 49.90 | 256.66 | 0.7811 | -329.0 | -259.3 | |
| 3.36 | 137.91 | 2.60 | 104.89 | -5.65 | 237.78 | 49.41 | 259.32 | 0.7712 | -494.6 | -557.4 | |
| 0.00 | 3.18 | 0.00 | 2.50 | -8.11 | 238.03 | 49.66 | 256.26 | 0.7791 | -328.0 | -86.4 | |
| 6.99 | -46.00 | 5.40 | -46.00 | -5.83 | 237.57 | 49.19 | 259.05 | 0.7692 | -694.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.57 | -8.51 | 237.96 | 49.59 | 255.73 | 0.7792 | -195.0 | -154.9 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -5.48 | 237.48 | 49.11 | 259.48 | 0.7676 | -435.0 | -432.4 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -7.10 | 237.69 | 49.31 | 257.45 | 0.7731 | -398.0 | -335.0 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -7.63 | 237.62 | 49.25 | 256.77 | 0.7736 | -295.0 | -187.9 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -9.10 | 237.83 | 49.45 | 254.96 | 0.7792 | -424.0 | -346.5 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -6.40 | 237.36 | 48.98 | 258.26 | 0.7681 | -229.0 | -162.1 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -9.28 | 237.67 | 49.30 | 254.69 | 0.7779 | -476.0 | -352.8 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -7.08 | 237.21 | 48.84 | 257.37 | 0.7679 | -336.0 | -181.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -7.20 | 237.23 | 48.86 | 257.21 | 0.7684 | -237.0 | -229.0 | |
| 28.87 | -46.00 | 21.98 | -46.00 | -6.28 | 236.78 | 48.41 | 258.28 | 0.7615 | -905.0 | 999999 | |
| 1.36 | -46.00 | 1.04 | -46.00 | -6.93 | 236.77 | 48.40 | 257.44 | 0.7628 | -623.9 | 999999 | |
| 9.08 | 218.53 | 6.92 | 166.10 | -7.48 | 236.62 | 48.24 | 256.69 | 0.7623 | -803.5 | -394.2 | |
| 29.33 | -60.00 | 22.31 | -60.00 | -8.09 | 236.39 | 48.01 | 255.85 | 0.7612 | -1029.7 | 999999 | |
| 5.18 | -60.00 | 3.89 | -60.00 | -7.04 | 236.00 | 47.63 | 257.10 | 0.7545 | -896.8 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.59 | -2.35 | 235.23 | 46.85 | 263.15 | 0.7365 | -595.0 | -458.0 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -10.96 | 236.32 | 47.94 | 252.16 | 0.7680 | -353.0 | -340.9 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -4.07 | 235.28 | 46.91 | 260.85 | 0.7401 | -613.0 | -540.6 | |
| 1.45 | 3.36 | 1.05 | 2.43 | -5.59 | 234.26 | 45.88 | 258.57 | 0.7313 | 623.2 | 473.3 | |
| 1.27 | 4.45 | 0.90 | 3.15 | -4.74 | 233.22 | 44.84 | 259.47 | 0.7171 | -612.2 | -587.4 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -4.51 | 232.90 | 44.52 | 259.71 | 0.7128 | -685.0 | -583.0 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -5.46 | 232.89 | 44.52 | 258.39 | 0.7148 | -371.0 | -369.8 | |
| 1.82 | 3.45 | 1.27 | 2.42 | -5.42 | 232.55 | 44.17 | 258.36 | 0.7105 | -678.2 | -547.3 | |
| 1.00 | 6.08 | 0.70 | 4.25 | -4.88 | 232.37 | 44.00 | 259.06 | 0.7072 | -859.9 | -709.0 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -6.41 | 232.00 | 43.63 | 256.83 | 0.7065 | -604.0 | -590.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
