SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.14 | 207.47 | 46.86 | 283.86 | -19.24 | 253.76 | 65.94 | 247.61 | 0.9339 | 502.2 | 196.8 | |
|
previous
or next observation for the same group /

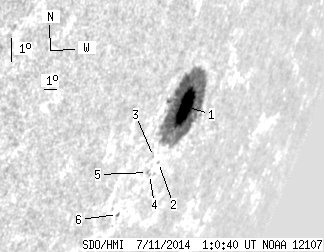

back to the solar disc SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.14 | 203.57 | 46.86 | 278.70 | -19.20 | 253.79 | 65.97 | 247.66 | 0.9340 | 526.9 | 196.9 | |
| 0.00 | 0.45 | 0.00 | 0.62 | -21.00 | 253.11 | 65.29 | 245.62 | 0.9326 | 206.0 | 137.2 | |
| 0.00 | 0.91 | 0.00 | 1.20 | -20.77 | 252.53 | 64.70 | 245.74 | 0.9289 | 520.0 | 426.3 | |
| 0.00 | 0.27 | 0.00 | 0.37 | -21.38 | 252.72 | 64.90 | 245.14 | 0.9309 | 471.0 | 392.7 | |
| 0.00 | 1.00 | 0.00 | 1.33 | -21.30 | 252.50 | 64.68 | 245.17 | 0.9295 | 451.0 | 443.7 | |
| 0.00 | 1.27 | 0.00 | 1.64 | -22.63 | 251.33 | 63.51 | 243.50 | 0.9247 | -294.0 | -199.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
