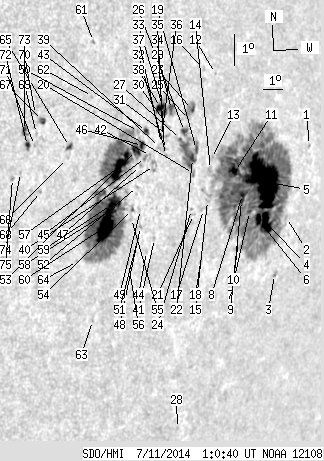

SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.46 | 1241.45 | 179.48 | 1059.00 | -7.18 | 241.49 | 53.67 | 258.31 | 0.8167 | 117.1 | 91.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.89 | -6.19 | 246.75 | 58.93 | 260.49 | 0.8654 | -207.0 | -224.6 | |
| 0.00 | 2.00 | 0.00 | 1.93 | -8.37 | 245.84 | 58.02 | 257.83 | 0.8605 | -149.0 | -149.7 | |
| 0.00 | 1.91 | 0.00 | 1.85 | -10.13 | 245.60 | 57.78 | 255.76 | 0.8612 | -494.0 | -492.9 | |
| 15.25 | 698.07 | 14.29 | 634.93 | -8.46 | 244.71 | 56.89 | 257.50 | 0.8507 | 442.9 | 346.5 | |
| 86.71 | -4.00 | 79.82 | -4.00 | -7.16 | 244.27 | 56.45 | 258.93 | 0.8446 | 826.9 | 999999 | |
| 5.08 | -4.00 | 4.70 | -4.00 | -8.33 | 244.23 | 56.41 | 257.55 | 0.8461 | 892.9 | 999999 | |
| 1.73 | -4.00 | 1.57 | -4.00 | -8.05 | 243.67 | 55.85 | 257.76 | 0.8405 | 859.7 | 999999 | |
| 2.54 | -4.00 | 2.28 | -4.00 | -7.50 | 243.18 | 55.35 | 258.32 | 0.8350 | 968.2 | 999999 | |
| 1.45 | -4.00 | 1.30 | -4.00 | -7.68 | 243.16 | 55.33 | 258.09 | 0.8351 | 713.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.80 | -8.90 | 243.25 | 55.43 | 256.68 | 0.8381 | 465.0 | 334.1 | |
| 4.99 | -4.00 | 4.39 | -4.00 | -6.75 | 242.61 | 54.79 | 259.09 | 0.8284 | 975.5 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -3.65 | 241.22 | 53.40 | 262.59 | 0.8101 | 317.0 | 310.1 | |
| 0.00 | 2.18 | 0.00 | 1.85 | -6.28 | 241.32 | 53.50 | 259.41 | 0.8151 | 274.0 | 281.7 | |
| 0.00 | 2.54 | 0.00 | 2.16 | -6.62 | 241.32 | 53.50 | 258.99 | 0.8156 | 439.0 | 411.7 | |
| 0.00 | 1.82 | 0.00 | 1.55 | -7.58 | 241.33 | 53.51 | 257.83 | 0.8174 | 119.0 | 179.7 | |
| 0.00 | 1.54 | 0.00 | 1.28 | -3.50 | 240.65 | 52.83 | 262.69 | 0.8040 | 469.0 | 389.2 | |
| 0.00 | 2.91 | 0.00 | 2.48 | -7.85 | 241.17 | 53.35 | 257.47 | 0.8163 | 422.0 | 426.8 | |
| 0.00 | 1.63 | 0.00 | 1.41 | -9.48 | 241.35 | 53.53 | 255.55 | 0.8212 | 490.0 | 492.2 | |
| 1.82 | 47.13 | 1.51 | 38.89 | -5.95 | 240.51 | 52.68 | 259.64 | 0.8063 | 551.8 | 466.6 | |
| 0.00 | 2.27 | 0.00 | 1.90 | -6.69 | 240.46 | 52.64 | 258.72 | 0.8071 | 690.0 | 574.6 | |
| 0.00 | 1.45 | 0.00 | 1.23 | -7.97 | 240.68 | 52.85 | 257.21 | 0.8117 | -315.0 | -219.6 | |
| 3.27 | -19.00 | 2.72 | -19.00 | -6.22 | 240.34 | 52.52 | 259.27 | 0.8051 | 891.4 | 999999 | |
| 1.73 | 10.17 | 1.42 | 8.35 | -4.70 | 240.15 | 52.33 | 261.11 | 0.8007 | 459.2 | 279.1 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -7.81 | 240.55 | 52.72 | 257.37 | 0.8100 | -336.0 | -282.1 | |
| 0.00 | 0.73 | 0.00 | 0.60 | -5.00 | 240.03 | 52.21 | 260.72 | 0.7999 | 267.0 | 218.8 | |
| 2.36 | -19.00 | 1.93 | -19.00 | -5.36 | 239.82 | 52.00 | 260.23 | 0.7983 | -240.0 | 999999 | |
| 0.54 | -19.00 | 0.44 | -19.00 | -5.60 | 239.65 | 51.83 | 259.91 | 0.7970 | 68.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.22 | -14.77 | 241.68 | 53.86 | 249.41 | 0.8362 | 129.0 | 133.2 | |
| 0.00 | 6.63 | 0.00 | 5.33 | -4.64 | 239.10 | 51.28 | 260.99 | 0.7896 | -366.0 | -212.5 | |
| 0.00 | 1.91 | 0.00 | 1.53 | -5.16 | 239.01 | 51.19 | 260.32 | 0.7895 | -262.0 | -248.6 | |
| 0.00 | 1.73 | 0.00 | 1.39 | -5.44 | 238.99 | 51.17 | 259.97 | 0.7898 | 81.0 | 35.7 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -6.05 | 239.02 | 51.20 | 259.20 | 0.7911 | -195.0 | -107.9 | |
| 1.63 | 13.53 | 1.30 | 10.76 | -4.71 | 238.77 | 50.94 | 260.83 | 0.7861 | -489.8 | -413.3 | |
| 0.00 | 2.00 | 0.00 | 1.61 | -5.86 | 238.90 | 51.07 | 259.42 | 0.7895 | 160.0 | 126.9 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -5.17 | 238.72 | 50.89 | 260.24 | 0.7864 | -474.0 | -354.7 | |
| 0.00 | 1.63 | 0.00 | 1.31 | -5.42 | 238.70 | 50.87 | 259.93 | 0.7866 | -359.0 | -291.4 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -5.67 | 238.73 | 50.90 | 259.62 | 0.7874 | -173.0 | -181.4 | |
| 4.81 | -33.00 | 3.82 | -33.00 | -4.55 | 238.55 | 50.73 | 261.00 | 0.7836 | -664.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.16 | -5.79 | 238.64 | 50.82 | 259.46 | 0.7867 | -363.0 | -269.2 | |
| 0.00 | 5.36 | 0.00 | 4.27 | -6.33 | 238.47 | 50.65 | 258.73 | 0.7859 | -211.0 | -257.3 | |
| 0.00 | 2.09 | 0.00 | 1.69 | -8.62 | 238.84 | 51.01 | 255.97 | 0.7944 | -304.0 | -165.5 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -6.01 | 238.23 | 50.41 | 259.09 | 0.7828 | -373.0 | -309.1 | |
| 1.73 | 3.72 | 1.36 | 2.92 | -5.26 | 237.95 | 50.13 | 259.98 | 0.7783 | -530.1 | -389.5 | |
| 0.00 | 1.45 | 0.00 | 1.17 | -9.01 | 238.52 | 50.69 | 255.41 | 0.7919 | -101.0 | -107.8 | |
| 0.00 | 2.45 | 0.00 | 1.93 | -6.06 | 238.00 | 50.18 | 258.97 | 0.7803 | -523.0 | -393.0 | |
| 2.91 | 147.37 | 2.28 | 113.43 | -5.68 | 237.81 | 49.99 | 259.41 | 0.7776 | -480.8 | -528.0 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -6.30 | 237.79 | 49.97 | 258.63 | 0.7785 | -316.0 | -288.8 | |
| 0.00 | 1.27 | 0.00 | 1.01 | -8.20 | 238.08 | 50.26 | 256.29 | 0.7856 | -84.0 | -28.3 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -7.67 | 237.99 | 50.17 | 256.94 | 0.7835 | 302.0 | 280.3 | |
| 0.00 | 1.82 | 0.00 | 1.41 | -5.23 | 237.57 | 49.74 | 259.93 | 0.7741 | -567.0 | -516.2 | |
| 0.00 | 1.27 | 0.00 | 1.01 | -8.60 | 238.00 | 50.18 | 255.77 | 0.7857 | -322.0 | -273.8 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -6.94 | 237.73 | 49.91 | 257.79 | 0.7792 | -472.0 | -288.6 | |
| 6.45 | -46.00 | 5.03 | -46.00 | -5.82 | 237.54 | 49.72 | 259.17 | 0.7749 | -694.4 | 999999 | |
| 0.45 | 2.09 | 0.36 | 1.64 | -7.65 | 237.60 | 49.78 | 256.87 | 0.7793 | -249.4 | -193.9 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -7.93 | 237.60 | 49.78 | 256.52 | 0.7799 | 282.0 | 121.5 | |
| 0.00 | 1.54 | 0.00 | 1.23 | -9.34 | 237.71 | 49.88 | 254.78 | 0.7843 | -446.0 | -313.4 | |
| 24.97 | -46.00 | 19.23 | -46.00 | -6.27 | 236.79 | 48.97 | 258.42 | 0.7676 | -891.2 | 999999 | |
| 0.27 | 220.92 | 0.21 | 169.82 | -7.46 | 236.95 | 49.13 | 256.95 | 0.7720 | -524.7 | -413.9 | |
| 4.27 | -58.00 | 3.29 | -58.00 | -7.44 | 236.57 | 48.75 | 256.87 | 0.7678 | -864.5 | 999999 | |
| 28.69 | -58.00 | 22.08 | -58.00 | -8.11 | 236.40 | 48.58 | 255.97 | 0.7674 | -985.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -2.35 | 235.26 | 47.44 | 263.26 | 0.7434 | -602.0 | -520.2 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -4.04 | 235.32 | 47.50 | 261.01 | 0.7468 | -648.0 | -537.0 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -11.05 | 236.35 | 48.53 | 252.23 | 0.7744 | -470.0 | -356.2 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -9.14 | 235.27 | 47.45 | 254.32 | 0.7577 | -552.0 | -457.7 | |
| 1.63 | 3.54 | 1.20 | 2.60 | -5.53 | 234.41 | 46.59 | 258.82 | 0.7394 | 601.9 | 467.8 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -5.90 | 234.36 | 46.54 | 258.32 | 0.7396 | -115.0 | -234.5 | |
| 0.00 | 4.36 | 0.00 | 3.11 | -4.67 | 233.14 | 45.32 | 259.68 | 0.7226 | -688.0 | -612.7 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -6.87 | 233.28 | 45.46 | 256.73 | 0.7293 | -597.0 | -507.6 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -5.05 | 232.91 | 45.09 | 259.09 | 0.7207 | -437.0 | -454.4 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -4.46 | 232.82 | 45.00 | 259.88 | 0.7184 | -618.0 | -578.5 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -5.42 | 232.86 | 45.04 | 258.58 | 0.7209 | -422.0 | -346.9 | |
| 2.18 | 4.90 | 1.54 | 3.47 | -5.41 | 232.55 | 44.73 | 258.52 | 0.7173 | -708.2 | -445.9 | |
| 2.00 | 5.36 | 1.41 | 3.78 | -4.94 | 232.38 | 44.56 | 259.12 | 0.7141 | -825.9 | -688.8 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -6.23 | 232.33 | 44.51 | 257.33 | 0.7166 | -546.0 | -534.9 | |
| 0.00 | 2.18 | 0.00 | 1.53 | -6.40 | 232.01 | 44.19 | 257.00 | 0.7131 | -675.0 | -499.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
