SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 214.47 | 1330.59 | 131.16 | 807.03 | -7.98 | 221.13 | 33.31 | 250.25 | 0.5799 | 777.0 | 343.3 | |
|
previous
or next observation for the same group /

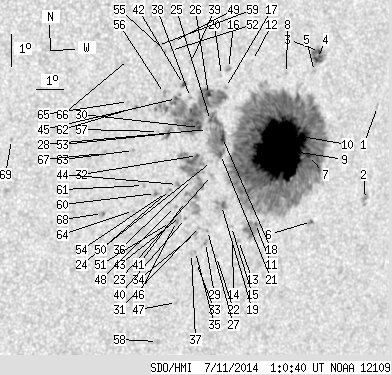

back to the solar disc SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.04 | -6.87 | 225.49 | 37.67 | 254.08 | 0.6331 | 448.0 | 377.1 | |
| 0.00 | 5.81 | 0.00 | 3.75 | -9.76 | 225.35 | 37.52 | 249.66 | 0.6425 | 698.0 | 574.1 | |
| 1.36 | 16.71 | 0.84 | 10.28 | -5.07 | 223.14 | 35.31 | 255.99 | 0.5957 | 812.2 | 685.3 | |
| 3.81 | -3.00 | 2.35 | -3.00 | -5.28 | 223.08 | 35.25 | 255.61 | 0.5955 | 850.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.45 | -5.68 | 222.99 | 35.17 | 254.93 | 0.5957 | -277.0 | -153.0 | |
| 0.64 | 2.72 | 0.40 | 1.72 | -10.36 | 223.34 | 35.52 | 247.72 | 0.6198 | -552.7 | -555.3 | |
| 2.36 | 911.72 | 1.47 | 558.17 | -8.29 | 222.99 | 35.16 | 250.75 | 0.6059 | 133.4 | 426.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -5.70 | 221.95 | 34.12 | 254.44 | 0.5816 | 683.0 | 457.1 | |
| 190.59 | -7.00 | 116.78 | -7.00 | -8.05 | 221.91 | 34.09 | 250.56 | 0.5907 | 1351.2 | 999999 | |
| 1.09 | -7.00 | 0.66 | -7.00 | -7.40 | 221.08 | 33.25 | 251.20 | 0.5766 | 1572.6 | 999999 | |
| 0.36 | 15.98 | 0.22 | 9.80 | -10.34 | 221.23 | 33.41 | 246.53 | 0.5927 | 891.2 | 489.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -5.25 | 220.67 | 32.84 | 254.63 | 0.5622 | -476.0 | -475.7 | |
| 0.00 | 1.82 | 0.00 | 1.11 | -10.85 | 220.66 | 32.84 | 245.36 | 0.5881 | -427.0 | -243.6 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -10.81 | 220.43 | 32.61 | 245.28 | 0.5849 | -328.0 | -217.7 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -10.40 | 220.35 | 32.52 | 245.88 | 0.5816 | -419.0 | -324.1 | |
| 0.00 | 3.18 | 0.00 | 1.88 | -5.46 | 219.81 | 31.98 | 253.85 | 0.5511 | -576.0 | -425.8 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -6.05 | 219.74 | 31.91 | 252.79 | 0.5524 | 154.0 | 144.6 | |
| 4.27 | 214.29 | 2.55 | 126.34 | -7.60 | 219.74 | 31.92 | 250.13 | 0.5594 | 959.1 | 287.6 | |
| 0.00 | 9.72 | 0.00 | 5.86 | -9.72 | 219.91 | 32.08 | 246.69 | 0.5722 | 819.0 | 642.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -5.67 | 219.57 | 31.74 | 253.37 | 0.5485 | -582.0 | -428.5 | |
| 1.82 | -18.00 | 1.09 | -18.00 | -8.12 | 219.71 | 31.89 | 249.22 | 0.5615 | 1113.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -11.33 | 219.91 | 32.08 | 244.12 | 0.5811 | -604.0 | -441.2 | |
| 0.00 | 3.45 | 0.00 | 2.06 | -8.77 | 219.44 | 31.62 | 247.98 | 0.5611 | 891.0 | 696.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -8.33 | 219.40 | 31.58 | 248.69 | 0.5583 | 820.0 | 659.2 | |
| 0.82 | -18.00 | 0.48 | -18.00 | -7.05 | 219.26 | 31.44 | 250.79 | 0.5503 | 869.1 | 999999 | |
| 1.82 | -18.00 | 1.07 | -18.00 | -6.24 | 219.13 | 31.31 | 252.14 | 0.5449 | -365.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.49 | 219.48 | 31.66 | 245.16 | 0.5708 | 680.0 | 546.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -7.33 | 219.18 | 31.35 | 250.27 | 0.5504 | 855.0 | 687.1 | |
| 0.00 | 2.36 | 0.00 | 1.42 | -10.87 | 219.45 | 31.63 | 244.53 | 0.5725 | -522.0 | -459.2 | |
| 1.54 | -18.00 | 0.91 | -18.00 | -7.25 | 218.88 | 31.06 | 250.22 | 0.5460 | 1046.6 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -10.35 | 219.17 | 31.35 | 245.18 | 0.5660 | -330.0 | -277.2 | |
| 0.73 | 71.73 | 0.43 | 42.57 | -8.12 | 218.88 | 31.06 | 248.72 | 0.5502 | 1000.0 | 289.1 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -11.49 | 219.20 | 31.37 | 243.36 | 0.5729 | -583.0 | -450.5 | |
| 0.00 | 2.18 | 0.00 | 1.31 | -10.57 | 219.05 | 31.23 | 244.74 | 0.5657 | -781.0 | -661.2 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -11.14 | 219.12 | 31.29 | 243.87 | 0.5698 | -712.0 | -620.2 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -8.87 | 218.77 | 30.94 | 247.38 | 0.5525 | -424.0 | -322.6 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -11.20 | 218.98 | 31.16 | 243.68 | 0.5684 | -808.0 | -634.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -6.31 | 218.49 | 30.67 | 251.66 | 0.5362 | -576.0 | -442.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -5.23 | 218.43 | 30.61 | 253.58 | 0.5307 | -319.0 | -215.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -10.08 | 218.64 | 30.81 | 245.25 | 0.5574 | -511.0 | -410.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.55 | 218.58 | 30.76 | 246.11 | 0.5537 | -518.0 | -406.8 | |
| 1.27 | 2.54 | 0.74 | 1.48 | -5.90 | 218.22 | 30.40 | 252.25 | 0.5305 | -770.4 | -612.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -10.01 | 218.45 | 30.63 | 245.24 | 0.5546 | -613.0 | -397.7 | |
| 0.00 | 3.18 | 0.00 | 1.88 | -9.00 | 218.24 | 30.42 | 246.80 | 0.5462 | -667.0 | -570.5 | |
| 0.54 | -18.00 | 0.32 | -18.00 | -6.32 | 218.00 | 30.17 | 251.35 | 0.5293 | -826.8 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.78 | -10.17 | 218.32 | 30.50 | 244.89 | 0.5537 | -676.0 | -580.4 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -12.73 | 218.63 | 30.80 | 240.98 | 0.5734 | -559.0 | -513.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -9.69 | 218.24 | 30.41 | 245.63 | 0.5499 | -585.0 | -570.0 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -4.56 | 217.79 | 29.97 | 254.48 | 0.5189 | -492.0 | -386.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -9.15 | 218.00 | 30.18 | 246.38 | 0.5438 | -747.0 | -662.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -10.19 | 218.11 | 30.28 | 244.70 | 0.5511 | -653.0 | -565.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -4.83 | 217.70 | 29.88 | 253.92 | 0.5186 | -326.0 | -392.5 | |
| 1.45 | -18.00 | 0.85 | -18.00 | -7.40 | 217.79 | 29.96 | 249.29 | 0.5316 | -588.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -9.24 | 217.87 | 30.05 | 246.14 | 0.5425 | -715.0 | -596.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -4.85 | 217.53 | 29.70 | 253.79 | 0.5162 | -652.0 | -501.0 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -6.15 | 217.56 | 29.74 | 251.41 | 0.5224 | -800.0 | -669.8 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -7.33 | 217.43 | 29.60 | 249.20 | 0.5262 | -586.0 | -470.6 | |
| 0.00 | 2.72 | 0.00 | 1.65 | -13.96 | 218.10 | 30.28 | 238.67 | 0.5751 | -40.0 | -155.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -4.66 | 217.24 | 29.41 | 254.00 | 0.5112 | -737.0 | -567.2 | |
| 0.00 | 3.00 | 0.00 | 1.76 | -9.26 | 217.48 | 29.66 | 245.83 | 0.5373 | -759.0 | -618.7 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -8.99 | 217.03 | 29.21 | 245.97 | 0.5297 | -767.0 | -592.1 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -6.55 | 216.56 | 28.74 | 250.06 | 0.5102 | -718.0 | -660.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -7.89 | 216.59 | 28.76 | 247.62 | 0.5175 | -746.0 | -551.6 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -9.76 | 216.75 | 28.92 | 244.42 | 0.5305 | -639.0 | -561.3 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -6.36 | 216.31 | 28.49 | 250.25 | 0.5056 | -689.0 | -512.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -5.06 | 216.24 | 28.42 | 252.68 | 0.4985 | -583.0 | -508.2 | |
| 0.00 | 2.91 | 0.00 | 1.66 | -7.94 | 215.54 | 27.72 | 246.76 | 0.5033 | -696.0 | -582.6 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -9.82 | 215.66 | 27.84 | 243.47 | 0.5163 | -829.0 | -581.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -7.41 | 212.35 | 24.53 | 245.20 | 0.4554 | -818.0 | -644.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
