SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.23 | 129.67 | 18.49 | 71.42 | 7.96 | 162.70 | -25.12 | 79.19 | 0.4284 | -139.5 | -67.2 | |
|
previous
or next observation for the same group /

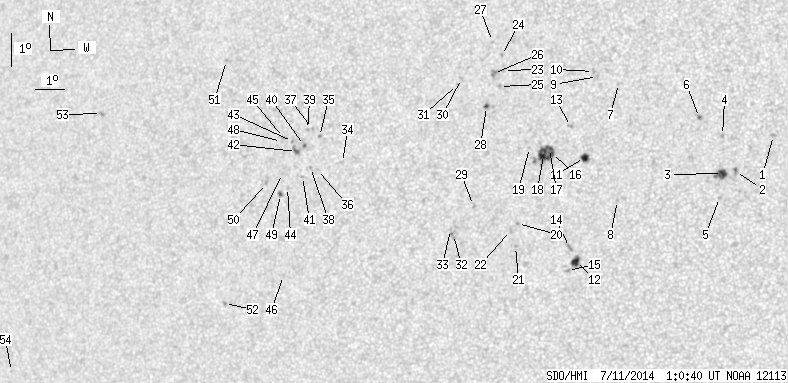

back to the solar disc SDO HMI 2014-07-11 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.13 | 9.05 | 172.00 | -15.82 | 71.15 | 0.2858 | -890.0 | -712.5 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 7.92 | 170.83 | -17.00 | 75.88 | 0.2998 | -1147.0 | -910.9 | |
| 5.36 | 8.90 | 2.79 | 4.63 | 7.86 | 170.41 | -17.41 | 76.39 | 0.3063 | -1091.9 | -801.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 9.02 | 170.36 | -17.46 | 72.76 | 0.3117 | -917.0 | -707.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 7.12 | 170.34 | -17.48 | 78.80 | 0.3052 | -785.0 | -510.1 | |
| 0.45 | 2.36 | 0.24 | 1.24 | 9.55 | 169.58 | -18.24 | 71.79 | 0.3263 | -958.8 | -756.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 10.54 | 166.86 | -20.96 | 71.21 | 0.3731 | -665.0 | -546.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.96 | 167.03 | -20.79 | 80.73 | 0.3585 | -816.0 | -623.8 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 10.74 | 166.15 | -21.68 | 71.21 | 0.3849 | -785.0 | -642.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 10.89 | 166.00 | -21.82 | 70.94 | 0.3878 | -871.0 | -649.8 | |
| 4.18 | 6.27 | 2.24 | 3.35 | 8.25 | 165.88 | -21.94 | 77.74 | 0.3801 | -925.4 | -625.2 | |
| 4.72 | 7.35 | 2.52 | 3.93 | 5.07 | 165.73 | -22.10 | 86.17 | 0.3771 | -1016.3 | -766.6 | |
| 0.00 | 2.27 | 0.00 | 1.22 | 9.18 | 165.35 | -22.47 | 75.60 | 0.3912 | 1006.0 | 765.2 | |
| 0.00 | 2.91 | 0.00 | 1.56 | 5.49 | 165.51 | -22.31 | 85.08 | 0.3809 | -621.0 | -514.5 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 4.79 | 165.47 | -22.35 | 86.94 | 0.3811 | -707.0 | -509.4 | |
| 2.54 | 25.79 | 1.37 | 13.94 | 8.34 | 164.77 | -23.05 | 77.98 | 0.3978 | -1185.3 | -681.2 | |
| 2.54 | -16.00 | 1.37 | -16.00 | 8.49 | 164.70 | -23.13 | 77.63 | 0.3994 | -905.5 | 999999 | |
| 10.08 | -16.00 | 5.45 | -16.00 | 8.30 | 164.51 | -23.32 | 78.18 | 0.4018 | -1021.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 8.51 | 164.02 | -23.80 | 77.88 | 0.4099 | -444.0 | -406.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 6.18 | 163.75 | -24.07 | 83.62 | 0.4098 | 503.0 | 339.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 5.47 | 163.71 | -24.11 | 85.35 | 0.4097 | -873.0 | -684.4 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 5.96 | 163.52 | -24.30 | 84.20 | 0.4131 | -712.0 | -586.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 10.84 | 162.96 | -24.86 | 72.94 | 0.4337 | 764.0 | 523.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 11.30 | 162.85 | -24.97 | 71.98 | 0.4371 | 863.0 | 653.0 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 10.34 | 162.87 | -24.96 | 74.10 | 0.4333 | 903.0 | 715.2 | |
| 0.00 | 3.72 | 0.00 | 2.05 | 10.74 | 162.63 | -25.19 | 73.35 | 0.4384 | 989.0 | 764.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 11.72 | 162.50 | -25.32 | 71.25 | 0.4440 | 673.0 | 474.1 | |
| 1.36 | 2.45 | 0.75 | 1.35 | 9.72 | 162.47 | -25.35 | 75.70 | 0.4373 | -765.7 | -536.6 | |
| 0.00 | 1.91 | 0.00 | 1.05 | 6.68 | 162.23 | -25.59 | 82.70 | 0.4342 | -700.0 | -607.2 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 10.55 | 161.54 | -26.28 | 74.28 | 0.4540 | 749.0 | 538.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 10.37 | 161.42 | -26.40 | 74.75 | 0.4552 | 681.0 | 568.7 | |
| 0.00 | 3.27 | 0.00 | 1.81 | 5.78 | 161.60 | -26.22 | 84.87 | 0.4432 | -427.0 | -661.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 5.93 | 161.49 | -26.33 | 84.54 | 0.4451 | -555.0 | -444.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 7.86 | 157.60 | -30.23 | 81.12 | 0.5067 | -525.0 | -421.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 8.62 | 156.71 | -31.12 | 79.82 | 0.5211 | 925.0 | 815.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 7.61 | 156.72 | -31.10 | 81.76 | 0.5194 | 149.0 | 125.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 8.86 | 156.43 | -31.39 | 79.43 | 0.5256 | 822.0 | 637.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 7.67 | 156.46 | -31.36 | 81.70 | 0.5232 | 662.0 | 530.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 8.82 | 156.25 | -31.57 | 79.54 | 0.5281 | 707.0 | 537.9 | |
| 0.64 | 2.81 | 0.37 | 1.64 | 8.33 | 156.19 | -31.63 | 80.49 | 0.5282 | 998.7 | 640.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 7.38 | 156.20 | -31.63 | 82.28 | 0.5268 | 708.0 | 555.4 | |
| 1.36 | 4.63 | 0.80 | 2.71 | 8.14 | 155.92 | -31.91 | 80.90 | 0.5319 | 985.5 | 747.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 8.44 | 155.74 | -32.08 | 80.37 | 0.5349 | 831.0 | 675.6 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 7.03 | 155.68 | -32.14 | 83.02 | 0.5340 | 646.0 | 420.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 8.55 | 155.41 | -32.42 | 80.24 | 0.5400 | 923.0 | 713.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 4.34 | 155.70 | -32.12 | 88.08 | 0.5326 | 680.0 | 510.4 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 7.45 | 155.47 | -32.36 | 82.26 | 0.5376 | 645.0 | 514.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 8.42 | 155.34 | -32.48 | 80.48 | 0.5407 | 664.0 | 488.7 | |
| 1.00 | 2.27 | 0.59 | 1.33 | 6.81 | 155.44 | -32.38 | 83.47 | 0.5373 | 832.0 | 661.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 7.12 | 154.91 | -32.91 | 82.94 | 0.5454 | 720.0 | 576.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 10.83 | 153.03 | -34.79 | 76.72 | 0.5780 | 689.0 | 592.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 3.41 | 153.58 | -34.24 | 89.70 | 0.5638 | 681.0 | 607.6 | |
| 0.00 | 2.27 | 0.00 | 1.46 | 9.01 | 148.40 | -39.42 | 80.57 | 0.6380 | 668.0 | 548.6 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 0.99 | 145.34 | -42.49 | 92.81 | 0.6784 | 560.0 | 480.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
