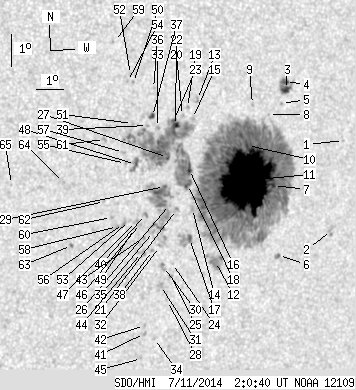

SDO HMI 2014-07-11 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 245.80 | 1318.36 | 151.35 | 805.23 | -7.95 | 221.17 | 33.90 | 250.61 | 0.5878 | 804.6 | 316.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.53 | -6.95 | 225.50 | 38.22 | 254.17 | 0.6406 | 578.0 | 454.0 | |
| 0.00 | 4.45 | 0.00 | 2.89 | -9.75 | 225.34 | 38.07 | 249.93 | 0.6493 | 690.0 | 568.8 | |
| 4.18 | 15.89 | 2.59 | 9.85 | -5.27 | 223.13 | 35.86 | 255.86 | 0.6037 | 845.6 | 653.6 | |
| 2.36 | -3.00 | 1.46 | -3.00 | -5.03 | 223.11 | 35.84 | 256.25 | 0.6027 | 863.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -5.70 | 223.01 | 35.73 | 255.12 | 0.6035 | -393.0 | -354.8 | |
| 0.54 | 2.91 | 0.35 | 1.84 | -10.45 | 223.38 | 36.10 | 247.90 | 0.6277 | -632.3 | -581.5 | |
| 2.09 | 921.08 | 1.31 | 567.89 | -8.24 | 222.92 | 35.65 | 251.05 | 0.6121 | 291.3 | 387.3 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -6.02 | 222.54 | 35.27 | 254.41 | 0.5983 | -519.0 | -536.7 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -5.69 | 221.91 | 34.64 | 254.69 | 0.5887 | 478.0 | 349.5 | |
| 1.27 | -7.00 | 0.78 | -7.00 | -6.95 | 221.82 | 34.55 | 252.57 | 0.5922 | 848.6 | 999999 | |
| 218.94 | -7.00 | 135.05 | -7.00 | -8.04 | 221.88 | 34.61 | 250.85 | 0.5976 | 1301.2 | 999999 | |
| 0.00 | 16.62 | 0.00 | 10.25 | -10.54 | 221.00 | 33.73 | 246.41 | 0.5979 | 488.0 | 456.4 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -5.45 | 219.87 | 32.60 | 254.16 | 0.5596 | -446.0 | -448.1 | |
| 0.00 | 3.27 | 0.00 | 1.98 | -8.84 | 219.96 | 32.69 | 248.50 | 0.5757 | 453.0 | 378.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -6.03 | 219.73 | 32.46 | 253.09 | 0.5599 | 65.0 | 99.5 | |
| 3.81 | 197.51 | 2.29 | 117.18 | -7.61 | 219.74 | 32.47 | 250.40 | 0.5669 | 928.5 | 332.1 | |
| 1.63 | 13.71 | 0.99 | 8.31 | -9.77 | 219.95 | 32.67 | 246.97 | 0.5803 | 872.8 | 481.7 | |
| 2.72 | -16.00 | 1.64 | -16.00 | -8.08 | 219.70 | 32.43 | 249.61 | 0.5686 | 1098.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -5.68 | 219.52 | 32.25 | 253.59 | 0.5557 | -503.0 | -448.1 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -5.93 | 219.36 | 32.09 | 253.08 | 0.5544 | -288.0 | -263.8 | |
| 0.00 | 2.09 | 0.00 | 1.25 | -8.84 | 219.37 | 32.10 | 248.14 | 0.5680 | 851.0 | 645.9 | |
| 3.54 | -16.00 | 2.10 | -16.00 | -6.23 | 219.12 | 31.85 | 252.44 | 0.5524 | -287.5 | 999999 | |
| 1.45 | -16.00 | 0.86 | -16.00 | -6.07 | 219.04 | 31.77 | 252.67 | 0.5505 | -517.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -10.54 | 219.41 | 32.14 | 245.40 | 0.5773 | 565.0 | 423.6 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -10.95 | 219.42 | 32.15 | 244.75 | 0.5798 | -669.0 | -555.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -8.68 | 219.10 | 31.83 | 248.25 | 0.5635 | 765.0 | 714.6 | |
| 1.09 | -16.00 | 0.65 | -16.00 | -7.21 | 218.91 | 31.63 | 250.62 | 0.5537 | 1041.9 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -11.70 | 219.37 | 32.10 | 243.52 | 0.5834 | -467.0 | -383.8 | |
| 0.73 | 59.66 | 0.43 | 35.57 | -8.11 | 218.87 | 31.60 | 249.06 | 0.5575 | 1040.2 | 313.3 | |
| 0.00 | 4.00 | 0.00 | 2.41 | -10.62 | 219.09 | 31.82 | 245.05 | 0.5736 | -699.0 | -577.1 | |
| 0.00 | 3.36 | 0.00 | 2.03 | -11.22 | 219.05 | 31.78 | 244.07 | 0.5765 | -732.0 | -618.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -9.98 | 218.87 | 31.60 | 245.94 | 0.5673 | -172.0 | -210.0 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -6.26 | 218.48 | 31.21 | 252.03 | 0.5435 | -596.0 | -431.7 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -12.89 | 219.05 | 31.78 | 241.45 | 0.5866 | -534.0 | -453.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -9.50 | 218.60 | 31.33 | 246.56 | 0.5611 | -410.0 | -425.7 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -5.05 | 218.26 | 30.99 | 254.08 | 0.5354 | -642.0 | -478.2 | |
| 1.45 | 3.18 | 0.85 | 1.87 | -5.92 | 218.28 | 31.00 | 252.54 | 0.5392 | -762.9 | -647.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -10.10 | 218.63 | 31.36 | 245.59 | 0.5647 | -489.0 | -404.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -6.19 | 218.11 | 30.84 | 251.96 | 0.5381 | -677.0 | -468.7 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -8.96 | 218.26 | 30.99 | 247.24 | 0.5536 | -705.0 | -560.6 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -12.72 | 218.66 | 31.39 | 241.43 | 0.5806 | -587.0 | -562.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -12.46 | 218.62 | 31.35 | 241.80 | 0.5786 | -637.0 | -541.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -9.68 | 218.26 | 30.99 | 246.04 | 0.5575 | -527.0 | -496.7 | |
| 0.00 | 5.45 | 0.00 | 3.25 | -10.15 | 218.24 | 30.96 | 245.24 | 0.5598 | -692.0 | -535.5 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -13.52 | 218.66 | 31.39 | 240.20 | 0.5857 | -630.0 | -557.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -9.23 | 218.11 | 30.84 | 246.68 | 0.5531 | -404.0 | -482.4 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -9.17 | 217.96 | 30.68 | 246.69 | 0.5507 | -723.0 | -653.3 | |
| 0.00 | 8.35 | 0.00 | 4.91 | -7.38 | 217.77 | 30.50 | 249.65 | 0.5389 | -601.0 | -505.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -9.38 | 217.91 | 30.63 | 246.29 | 0.5512 | -467.0 | -479.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -4.84 | 217.54 | 30.27 | 254.10 | 0.5243 | -672.0 | -534.6 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -6.11 | 217.57 | 30.30 | 251.81 | 0.5302 | -707.0 | -598.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -4.59 | 217.42 | 30.15 | 254.50 | 0.5216 | -607.0 | -525.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.13 | 217.70 | 30.43 | 246.59 | 0.5470 | -578.0 | -546.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -4.80 | 217.33 | 30.05 | 254.06 | 0.5210 | -729.0 | -591.5 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -7.34 | 217.41 | 30.14 | 249.50 | 0.5337 | -595.0 | -438.4 | |
| 0.00 | 3.00 | 0.00 | 1.77 | -9.21 | 217.49 | 30.22 | 246.30 | 0.5447 | -752.0 | -645.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -6.99 | 217.31 | 30.04 | 250.05 | 0.5307 | -648.0 | -558.3 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -9.30 | 217.29 | 30.02 | 246.01 | 0.5424 | -812.0 | -663.6 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -3.55 | 216.82 | 29.54 | 256.16 | 0.5089 | -532.0 | -545.9 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -9.01 | 217.05 | 29.78 | 246.34 | 0.5376 | -726.0 | -605.4 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -6.57 | 216.61 | 29.34 | 250.40 | 0.5188 | -787.0 | -630.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -8.50 | 216.75 | 29.48 | 247.02 | 0.5308 | -659.0 | -515.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -9.84 | 215.71 | 28.43 | 243.91 | 0.5244 | -847.0 | -730.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -7.85 | 215.26 | 27.99 | 247.12 | 0.5066 | -675.0 | -509.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.86 | 213.46 | 26.19 | 245.72 | 0.4816 | -606.0 | -506.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
