SDO HMI 2014-07-11 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.31 | 179.37 | 18.92 | 93.24 | 5.87 | 204.61 | 17.33 | 277.37 | 0.3004 | -357.2 | -274.6 | |
|
previous
or next observation for the same group /

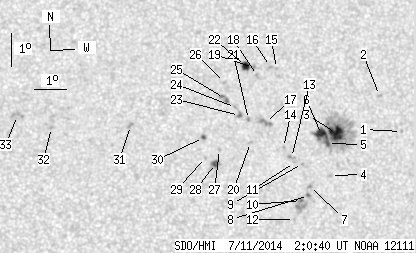

back to the solar disc SDO HMI 2014-07-11 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 5.88 | 208.18 | 20.91 | 276.19 | 0.3586 | 778.0 | 654.1 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 6.99 | 207.51 | 20.23 | 279.54 | 0.3496 | -801.0 | -600.6 | |
| 14.71 | 97.53 | 7.70 | 51.05 | 5.87 | 206.06 | 18.79 | 276.67 | 0.3240 | -1127.7 | -441.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 4.59 | 205.82 | 18.55 | 272.74 | 0.3189 | -897.0 | -680.5 | |
| 1.73 | -3.00 | 0.90 | -3.00 | 5.57 | 205.76 | 18.49 | 275.82 | 0.3186 | -904.4 | 999999 | |
| 9.99 | -3.00 | 5.21 | -3.00 | 5.85 | 205.57 | 18.30 | 276.75 | 0.3159 | -1170.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 4.27 | 205.14 | 17.87 | 271.75 | 0.3075 | -1015.0 | -819.5 | |
| 0.45 | 1.45 | 0.24 | 0.76 | 4.00 | 205.10 | 17.83 | 270.85 | 0.3068 | -907.4 | -751.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 4.98 | 204.93 | 17.66 | 274.08 | 0.3044 | -711.0 | -582.9 | |
| 0.45 | 12.26 | 0.24 | 6.37 | 3.85 | 204.87 | 17.60 | 270.36 | 0.3030 | -1011.2 | -798.4 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 5.01 | 204.68 | 17.41 | 274.24 | 0.3001 | -768.0 | -547.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 3.28 | 204.64 | 17.37 | 268.42 | 0.2994 | -174.0 | -168.5 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 5.17 | 204.59 | 17.32 | 274.77 | 0.2988 | -930.0 | -813.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 5.48 | 204.34 | 17.07 | 275.88 | 0.2950 | -829.0 | -659.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 7.89 | 204.21 | 16.93 | 284.03 | 0.2987 | -733.0 | -571.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 7.96 | 204.02 | 16.74 | 284.38 | 0.2958 | -766.0 | -609.7 | |
| 0.00 | 6.27 | 0.00 | 3.24 | 6.25 | 203.79 | 16.52 | 278.73 | 0.2872 | -863.0 | -813.4 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 7.69 | 203.59 | 16.31 | 283.80 | 0.2879 | 770.0 | 539.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 7.94 | 203.47 | 16.20 | 284.73 | 0.2869 | 780.0 | 573.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 5.65 | 203.29 | 16.02 | 276.80 | 0.2778 | -851.0 | -690.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 6.35 | 203.25 | 15.98 | 279.34 | 0.2785 | -939.0 | -675.2 | |
| 4.99 | 6.81 | 2.58 | 3.52 | 7.97 | 203.21 | 15.94 | 285.06 | 0.2829 | 982.1 | 697.3 | |
| 0.54 | 3.18 | 0.28 | 1.64 | 6.48 | 202.97 | 15.69 | 279.94 | 0.2741 | -1034.0 | -760.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 6.73 | 202.85 | 15.58 | 280.91 | 0.2728 | -436.0 | -255.7 | |
| 0.00 | 5.27 | 0.00 | 2.71 | 7.01 | 202.51 | 15.24 | 282.15 | 0.2680 | 745.0 | 709.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 7.50 | 202.52 | 15.25 | 283.93 | 0.2699 | 752.0 | 543.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 5.46 | 202.30 | 15.03 | 276.42 | 0.2609 | 772.0 | 591.4 | |
| 2.72 | 6.90 | 1.40 | 3.54 | 5.03 | 202.16 | 14.89 | 274.83 | 0.2580 | 986.4 | 743.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 5.22 | 201.85 | 14.58 | 275.65 | 0.2530 | 742.0 | 580.5 | |
| 0.73 | 1.73 | 0.37 | 0.88 | 5.83 | 201.80 | 14.53 | 278.08 | 0.2532 | 916.8 | 848.3 | |
| 0.00 | 2.82 | 0.00 | 1.43 | 6.24 | 199.52 | 12.24 | 281.24 | 0.2159 | 924.0 | 716.9 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 6.21 | 197.05 | 9.78 | 283.61 | 0.1744 | 1039.0 | 748.1 | |
| 0.00 | 4.63 | 0.00 | 2.32 | 6.59 | 196.00 | 8.73 | 287.41 | 0.1587 | 779.0 | 777.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
