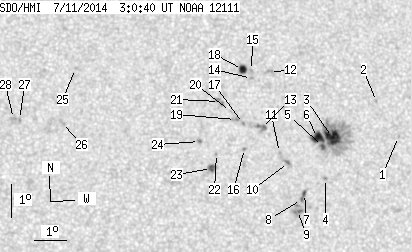

SDO HMI 2014-07-11 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.05 | 154.39 | 17.80 | 80.53 | 5.89 | 204.66 | 17.93 | 277.26 | 0.3103 | -354.7 | -316.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-11 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 5.84 | 208.22 | 21.50 | 275.95 | 0.3681 | 678.0 | 518.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 6.92 | 207.54 | 20.82 | 279.12 | 0.3589 | -752.0 | -628.3 | |
| 15.26 | 87.73 | 8.01 | 46.08 | 5.86 | 206.06 | 19.34 | 276.50 | 0.3330 | -1119.8 | -434.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 4.62 | 205.79 | 19.07 | 272.76 | 0.3275 | -836.0 | -710.3 | |
| 1.54 | -3.00 | 0.81 | -3.00 | 5.59 | 205.73 | 19.01 | 275.77 | 0.3272 | -961.5 | 999999 | |
| 8.63 | -3.00 | 4.52 | -3.00 | 5.87 | 205.58 | 18.85 | 276.66 | 0.3250 | -1152.0 | 999999 | |
| 1.00 | 5.18 | 0.52 | 2.70 | 4.18 | 205.10 | 18.38 | 271.41 | 0.3160 | -891.7 | -650.4 | |
| 0.54 | -7.00 | 0.28 | -7.00 | 3.99 | 205.00 | 18.28 | 270.83 | 0.3143 | -846.3 | 999999 | |
| 0.00 | 8.90 | 0.00 | 4.64 | 3.66 | 204.87 | 18.14 | 269.76 | 0.3121 | -1038.0 | -853.0 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 5.13 | 204.62 | 17.89 | 274.53 | 0.3083 | -1026.0 | -805.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 5.44 | 204.34 | 17.61 | 275.61 | 0.3040 | -840.0 | -690.9 | |
| 0.00 | 4.36 | 0.00 | 2.27 | 7.89 | 204.11 | 17.38 | 283.69 | 0.3059 | -419.0 | -555.1 | |
| 0.00 | 6.18 | 0.00 | 3.20 | 6.22 | 203.78 | 17.06 | 278.36 | 0.2961 | -843.0 | -816.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 7.72 | 203.52 | 16.80 | 283.53 | 0.2958 | 771.0 | 635.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 7.96 | 203.53 | 16.81 | 284.34 | 0.2969 | 701.0 | 582.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 5.59 | 203.22 | 16.50 | 276.40 | 0.2856 | -890.0 | -768.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 6.35 | 203.21 | 16.49 | 279.07 | 0.2869 | -1008.0 | -838.5 | |
| 4.54 | 6.27 | 2.35 | 3.25 | 8.00 | 203.24 | 16.52 | 284.67 | 0.2924 | 1000.9 | 749.8 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 6.48 | 202.96 | 16.24 | 279.63 | 0.2830 | -1027.0 | -848.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 6.72 | 202.81 | 16.09 | 280.58 | 0.2812 | -206.0 | -313.0 | |
| 0.00 | 3.81 | 0.00 | 1.97 | 7.04 | 202.47 | 15.75 | 281.89 | 0.2765 | 541.0 | 791.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 5.45 | 202.32 | 15.60 | 276.20 | 0.2705 | 702.0 | 557.4 | |
| 2.54 | 5.09 | 1.31 | 2.61 | 5.00 | 202.15 | 15.43 | 274.55 | 0.2670 | 965.5 | 778.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 5.83 | 201.79 | 15.07 | 277.81 | 0.2622 | 1066.0 | 862.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.12 | 197.95 | 11.23 | 291.10 | 0.2075 | 750.0 | 498.2 | |
| 0.00 | 3.00 | 0.00 | 1.51 | 6.48 | 197.50 | 10.78 | 283.80 | 0.1922 | 747.0 | 647.7 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 6.59 | 196.16 | 9.44 | 286.18 | 0.1704 | 791.0 | 642.2 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 6.62 | 195.98 | 9.25 | 286.66 | 0.1675 | 905.0 | 771.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
