SDO HMI 2014-07-11 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.68 | 132.49 | 21.31 | 72.31 | 7.74 | 162.58 | -24.15 | 79.56 | 0.4130 | -290.2 | -78.6 | |
|
previous
or next observation for the same group /

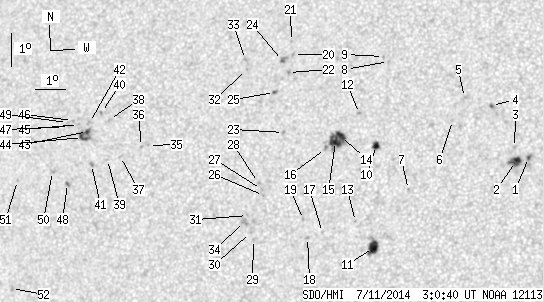

back to the solar disc SDO HMI 2014-07-11 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.73 | 2.63 | 0.37 | 1.36 | 7.93 | 170.88 | -15.85 | 75.04 | 0.2812 | -1095.6 | -805.4 | |
| 5.90 | 9.35 | 3.05 | 4.84 | 7.80 | 170.47 | -16.26 | 75.80 | 0.2873 | -1086.3 | -775.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 8.23 | 170.42 | -16.31 | 74.40 | 0.2898 | -837.0 | -590.6 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 9.50 | 169.62 | -17.10 | 70.99 | 0.3082 | -1064.0 | -893.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.72 | 168.73 | -17.99 | 71.10 | 0.3232 | -620.0 | -488.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 9.01 | 168.38 | -18.34 | 73.51 | 0.3256 | -838.0 | -683.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 6.88 | 167.05 | -19.68 | 80.60 | 0.3403 | -813.0 | -650.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 10.77 | 166.17 | -20.55 | 70.31 | 0.3679 | -840.0 | -711.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 10.92 | 165.99 | -20.73 | 70.06 | 0.3713 | -727.0 | -638.6 | |
| 3.27 | 4.81 | 1.74 | 2.56 | 8.20 | 165.93 | -20.79 | 77.36 | 0.3616 | -912.5 | -689.7 | |
| 8.81 | 14.89 | 4.67 | 7.89 | 5.08 | 165.97 | -20.75 | 86.03 | 0.3553 | -1045.2 | -517.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 9.16 | 165.32 | -21.41 | 75.11 | 0.3744 | 788.0 | 703.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 5.86 | 165.35 | -21.37 | 83.96 | 0.3661 | -646.0 | -524.1 | |
| 5.45 | 22.70 | 2.92 | 12.17 | 8.44 | 164.73 | -21.99 | 77.29 | 0.3814 | -1062.4 | -735.0 | |
| 9.17 | -14.00 | 4.92 | -14.00 | 8.29 | 164.57 | -22.15 | 77.76 | 0.3834 | -1053.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 8.06 | 164.25 | -22.47 | 78.47 | 0.3879 | -727.0 | -615.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 5.50 | 164.27 | -22.45 | 85.11 | 0.3831 | -662.0 | -466.2 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 5.33 | 163.78 | -22.94 | 85.60 | 0.3909 | -969.0 | -681.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 5.88 | 163.63 | -23.10 | 84.23 | 0.3938 | -780.0 | -646.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 10.91 | 162.98 | -23.75 | 72.16 | 0.4171 | 810.0 | 684.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 11.31 | 162.87 | -23.85 | 71.31 | 0.4203 | 846.0 | 652.3 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 10.36 | 162.85 | -23.87 | 73.53 | 0.4169 | 863.0 | 723.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 8.52 | 162.82 | -23.91 | 77.92 | 0.4116 | -790.0 | -577.4 | |
| 0.54 | 4.27 | 0.30 | 2.33 | 10.72 | 162.62 | -24.11 | 72.82 | 0.4218 | 935.8 | 764.4 | |
| 0.64 | 2.18 | 0.35 | 1.19 | 9.73 | 162.42 | -24.30 | 75.22 | 0.4212 | -750.4 | -531.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 6.58 | 162.25 | -24.47 | 82.76 | 0.4165 | -813.0 | -667.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.76 | 162.18 | -24.55 | 82.35 | 0.4180 | -607.0 | -485.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 6.97 | 162.06 | -24.66 | 81.87 | 0.4201 | -694.0 | -610.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 5.23 | 161.98 | -24.74 | 86.04 | 0.4196 | -718.0 | -585.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 5.44 | 161.87 | -24.85 | 85.55 | 0.4214 | -794.0 | -631.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 5.95 | 161.74 | -24.98 | 84.34 | 0.4238 | -699.0 | -599.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 10.41 | 161.41 | -25.31 | 74.16 | 0.4389 | 754.0 | 601.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 10.72 | 161.35 | -25.37 | 73.51 | 0.4409 | 800.0 | 637.2 | |
| 0.00 | 4.45 | 0.00 | 2.43 | 5.77 | 161.65 | -25.07 | 84.79 | 0.4251 | -776.0 | -640.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 7.99 | 158.21 | -28.51 | 80.52 | 0.4812 | -706.0 | -582.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 7.95 | 157.97 | -28.75 | 80.65 | 0.4848 | -726.0 | -587.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 7.62 | 157.25 | -29.47 | 81.47 | 0.4950 | -151.0 | -148.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 8.74 | 156.77 | -29.95 | 79.35 | 0.5041 | 787.0 | 588.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 7.51 | 156.80 | -29.92 | 81.77 | 0.5017 | 170.0 | 191.8 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 8.94 | 156.47 | -30.25 | 79.02 | 0.5090 | 840.0 | 690.0 | |
| 0.00 | 1.91 | 0.00 | 1.10 | 7.34 | 156.24 | -30.48 | 82.20 | 0.5098 | 969.0 | 694.1 | |
| 0.00 | 2.63 | 0.00 | 1.52 | 8.62 | 156.07 | -30.65 | 79.74 | 0.5143 | 884.0 | 694.3 | |
| 1.54 | 11.62 | 0.89 | 6.71 | 8.34 | 156.02 | -30.70 | 80.29 | 0.5145 | 1151.4 | 755.5 | |
| 3.09 | -43.00 | 1.78 | -43.00 | 8.15 | 155.86 | -30.87 | 80.69 | 0.5166 | 945.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 8.55 | 155.68 | -31.04 | 79.97 | 0.5199 | 762.0 | 708.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 8.66 | 155.45 | -31.27 | 79.80 | 0.5234 | 717.0 | 608.3 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 8.47 | 155.36 | -31.36 | 80.18 | 0.5245 | 687.0 | 642.7 | |
| 0.54 | 2.00 | 0.32 | 1.16 | 6.73 | 155.43 | -31.29 | 83.50 | 0.5212 | 894.8 | 709.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 8.59 | 155.28 | -31.45 | 79.97 | 0.5259 | 524.0 | 420.5 | |
| 0.00 | 2.18 | 0.00 | 1.27 | 7.08 | 154.86 | -31.86 | 82.91 | 0.5299 | 720.0 | 635.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 6.76 | 153.61 | -33.11 | 83.65 | 0.5480 | 583.0 | 492.9 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 3.46 | 153.58 | -33.15 | 89.69 | 0.5479 | 724.0 | 604.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
